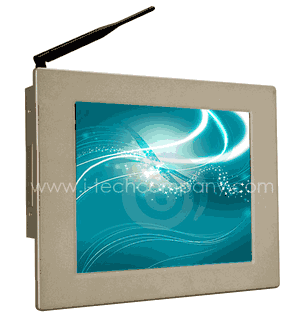

Intel Core 2 Duo/Core Duo/Core Solo/Celeron M Panel PC with 10.4" TFT LCD and Touchscreen (Model: PPC-3710G/9452)

Features
	1. 10.4" LCD with ultra slim design panel PC 2. High computing compatible with Intel® CoreTM2 DuoTM /CoreTM Duo /CoreTM Solo and Intel® Celeron® M 3. Dual Gigabit Ethernet support 4. PCIe 802.11b/g wireless LAN module (optional) 5. Built-in Compact Flash socket 6. Aluminum die casting front panel with IP 65 standard

Specifications

LCD	Resolution : 800X600 Brightness : 400cd/m2 Contrast Ratio : 500:1 Viewing Angle (H-V): 100/120 Backlight MTBF : 50,000 hrs
LCD Size	10.4" TFT LCD
LCD Color	262K
Pixel Pitch	0.264(H) x 0.264(V)
SBC Model	NANO-9452 (Socket 479)
Construction Front Panel	Aluminum
Construction Chasis	Heavy-duty Steel
Mounting	VESA 100 x 100 stand//rack/wall/panel/arm mounting supported
Display	VGA and dual-channel 18/24-bit LVDS integrated in the IntelR 945GM
Wireless LAN (optional)	PCIe Mini Card Module with 2dB Antenna
Touch Controller	ETP4000RCG02 control board, COM interface(COM4)
Memory	One 200-pin 2 (max.) 400/533/667 MHz DDR 2 SO-DIMM socket
CPU	IntelR Core?2 Duo/Core? Duo/Core? Solo with a 667 MHz FSB or 533 MHz IntelR CeleronR M (Yonah)
Chipset	IntelR 945GM + ICH7
SSD	One CF Type II socket
Drive Bay	HDD Drive Bay :1 x 2.5" HDD Bay with with anti-shock FDD Drive Bay :N / A CD-ROM Drive Bay :N/A
I/O	2 x RS-232, 1 x RS-232/422/485, 2 x USB Port, 1 x VGA, 2 x Giga LAN Port, 3 x Audio, 1 x PS/2
Expansion Slot	N / A
Touch Screen	resistive type 5-Wire with RS-232 Interface
Power Supply	84W Power adaptor: 63000-FSP0841ADC11-RS
Operating Temp	-10ºC ~50ºC
Net / Gross Weight	3.4 kg / 5.8 kg
Certificate	Meets CE / EMC / FCC / CB / CCC
Dimension	311.5 x 242 x 77.8 mm
Front Panel Protection	IP 65
Color	Silver (PANTONE 8001C)

Ordering Information

Part No.	Description
PPC-3710GHS/NANO-9452-CM440/T-R/1GB	10.4" 400 cd/m² SVGA TFT Panel PC with NANO-9452,1.86 GHz Intel® Celeron® M,Silver color and Touch screen,w/ 1GB DDR2 RAM,RoHS
PPC-3710GHS/NANO-9452-CM440/WT-R/1GB	10.4" 400 cd/m² SVGA TFT Panel PC with NANO-9452,1.86 GHz Intel® Celeron® M,Silver color and Touch screen,802.11 b/g module,w/ 1GB DDR2 RAM,RoHS
PPC-3710GHS/NANO-9452-T2300E/T-R/1GB	10.4" 400 cd/m² SVGA TFT Panel PC with NANO-9452,1.66 GHz Intel® Core™ Duo,Silver color and Touch screen,w/ 1GB DDR2 RAM,RoHS
PPC-3710GHS/NANO-9452-T2300E/WT-R/1GB	10.4" 400 cd/m² SVGA TFT Panel PC with NANO-9452,1.66 GHz Intel® Core™ Duo,Silver color and Touch screen,802.11b/g,w/ 1GB DDR2 RAM,RoHS

Packing List

1 * Screw Kit	1 * Wall Mounting Kit
1 * Power Cord	1 * HDD SATA Cable
1 * Jumper Pack	1 * CD-ROM SATA Cable
1 * Panel Mounting Kit	1 * CD-ROM Installation Kit
1 * Touch Screen Driver CD/Touch Pen	1 * User Manual & Driver CD
