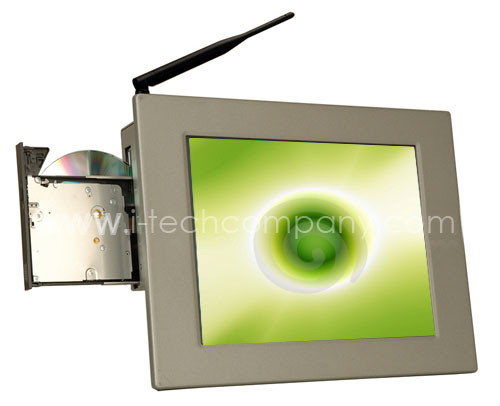

Intel® Core 2 Duo/Core Duo/Core Solo/Celeron® M Panel PC with 12.1" TFT LCD and Touchscreen (Model: PPC-3712G/9452)

Features
	1. 12.1" LCD with ultra slim design panel PC 2. High computing compatible with Intel® CoreTM2 DuoTM /CoreTM Duo /CoreTM Solo and Intel® Celeron® M 3. Dual Gigabit Ethernet support 4. PCIe 802.11b/g wireless LAN module (optional) 5. Built-in Compact Flash socket 6. Aluminum die casting front panel with IP 65 standard

Specifications

LCD Size	12.1”
LCD Color	262K
Pixel Pitch	0.240(H) x 0.240(V)
SBC Model	NANO-9452
Construction Front Panel	Aluminum
Construction Chasis	Heavy-duty Steel
Mounting	Panel, Wall, Rack, Stand and Arm VESA 100mm x 100mm
Resolution	1024(W) x 768(H)
Contrast Ratio	700:1
Brightness (cd/m²)	450
Viewing Angle	160/160
Backlight MTBF	50,000
RAM	Supports one 400/533/667 MHz DDRII SODIMM (1GB Max.)
CPU	Socket M Intel® Core™2 Duo, Core Duo, Core Solo with 667MHz FSB Intel® Celeron® M 533MHz FSB
Chipset	Intel 945GM + ICH7M
SSD	CF Type II
Drive Bay	1 x 2.5” SATA HDD bay with anti-shook
Audio	AC’ 97 2.3 Realtek ALC 655
Ethernet	Dual PCIe Broadcom BCM5787M GbE chipsets with ASF2.0 remote control support
I/O	2 x RS232 COM Port 1 x RS-232/422/485 Port 2 x RJ-45 for LAN Port 2 x USB 2.0 1 x VGA Port 1 x Audio (Line-in, Line-out, MIC-in) 1 x PS/2 (KB/MS) 1 x 12VDC input Power Jack 1 x Power Switch
Expansion Slot	1 x Wireless Lan 802.11 b/g Module (internal Mini PCIe interface)
Touch Screen	Resistive Type 5-Wire with RS-232 interface
Power Supply	Power Adapter - P/N: 63000-FSP0841ADC11118-RS - 84W Power Adapter - Input: 90VAC~264VAC, 50/60Hz - Output: 12VDC
Operating Temp	-10ºC ~50ºC
Storage Temp	-20ºC ~60ºC
Vibration	5~17Hz, 0.1” double amplitude displacement, 17~640Hz, 1.5G acceleration peak to peak
Shock	10G acceleration part to part (11ms)
Net / Gross Weight	6 Kg / 8 Kg
Certificate	Meets CE, FCC
Dimension	340 x 260 x 73.4 mm
Front Panel Protection	IP65 Compliant

Ordering Information

Part No.	Description
PPC-3712GXS/NANO-9452-CM440/T-R/1GB-R11	12.1" 450 cd/m² XGA TFT Panel PC with NANO-9452,1.86 GHz Intel® Celeron® M,Silver color and Touch screen,w/ 1GB DDR2 RAM,RoHS
PPC-3712GXS/NANO-9452-CM440/WT-R/1GB-R11	12.1" 450 cd/m² XGA TFT Panel PC with NANO-9452,1.86 GHz Intel® Celeron® M,Silver color and Touch screen,802.11 b/g module,w/ 1GB DDR2 RAM,RoHS
PPC-3712GXS/NANO-9452-T2300E/T-R/1GB-R11	12.1" 450 cd/m²; XGA TFT Panel PC with NANO-9452,1.66 GHz Intel® Core™ Duo,Silver color and Touch screen,w/ 1GB DDR2 RAM,RoHS
PPC-3712GXS/NANO-9452-T2300E/WT-R/1GB-R11	12.1" 450 cd/m²; XGA TFT Panel PC with NANO-9452,1.66 GHz Intel® Core™ Duo,Silver color and Touch screen,802.11b/g,w/ 1GB DDR2 RAM,RoHS

Packing List

1 * Screw Kit	1 * Wall Mounting Kit
1 * Power Cord	1 * HDD SATA Cable
1 * Jumper Pack	1 * CD-ROM SATA Cable
1 * Panel Mounting Kit	1 * CD-ROM Installation Kit
1 * Touch Screen Driver CD/Touch Pen	1 * User Manual & Driver CD
