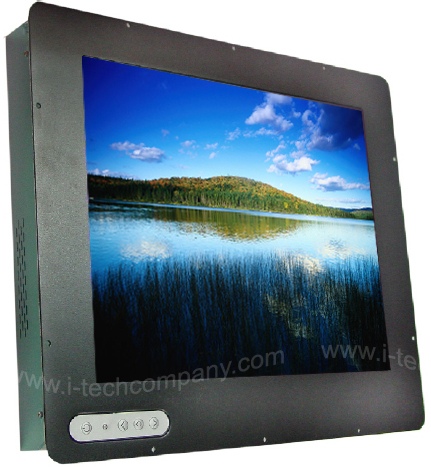

High Brightness Chassis LCD Monitor (1200 nits) w/ VGA, S-Video, AV (Model: LCHH1701)

This Sunlight Readable High brightness LCD product specification that specifies form, fit, and function of the 17" Daylight Readable Monitor LCD and its options. The LCHH1701 is a product of high bright Chassis LCD monitors intended for use in a variety of industrial and commercial applications. Some of these applications include automatic teller machines (ATMs), fuel dispensing systems, ticketing and information kiosks, and intelligent vending machines. The High Brightness LCD panel for LCHH1701 has a particularly fast response time of 16.2ms and consequently very well suited for video applications.

The LCHH1701 is a 17" active matrix TFT LCD with a native resolution of 1280 x 1024 It has a typical luminance of 1200 nits. The video interface is through a standard 15-pin analog input with an integrated On-Screen Display (OSD). This sheet-metal external housing is intended for industrial applications where the Sunlight Viewable LCD Monitor's product is integrated into a larger host system. Commercial applications would most likely require an additional external façade. This Sun Light Readable LCD product includes packaging designed to withstand standard shipping conditions.
