WMRM919HB

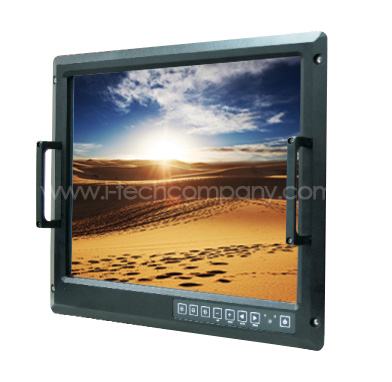

19" 9U High Brightness Ruggedized Rackmount Military LCD w/ 15 pin D-Sub, 5 x BNCs, DVI-D and RS232 (Model: WMRM919HB)

19" 9U High Brightness Ruggedized Rackmount Military LCD w/ 15 pin D-Sub, 5 x BNCs, DVI-D and RS232 (Model: WMRM919HB)

Inquiry/Quote Request
WMRM919HB
  • Overview
  • Download
Product discontinues. Contact us at Info@iTechLCD.com for replacement item.

Features:
* Anti-Corrosion Housing / Fanless
* Compliant with MIL-STD-810F
* Flush Rack / Rack Mount Mechanical Design
* Convenient On-Screen Display Controls
* AC built-in Power input / Isolation DC 24V Power input (Optional)
* Auto-Dimming and Dimming Controls
* Military Grade Power Connector Model JY27466
* Standard AR Glass
* EMI ITO Glass (Optional)
* 5-wire Resistive Touch with EMI Mesh Coating (Optional)


Specifications:
Display Specification
Viewable Size Image 19"
Active Display Area(mm) 376.32(H)x301.06(V)
Pixel Pitch(mm) 0.294(H)x0.294(V)
Number of Pixels 1280x1024
Contrast Ratio 1000:1(typ.)
Display Color 16.7M(Colors)
Brightness(cd/m˛) 1000(typ.)
Viewing Angle(CR>=10) -85~85(H);-80~80(V)
Synchronization Range
Horizontal/Vertical		 31.5~80.0KHz/60~75Hz
Recommended Resolution 1280x1024@60Hz, 75Hz
Signal Connector 15 pin D-Sub,
5 x BNCs, DVI-D, RS232
Power Source AC100~240V, Universal,±10%
DC 24V, ±10%(optional)
Power Consumption 41W typical, normal operation
Power Management VESA DPMS Compliant
Plug & Play VESA DDC 1/2B
Optional Touch Screen Resistive

Environmental Specifications
Vibration MIL-STD-810F Method 514.5
Humidity MIL-STD-810F Method 507.4
Transit Drop MIL-STD-810F Method 516.5
High Temperature Storage:MIL-STD-810F Method501.4
Operation:MIL-STD-810F Method501.4
Low Temperature Storage:MIL-STD-810F Method502.4
Operation:MIL-STD-810F Method502.4
*The weight information is for reference purpose.The actual weight will vary according to then options you choose,for example,the touch/glass option.

*All product specifications are subject to change without notice.
