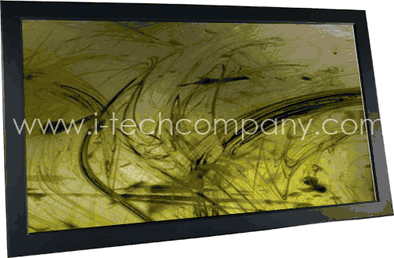

Widescreen Sunlight Readable LCD 47" Chassis Mount Monitor (600nits) Display. (WCHHW4700L1)
- Overview
- Download
Widescreen Sunlight Readable LCD 47" Chassis Mount Monitor (600nits) Display. (WCHHW4700L1)
X
Inquiry/Quote Request
| Specifications | |
| Model Name | WCHHW4700L1 |
| Viewable Size lmage | 47"(16:9) |
| Active Display Area (mm) | 1039.68(H) x 584.82(V) |
| Number of Pixels | 1920 x 1080 |
| Pixel Pitch(mm) | 0.5415 x 0.5415 |
| Display Color | 16.7M(8bit/colors) |
| Contrast Ratio | 1000:1 (typ.) |
| Brightness (nit) | 600(typ.) |
| Viewing Angle (CR >=10) | -89~89(H);-89~89(V) |
| Synchronization Range Horizontal / Vertical |
31.5~60KHz/60~75Hz |
| Recommended Resolution | 1920x1080@60Hz |
| Signal Connector | 15 pin D-sub |
| Power Soruce | AC 100~240 V, Universal, 10% |
| Power Consumption | 220W typical, normal operation |
| Power Management | VESA DPMS Compliant |
| Optional Video Input | S-Video/Composite |
| Plug & Play | VESA DDC 1/2B |
| Optional DVI Input | Yes |
| Optional Touch Screen | No |
| Optional protection glass (reflection rate<0.5%) | Optional |
| Operation Temperature | 0° C~50° C |
Outdoor readability
| Ambient light(nit) | Brightness measure Angle | 10,000 | 30,000 | 80,000 |
| Brightness gain(BL0n)(nit) | 35° | 600 | 780 | 1130 |
| Reflectance(net)(%) | 1.00% | 0.90% | 0.70% |
| Remarks: | WCHHW4700L1 = VGA Input only |
| WCHHW4700L1AV = VGA+Video Input |
