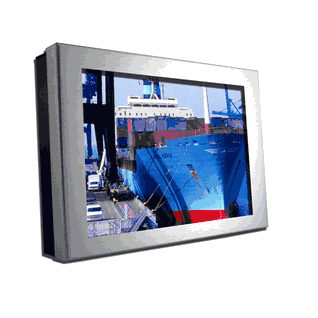

12.1" Chassis Mount LCD w/ VGA, AV (Model iDP-1200A-AV)

12.1" Chassis Mount LCD with Anodizing Aluminum Front Bezel w/ VGA, Optional AV inputs, Touch Screen in Chassis Mount 12.1" LCD display (Model iDP-1200A-AV)

12.1" Chassis Mount LCD with Anodizing Aluminum Front Bezel w/ VGA, Optional AV inputs, Touch Screen in Chassis Mount 12.1" LCD display (Model iDP-1200A-AV)

Inquiry/Quote Request
iDP-1200A-AV
  • Overview
  • Download

Product discontinues. Contact us at Info@iTechLCD.com to find out more information.

LCD Type LG Grade A industrial TFT LCD Panel
Display Size 12.1 inch diagonal (246.0H x 184.5V)
Resolution 800 x 600, SVGA
Display Color 262,144 color
Brightness 300 cd/m2
Contrast Ratio 200 : 1 (Typical)
Pixel Pitch 0.3075 x 0.3075 mm
Viewing Angle 60 / 60 / 40 / 55 (L / R / U / D)
OSD Control , Brightness, Contrast, Phase & Clock, Color, H & V position, Auto-tune & Recall
VGA Connector  D-Sub 15 pin VGA analog
Video Input S-Video and Composite
LCD MTBF 50,000 hrs
Mounting Panel, wall-mount or VESA arm
Dimension 288.8(W) x 230.6(H) x 54(D) mm
Weight  3 kg (Net) / 4 kg (Gross)
Packing 555(L) x 470(W) x 90(D) mm
