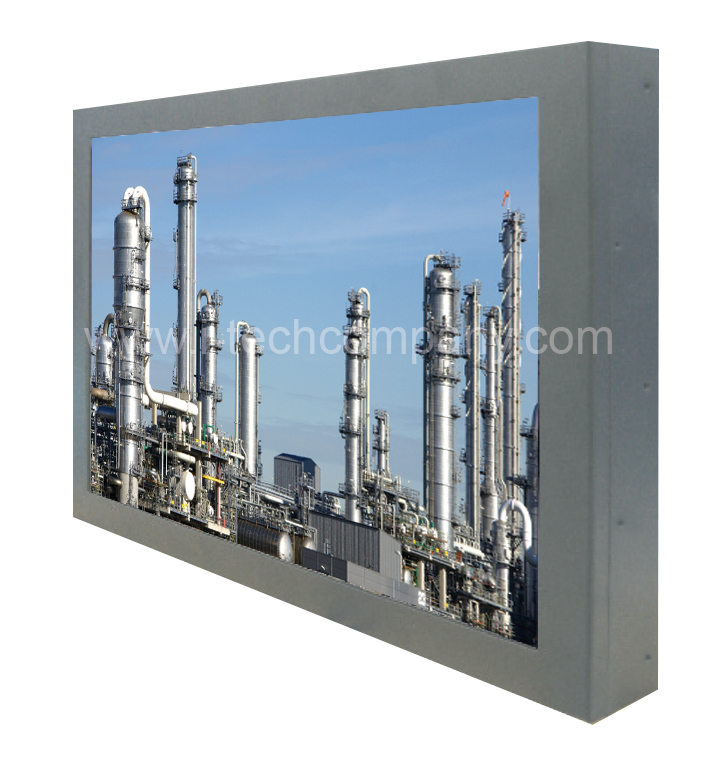

12.1" Chassis Mount Widescreen LCD Monitor VGA, Optional AV, DVI inputs, Touch Screen display (Model: WCHW1210M9)

Specification:

Technical Description
Screen Size (diagonal)	12.1"
Active Display Area (mm)	261.12 (H) x 163.2 (V)
Pixel Pitch (mm)	0.204 (H) x 0.204 (V)
Native Display Resolution (pixels)	1280x800
Brightness (CD/m^2)	400 (typ.)
Contrast Ratio	1000:1 (typ.)
Viewing Angles (L/R/U/D)	-88~88 (H); -88~88 (V)
Number of Colors	262K/16.2M
Optional Touch Screen	4W Resistive
Power Information
Power Source	12V DC in, with External AC to DC Adapter (100~240V AC)
Power Consumption(Normal operation)	20 W typical, normal operation
Power Input	VESA DPMS Compliant
Display Signals
Plug & Play	VESA DDC 1/2B
Video Input (optional)	S-Video, Composite
DVI Input (optional)	No

Remark: WCHW1210M9 = VGA input only
WCHW1210M9AV = VGA + Video + Audio input

*Due to Panel material's deviation, different panel supplier will set different specific variance range to optical characteristics. The factors of time used, Lamp current, Ambient temperature will influence the optical measurements.
