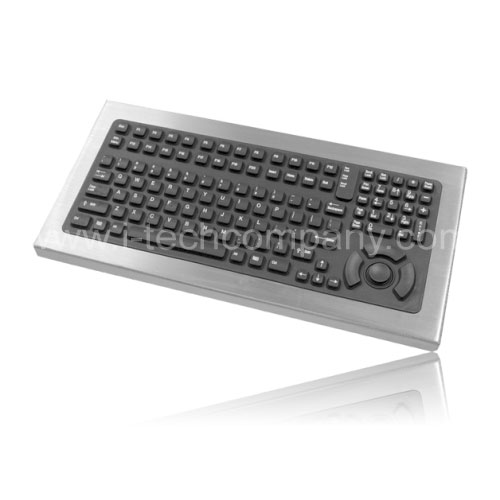

Keyboard with Integrated HulaPoint II™ (Model: DT-5K)
- Overview
- Download
Features
The DT-5K combines HulaPoint II™ an upgraded pointing device that offers improved sensitivity and increased durability, with a 10-key numeric keypad in a ruggedized stainless steel case, providing dual functionality in one compact unit. Its 20 function keys provide user versatility. This keyboard also offers user Windows keys for ease of access to the operating system.
Specification
| Certifications | NEMA 4X UL60950, FCC Part 15 Class B |
| Shock | 3x11 ms pulses of 50g on each of 3 axes |
| Cable | LENGTH: 10 feet (3 meters) DESIGN: "Y" PS/2 Cable (providing separate keyboard and mouse connections), or Single-Cable USB |
| Key Switch | MATERIAL: Industrial silicone rubber LIFE: 10 million cycles TRAVEL: 0.055 in. (1.4 mm) ACTUATION FORCE: 7.03 oz +/- 1.06 oz (200g +/- 20g) FEEDBACK: Tactile with mechanical snap |
| Vibration | POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours |
| Power | PS/2 or AT/Serial: KEYBOARD: 50mA@5V (from Keyboard port) HULAPOINT: 35mA@5V (from Mouse port) USB: 85mA@5V (from CPU port) |
| Flammability | PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94 HB INTERFACE CABLE: 94 VO |
| Compatability | PS/2 KEYBOARD/HULAPOINT: All Windows Operating Systems USB KEYBOARD/HULAPOINT: All Windows and Macintosh OS |
| Temperature Range | STORAGE: -40C to +70C (-40F to +158F) OPERATING: -20C to +60C (-4F to +140F) |
| Weight | 5.25 lbs +/- 0.10 lbs (2.38 kg +/- 0.05 kg) |
| Warranty | 1 year limited warranty |
| Humidity | 100% |
| Dimensions | 16.25" x 7.88" x 1.80" (w-h-d) 412.8mm x 200.2mm x 45.7mm |
| Model Numbers | DT-5K-PS2: With PS/2 cable DT-5K-USB: With USB cable DT-5K-STD: With AT/serial cable |
