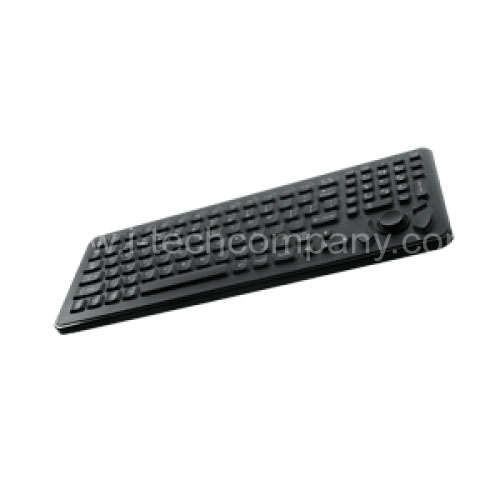

SlimKey™ Keyboard with HulaPoint™ (Model: SK-102)
- Overview
- Download
Features
iKey's SlimKey™ SK-102 keyboard provides full-size versatility in a rugged, compact design, with the added convenience of an integrated HulaPoint™. The SlimKey™ SK-102 is engineered to meet NEMA 4X protection from dust, water and corrosive liquids, the SK-102 is ideal for use in environments ranging from manufacturing to material handling to medical settings. The large numeric pad on the SK-102 allows for easy data entry, while the robust polycarbonate case is durable in the roughest of environments.
Specification
| Certifications | NEMA 4X UL60950, FCC Part 15 Class B |
| Shock | 3x11 ms pulses of 50g on each of 3 axes |
| Cable | LENGTH: 10' straight (3 m) |
| Key Switch | MATERIAL: Industrial silicone rubber LIFE: 10 million cycles TRAVEL: 0.055 in. (1.4mm) ACTUATION FORCE: 7.05 oz +/- 1.06 oz (200g +/-30g) FEEDBACK: Tactile with mechanical snap |
| Vibration | POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours |
| Power | PS/2: KEYBOARD: 50mA@5V (from Keyboard port) HULAPOINT: 35mA@5V (from Mouse port) USB: 85mA@5V (from CPU port) |
| Flammability | PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94HB |
| Compatability | PS/2 KEYBOARD/HULAPOINT: All Windows Operating Systems USB KEYBOARD/HULAPOINT: All Windows and Macintosh OS |
| Temperature Range | STORAGE: -40C to +90C (-40F to +194F) OPERATING: -40C to +70C (-40F to +158F) |
| Weight | 1.5 lbs +/- 0.10 lbs (0.68 kg +/- 0.05 kg) |
| Warranty | 1 year limited warranty |
| Humidity | 100% |
| Dimensions | 14.60" x 5.55" x 1.05" (w-h-d) 370.8mm x 141mm x 26.7mm |
| Model Numbers | SK-102-PS2 with PS/2 Cable Sk-102-USB with USB Cable |
