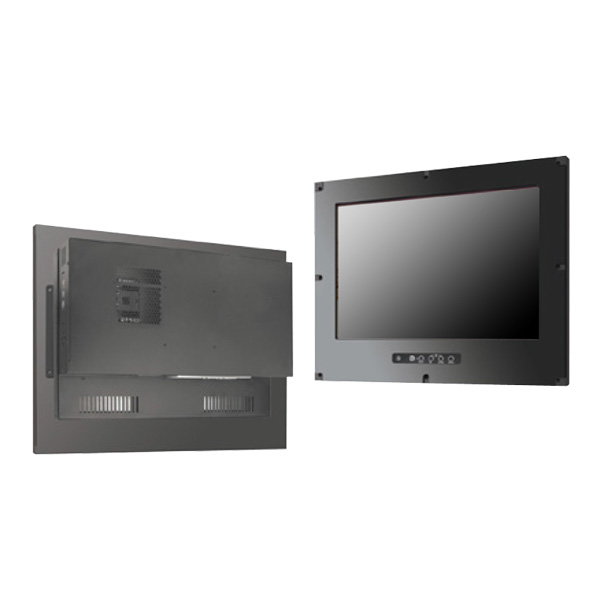

Flush Mount Panel-PC, w24"-1920x1200, LED-300nits, Intel Baytrail system chip with Celeron-J1900-CPU (Model: EFMW2400-J-V1)

Flush Mount Panel-PC, w24"-1920x1200, LED-300nits, V(178°,178°) Intel Baytrail system chip with Celeron-J1900-CPU, 8GB Memory, 256GB SSD, Windows-10-Pro-64bits-English version Rear I/O Port= *VGA+ 1*HDMI+ 2*RJ45(GbE)+ 2*COM+ 4*USBOSD on Front Bezel, Built-in Power Supply with 110/220VAC auto-switching (Model: EFMW2400-J-V1)

Flush Mount Panel-PC, w24"-1920x1200, LED-300nits, V(178°,178°) Intel Baytrail system chip with Celeron-J1900-CPU, 8GB Memory, 256GB SSD, Windows-10-Pro-64bits-English version Rear I/O Port= *VGA+ 1*HDMI+ 2*RJ45(GbE)+ 2*COM+ 4*USBOSD on Front Bezel, Built-in Power Supply with 110/220VAC auto-switching (Model: EFMW2400-J-V1)

Main Feature

  • Modularize mechanical design provides flexible product configuration and easy maintenance
  • Optional build-in touch screen for interactive application
  • Intel® Celeron J1900
  • Intel ® Atom BayTrail
  • Dual Channel DDR3 1333 MHz SDRAM, Max up to 8GB
  • 1 x VGA, 1 x HDMI, 3 x COM, 2 x LAN, 2 x USB 2.0, 2 x USB 3.0
Inquiry/Quote Request
EFMW2400-J-V1
  • Overview
  • Download
  • Contact Sales
EFM Series: Industrial Flush Mount Aluminum Housing LCD Monitor (Optional Integrated Projective Capacitive Touch screen/Front IP65/NEMA4x/Front and more...)


Features Highlights:

  • 1. FLASH MOUNT / FRONT MOUNTING
  • 2. Aluminum Housing Flush Mount Design
  • 3. AR Glass Protective Glass at front
  • 4. Optional High Brightness and Touch screen


  • All Connectors are facing downward


Features:
  • Modular mechanism design provides flexible product configuration and easy maintenance.
  • Optional to built-in touch screen for interactive application.
  • Available with auto-brightness sensor offers application in day and night.
  • Complete custom design/solution for OEM customers

Specifications:

Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspect Ratio / Size Wide / 24.1" viewable diagonal area
Active Area / Pixel Pitch 518.4(H) x 324.0(V) mm / 0.27(H) x 0.27(V) mm

Native Resolution / Colors

1920(H) x 1200(V) / 16.7M
Brightness / Contrast 300 cd/m2 (typ) / 1000 : 1
Response Time < 14ms (G-to-G)
Viewing Angle (typical) H.178o (- 89° ~ + 89°) , V. 178° (- 89° ~ + 89°)
Light Source LED backlight, Long life, 35,000 hrs (typ)
System CPU Intel® Celeron J1900 Processor
BIOS UEFI
System / Graphic Chipset Intel® Gen7 Intel Graphics DX 11*, OGL3.2
System Memory Dual Channel DDR3 1333 MHz SDRAM, Max up to 8GB
HDD 2 x SATA
I/O port 1 x VGA, 1 x HDMI
2 x USB 2.0, 2 x USB 3.0
3 x COM (RS232/422/485)
2 x LAN, Mic-in, Line-out
Expansion 1 x Mini PCI-e
Power Power Input 12V DC input with adapter
Power Consumption 50 Watt, <1 Watt
Operating Condition Temperature / Humidity 0oC ~ 50oC (32oF ~ 122oF) , 10% ~ 90% (no condensation)
Dimensions Physical Please refer to Drawing
Carton W x H x D = TBD

Options Touch Video / TV Enhanced Panel Others
Resistive touch SV + AV Panel with LED backlight Digital Signage(Stand alone)
Capacitive touch SV + AV + AV Looping High brightness panel Networking Digital Signage
SAW touch SV + AV + TV Wide Temperature Motion Sensor
Infrared touch   Sunlight Readable Light Sensor
Protected glass     Auto-Dimming


LCD Options
  LED Backlight

Introducing LED backlight options for monitors for energy efficiency and a brighter screen.
The benefits of LED-backlit LCDs include:
  • Longer operating life
  • Low power consumption
  • Environmental friendliness (Mercury [Hg] free)
  • Greater resistance to mechanical shock (no glass tubes)
  • Quicker illumination to stable brightness
  • Wide dimming ratio (to <1%)
  • Reduction of electronic noise (low DC drive voltage)

  TouchScreen

Our LCD has a wide selection option to choose which touchscreen.technology suits for you.

Four-Wire
Resistive
Five-Wire Resistive
Pen Touch
Capacitive
Surface Wave(Saw)
Infrared Touch (Ir)
PRODUCT SIZE 1.7" - 24" 10.4" - 24" 15" - 19" 12" - 24" 10.4" - 30" 10.4" - 42"
TOUCH LIFE 1 - 2 million
touches		 30 - 35million
touches		 100 million
touches		 100 million
touches		 50 million
touches		 Long-term reliability
SCRATCH RESISTANCE Hard Coated Hard Coated Hard Coated
(SiO˛)		 Hard Coated
(SiO˛)		 Glass Overlay
Moh's hardness rating of 7		 Glass Overlay
Moh's hardness rating of 7
CONTAMINANT RESISTANCE Resists moisture, dirt, vinegar, ammonia based food products and cleansers Resists moisture, dirt, vinegar, ammonia based food products and cleansers Resists moisture, dirt, vinegar, ammonia based food products and cleansers Resists moisture, dirt, vinegar, ammonia based food products and cleansers Resists moisture, dirt, vinegar, ammonia based food products and cleansers Resists moisture, dirt, vinegar, ammonia based food products and cleansers
INPUT METHOD Finger, Gloved Hand, Stylus Finger, Gloved Hand, Stylus Stylus Pen Finger Finger, Gloved Hand, Soft pliable stylus Finger, Gloved Hand, Stylus
CONTROLLER USB, RS232 USB, RS232 USB, RS232 USB, RS232 USB, RS232 USB, RS232



  VIDEO Input

For Video inputs options:
  • DVI
  • DVI+HDMI
  • SVideo+AV
  • SVideo+AV+DVI
  • AV+Looping
  • DVI+AV+Looping
  • HD-SDI



  Optical Bonding

  • Optical Bonding provides the best reduction of ambient light washout of any commercially available enhancement technology.
  • Optical Bonding has a lower cost than most other competing technologies.
  • Optical Bonding offers superior ruggedization, enhancing the display durability under vibration, shock and other environmental extremes.



  RS-232 Remote Control

RS-232 Option for LCD/LED monitors.




  9-36V DC Input

iTech offers a selection of DC input from 9V to 36V.



  Light Sensor and Motion Sensor

iTech LCD offers Light and Motion Sensor
