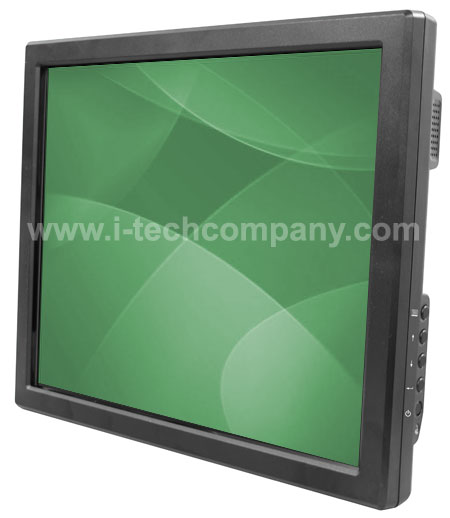

15 XGA TFT LCD with IR Touch. Aspect Ratio 4x3. 8 m/s response time. 220 cd/m2. Up to 1024 x 768. (Model: DIR1500)

Overview
Specifications
Download

Industrial DIR Touch Monitor

The DIR1500/DIR1700 Industrial DIR Touch Monitors integrate a 15-inch or 17-inch vivid display with infrared touch function in one slim, mountable package, efficient to integrate with existing systems. The optional magnetic stripe reader module provides the ability to create a point-of-sale or point-of-service system, reading data stored on a loyalty program card, credit card, gift card, or identification card. The DIR1500/DIR1700 Industrial Touch Monitors are ideal for many vertical market applications, and provide effective solutions for interactive digital signage and kiosk deployments.

Features:

DIR touch function for interactivity
Robust, industrial grade
Slim design for space efficiency
High contrast LCD panel with wide viewing angle
Low power consumption, long life
Built-in stereo speakers and USB ports

DIR1500/DIR1700 Standard Package
	1 DIR1500 or DIR1700 Touch Monitor 1 AC/DC power adapter with power cord 1 DVI cable 1 VGA cable 1 USB cable 1 Audio cable 1 DIR1500/DIR1700 Touch Driver/ Utility CD Documentation

Model	DIR1500	DIR1700
Display	Active size: 15 inch diagonal Type: XGA TFT LCD LCD Aspect ratio: 4 x 3	Active size: 17 inch diagonal Type: SXGA TFT LCD LCD Aspect ratio: 4 x 3
Useful Screen Area	Horizontal: 304.128mm Vertical: 228.096mm	Horizontal: 337.920mm Vertical: 270.336mm
Colors	16.7 million
Brightness	LCD panel: 250 cd/m2 (typical) With Infrared touch screen: 220 cd/m2 (typical)
Response Time	8 msec (typical)	5 msec (typical)
Contract Ratio	700:1	800:1
Pixel Pitch	0.297mm x 0.297mm	0.264mm x 0.264mm
Pixel Format	1024 x 768 pixels, RGB vertical stripe	1280 x 1024 pixels, RGB vertical stripe
Input/Output Ports	1 VGA port; 1 DVI port; 4 USB 2.0 ports; 1 Audio-in jack; 1 DC-in jack
Speaker	Built-in stereo speakers
Control Buttons	1 Power button; 4 OSD Control buttons
Power Supply	External AC Adapter, Input: 100-240V AC, 50/60 Hz Output: 12V DC, 3.5A	External AC Adapter, Input: 100-240V AC, 50/60 Hz Output: 12V DC, 3.5A
Power Consumption	20W	26W
Dimensions (H x W x D)	277.6mm x 353.6mm x 62.6mm	319.6mm x 387.6mm x 67.9mm
Weight	4.0kg/ 8.8lbs	5.6kg/ 12.3lbs
Mounting Options	100 x 100 mm	100 x 100 mm
Temperature	Operation: 0° – 40°C Storage: 0° – 60°C
Humidity	Operation: 0% – 85% non-condensing Storage: 0% – 90% non-condensing
Regulation	FCC Class B, CE, C-Tick, RoHS compliant

DIR1500/DIR1700 – IR Touch Screen Specifications

Input Method :
Finger or gloved hand activation or stylus activation
Glass :
3.0(+0.3,-0.1)mm toughened glass
Transparency :
≥88%
Minimum Touch Object :
≥7mm
Temperature :
Operation: 0° – 40°C; Storage: 0° – 60°C
No Drift :
Maintenance free
