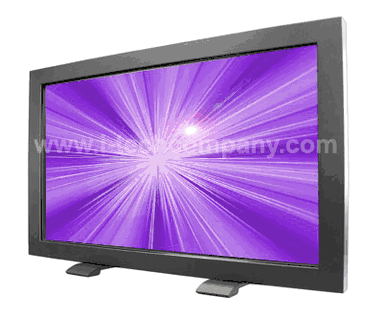

37" Wide Format WXGA TFT LCD. Aspect Ratio 16x9. 8m/s response time. 500cd/m2 (typical brightness). Up to 1366x768. (Model: DIR3700)

Overview
Specifications

Industrial DIR Touch Monitor

The DIR3700 Industrial DIR Touch Monitor integrates a 37-inch high-definition display with infrared touch function in one slim, mountable package. With robust, fanless construction, the DIR3700 is compatible with iTechLCD signage appliances or with many media players deployed in various industrial and consumer environments. The DIR3700 Industrial DIR Touch Monitors offers limitless applications for interactive computer, digital signage, computing, and kiosk deployments.

Features:

Robust, industrial grade
Fanless, metal chasis design
High performance, high contrast LCD panel with wide viewing angle
IR touch function for interactivity
Low power consumption and long life
Slim design for limited space

Optional Accessories
	Tabletop stands (PN: ACC-008-29) Stable, aluminum stand attaches to base of 26” Signage LCD Displays for placement on a flat surface. Rubber-padded bottom for secure grip. 2 pieces.

	Mounting Kit Mobile cart stand with adjustable height for horizontal or portrait mounting of 26”, 37”, 42”, 47” Signage LCD Displays. Steel construction with four wheels on base. Cart tallest height: 45.7”, front base width: 28.2” , rear base width: 20.5”, base length: 28.9”

Model	DIR3700
Display	Active size: 37.02 inch diagonal　 Type: Wide format WXGA TFT LCD Aspect ratio: 16 x 9
Useful Screen Area	Horizontal: 823.7 mm Vertical: 465.1 mm
Dimensions (H x W x D)	Touch: 931 x 562 x 114 mm
Colors	16.7 million
Brightness	500 cd/m² (typical)
Response Time	8 msec (typical)
Pixel Pitch	0.6mm x 0.6mm
Orientation	Landscape or Portrait
Pixel Format	1366 x 768 pixels, RGB stripe
Control Buttons	1 Power button; 3 OSD Control buttons
Power Supply	Built in 90-240V AC, 50/60 Hz
Power Consumption	170W (max.)
Temperature	Operating: 0°C ~ 40°C Storage: -20°C ~ 60°C
Humidity	Ta = 39°C, 90% RH
Weight	43.54 Kg/ 96 lbs
Mounting Options	300 x 100 mm

DIR3700– DIR Touch Screen Spec

Transparency :
92%, Up to 100%
Minimum Touch object :
5mm
Response Speed :
16ms
Touch Intensity :
Over 60,000,000 Single Point Touch
Vandal-Proof :
Steel Ball (Diameter 38mm 227g Weight) drop from 200cm, No breakage
Direct Light :
No Disturbing
