10.4" Open Frame LCD Monitor w/ VGA Input (Model iOP-1000)
- Overview
- Specifications
- Download

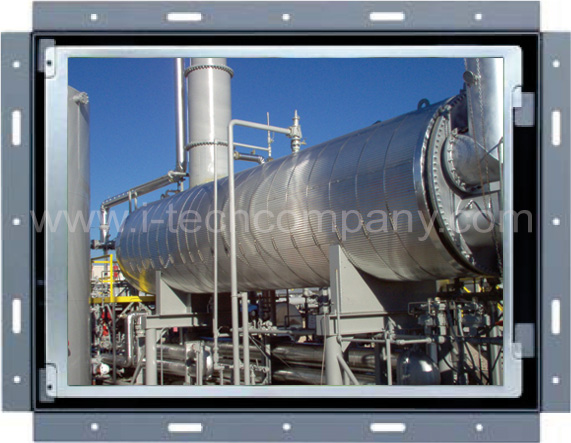

10.4" Open Frame LCD Monitor w/ VGA input Optional w/ Touch Screen, S-Video/Composite video and 12V/24V/48V DC (Model iOP-1000)
X
Inquiry/Quote Request
Features
• 10.4 " LCD with resolution 800 x 600• Green LED-backlit panel technology
• Rugged construction against external impact
Options
• S-Video + BNC & Audio• 10.4 " Touchscreen : Capacitive, Resistive
• 48V, 24V or 12VDC power
• TV - Analog
Specifications
| LCD Panel | ||
| LCD Manufacturer | AUO | |
| Size (diagonal) | 10.4" TFT | |
| Max resolution | 800 x 600 | |
| Brightness (cd/m2) | 230 | |
| Backlight | LED | |
| Colors | 262 K | |
| Contrast ratio (typ) | 500 : 1 | |
| Viewing angle (H/V) | 160° x 130° | |
| Active area (mm) | 211 x 158 | |
| MTBF (hrs) | 30,000 | |
| Signal input | VGA | |
| Weight | ||
| Net / Gross | 2.5 kgs ( 5.5 lbs ) / 4.5 kgs ( 9.9 lbs ) | |
| Mounting | ||
| Universal mount / VESA mount | ||
| Environmental | ||
| Operating | 0 to 50°C Degree | |
| Storage | -5 to 60°C Degree | |
| Relative humidity | 5~90%, non-condensing | |
| Shock | 10G acceleration ( 11 ms duration ) | |
| Vibration | 5~500Hz 1G RMS random vibration | |
| Casing Color | ||
| Dark grey ( RAL 7037 ) | ||
| Regulatory | ||
| FCC, CE | ||
| Power | ||
| Input |
Auto-sensing 100 to 240VAC, 50 / 60Hz | |
| Consumption | Max. 40 Watt, Standby 5 Watt | |
| Dimensions | ||
| Product | 282 x 57 x 219 mm / 11.1 x 2.2 x 8.6 inch | |
| Packing | 515 x 117 x 429 mm / 20.3 x 4.6 x 16.9 inch | |
| Specification | ||
| LCD Panel | ||
| LCD Manufacturer | Samsung | |
| LCD Type | Grade A industrial TFT LCD Panel | |
| Panel Size | 10.4" diagonal | |
| Display Area | 211 x 158 mm (HxV) | |
| Max. Resolution | 800 x 600 | |
| Brightness | 230 cd/m2 (Typical) | |
| Color Support | 262K | |
| Viewing Angle | 70° / 70° / 55° / 65° (L / R / U / D) | |
| Contrast Ratio | 500 : 1 (Typical) | |
| Tr Respones Time | 10 ms | |
| Pixel Pitch | 0.264 x 0.264 mm | |
| OSD Control | Brightness, Contrast, Phase & Clock, Color, H & V position, Auto-tune & Recall |
|
| LCD MTBF | 50,000 hrs | |
| Mechanical | ||
| Material | 1.2mm Steel | |
| Color | Black | |
| Dimension | 295 x 45 x 237 mm (WxDxH) | |
| Weight | 2 .5 kg | |
| Package Information | ||
| Carton Box | 523 x 100 x 403 mm (WxDxH) | |
| Weight | 4.5 kg | |
| Signal Input | ||
| Input Video Signal | Analog RGB | |
| Video Level | Analog: 0.7Vp-p | |
| Sync Type | Separate H/V, Composite H/V | |
| Input Connector | D-Sub 15 pin VGA analog | |
| Power | ||
| Power Input |
Auto-sensing 100 to 240VAC, 50 / 60Hz via AC Adapter | |
| Power Consumption |
Max. 40 Watt, Standby 5 Watt | |
| Environmental | ||
| Operation |
0° to 50°C Degree | |
| Storage | -5° to 60°C Degree | |
| Relative Humidity |
5~90%, non-condensing | |
| Shock | 10G acceleration (11ms duration) | |
| Vibration | 5~500Hz 1G RMS random vibration | |
| Option | ||
| AV Input | ||
| Video Input | S-Video and Composite | |
| Connectors | S-Video, RCA | |
| BNC Input | ||
| Video Input | S-Video and Composite | |
| Connectors | S-Video, BNC | |
| DVI Input | ||
| Video Input | DVI digital input | |
| Connectors | DVI-D | |
| DC Power Input | ||
| Input Voltage | 12 / 24 / 48-Volt | |
| Audio Input | ||
| Audio Input | Analog audio 2-channel (L/R) | |
| Speaker | 3W x 2 | |
| TV Tuner | ||
| Signal Input | NTSC, PAL (I, B, G, H, M, D, N), SECAM (D, K, L, B, G) | |
| Connectors | RF | |
| e-Resistive Touchscreen | ||
| Type | 5-Wire Resistive | |
| Interface | USB / Serial | |
| Optical Transmittance | 82%±5% | |
| Surface Hardness | ≥3H (JIS K5400) | |
| Operating System | Windows 98 / 2000 / ME / XP / NT / CE, DOS, Linux | |
