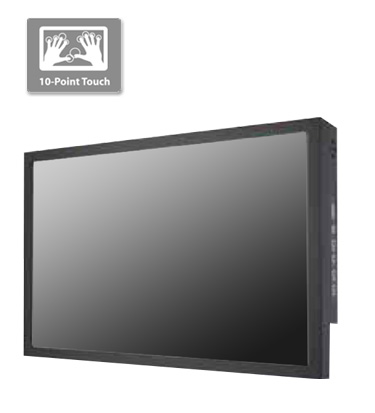

IP65 Chassis Mount 17.3" Wide LCD monitor, 1920 x 1080, LED 300 nits, VGA input, WV(178°/178°) with 10 points Projective Capacitive Touch (1-2mm) USB Controller (Model: ECPMW1730HDWV-PCT10)
IP65 Chassis Mount 17.3" Wide LCD monitor, 1920 x 1080, LED 300 nits, VGA input, WV(178°/178°) with 10 points Projective Capacitive Touch (1-2mm) USB Controller (Model: ECPMW1730HDWV-PCT10)
Main Feature
- Modularize mechanical design provides flexible product configuration and easy maintenance
- Optional build-in touch screen for interactive application
- Available with auto-brightness sensor offers application in day and night
- VGA connector with optional AV.SV.AV-Looping
- Complete custom design/solution for OEM customers
- IP65 front side sealed for water-dust proof
ECPMW1730HDWV-PCT10
- Specifications
- Download
- Contact Sales
Panel |
Cell Type / Glass Surface |
TFT LCD / Black Anti-Glare, low reflection coating |
Aspect Ratio / Size |
Wide / 17.3" viewable diagonal area |
Active Area / Pixel Pitch |
381.888(H) x 214.812(V) mm / 0.1989(H) x 0.1989(V) mm |
Native Resolution / Colors |
1920(H) x 1080(V) / 262 K |
Brightness / Contrast |
300 cd/m2 (typ) / 600 : 1 |
Response Time |
< 35 ms |
Viewing Angle (typical) |
H.178o (- 89o ~ + 89o) , V. 178o(- 89o ~ + 89o) |
Light Source |
LED backlight, Long life, 35,000 hrs (typ) |
Input Sources |
PC System |
Signal |
Analog RGB (0.7/1.0 Vp-p, 75 ohms) |
Sync |
Separate Sync, Composite Sync, Sync On Green |
Frequency |
Fh : 30 - 82Khz , Fv : 50 -75Hz |
Audio System |
2W speaker x 2 |
Input Terminals |
1 x VGA (15 Pin Female D-Sub) , 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug |
Convenient Features |
Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B) |
OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing) |
Power |
Internal power supply with universal / Auto-Sensing, AC90 to 260V, 50/60 Hz |
Power Consumption |
Operation / Power Saving |
15 watt , < 1 watt (Support DPMS) |
Operating Condition |
Temperature / Humidity |
0oC ~ 50oC (32oF ~ 122oF) , 10% ~ 90% (no condensation) |
Storage Condition |
Temperature / Humidity |
- 20oC ~ 60oC (- 4oF ~ 140oF) , 10% ~ 90% (no condensation) |
Certification |
|
FCC , CE |
Dimensions |
Physical |
Please refer to Drawing |
Carton |
W x H x D = TBD |
Weight |
N.W. / G.W. |
4.5 Kgs / 5.5 Kgs |
Container Loaded |
20ft / 40ft / 40ft HQ |
TBD (Sets , By pallet) |
|
Options |
Touch |
Video / TV |
Enhanced Panel |
Others |
Resistive touch |
SV + AV |
Panel with LED backlight |
Digital Signage(Stand alone) |
Capacitive touch |
SV + AV + AV Looping |
High brightness panel |
Networking Digital Signage |
SAW touch |
SV + AV + TV |
Wide Temperature |
Motion Sensor |
Infrared touch |
|
Sunlight Readable |
Light Sensor |
Protected glass |
|
|
Auto-Dimming |
