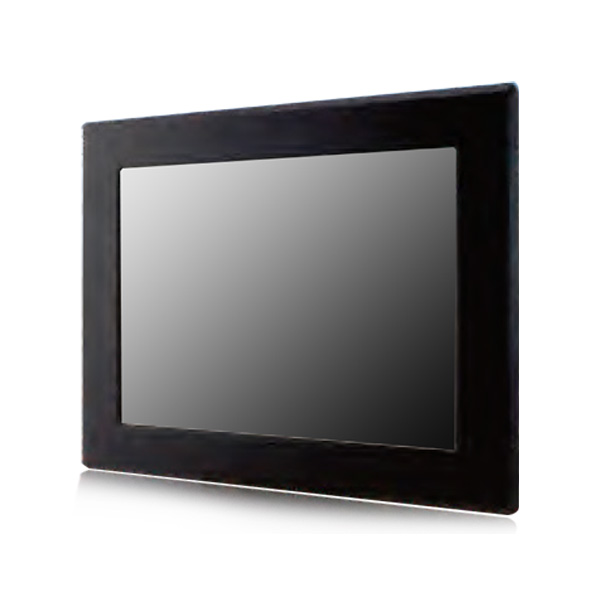

IP65 Front Panel Mount (Metal-5mm), High Brightness 15" LCD monitor, 1024 x 768, 610nits, VGA Input, Rear OSD, including rear screw/Clamp/VESA Mount (Model: CPM1500H2BIP)
IP65 Front Panel Mount (Metal-5mm), High Brightness 15" LCD monitor, 1024 x 768, 610nits, VGA Input, Rear OSD, including rear screw/Clamp/VESA Mount (Model: CPM1500H2BIP)
Main Feature
- IP65 Front Panel Mount (Metal-5mm)
- VGA Input, Rear OSD
- Rear Screw/Clamp/VESA Mount
- Resolution: 1024x768
- Brightness: 610nits
CPM1500H2BIP
- Specifications
- Download
- Contact Sales
Panel Size |
15" |
Active Display Area(mm) |
304.1(H)x228.1(V) |
Resolution |
1024x768 |
Brightness(cd/m2 |
610 (Typical) |
Contrast Ratio |
700:1 (Typical) |
Viewing Angles(CR>=10 L/R/U/D) |
-80~80(H) ; -70~70(V) |
Display Colors |
16.2M (6 bits/color) |
Standard Input Signal |
1 x VGA (D-sub 15)
1 x HDMI (Type-A) |
Touch Screen(Optional-1) |
Resistive Touch
Protective Glass |
Touch Screen(Optional-2) |
SAW Touch (Surface Acoustic Wave) |
Touch Interface |
USB / RS232 |
Audio / Speakers (Optional)* |
Audio line in (3.5mm) + Speaker x2 |
OSD |
5 Keys: - , + , Power , Esc , Enter |
Power Input |
12V DC input (2.5?)
with external AC-DC Adapter (100V~240V) |
Power Consumption |
15W typical , Normal operation |
Operating temperature |
0~50? |
Storage Temperature |
-10~60? |
Accessories |
Power AC-DC Adapter(100V~240V)
VGA cable (1.8m)
HDMI cable (2m) |
I/O Optional |
Optional 1* |
1 x VGA (D-sub 15)
1 x HDMI (Type-A)
1 x DVI-D |
Optional 2* |
1 x VGA (D-sub 15)
1 x DVI-D
1 x S-Video
1 x Composite |
