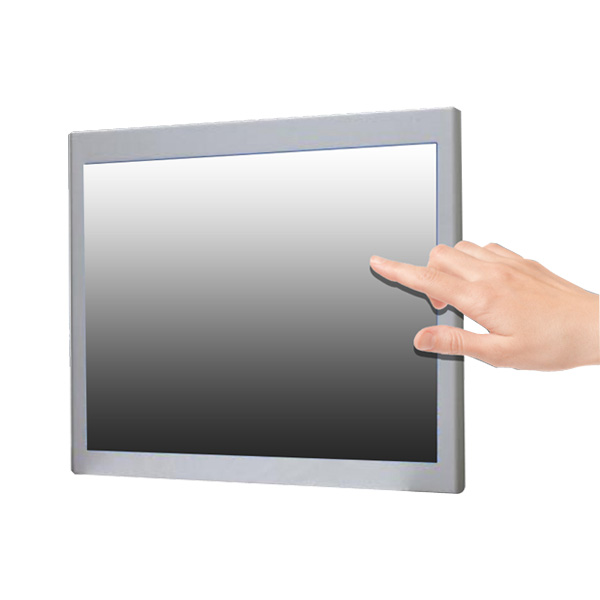

Fanless 15" full metal Chassis Industrial Panel PC IP65 front bezel, 6th Intel Celeron i7 7600U CPU, 1024x768 4 x USB, 2 x HDMI, 2 x LAN, 2 x RS232 VESA mounting 100 x 100 (MODEL: KCPC1500-i7-6)

Fanless 15" full metal Chassis Industrial Panel PC IP65 front bezel, 6th Intel Celeron i7 7600U CPU, 1024x768 4 x USB, 2 x HDMI, 2 x LAN, 2 x RS232 VESA mounting 100 x 100 (MODEL: KCPC1500-i7-6)

Fanless 15" full metal Chassis Industrial Panel PC IP65 front bezel, 6th Intel Celeron i7 7600U CPU, 1024x768 4 x USB, 2 x HDMI, 2 x LAN, 2 x RS232 VESA mounting 100 x 100 (MODEL: KCPC1500-i7-6)

Main Feature

  • Elegant style sliver metal chassis design
  • 6th Intel® Celeron® i3 6100U/i5 6300U/i7 6600U CPU
  • Resolution 1024 x 768 dpi
  • 5 wires resistive touch solution
  • 4 x USB, 1 x HDMI, 1 x DP, 2 x LAN, 2 x RS232
  • VESA mounting 100 x 100
  • IP65 front bezel
  • Various Sunlight Readable High Brightness Panel for choose
  • WIFI optional
KCPC1500-i7-6
  • Specifications
  • Download
  • Contact Sales
System
CPU 6th Gen Intel® Core™ Celeron 3955U i5-6300U/i7-6600U
Memory 2 x 204-pin DDR3L SODIMM up to 16GB
H/W Monitor
Watchdog Timer 256-Level Watchdog Timer
I/O Ports
RS232 1
GLAN 2
USB 4 x USB3.0
VGA 1
DP++ 1
Line-Out / Mic In 1
Storage
Storage 1 x SATA 2.0 2.5” HDD/SSD
Expansion
Mini-PCIe 2 x Full-size (one w/ mSATA)
Power Requirement
Power Input Voltage DC in 12V (01 7S) or 15~36V (019S)
Touch Screen
Touch screen 5-wire resistive
OS support
Win Pro , 7,8,10, Embedded Win 7,8,10

Display
Size 15" TFT (4:3)
Resolution 1024x 768
Colors 16.2 M
Luminance ( cd/m2) 400
Contrast Ratio 700:1
View Angle ( H / V ) 160/160
Mechanical & Environmental
Operation Temp 0 ~ 45°C
Storage Humidity 10 ~ 90%, non-condensing
Mount VESA mounting(100X100mm)
Dimension (W x H x D mm) &Weight 410.2 x 306 x 84 (TBD)
Optional
RS232 2
External antenna 1 or 2
No Touch Screen 1
AR Glass 1

Optional High Brightness Panel
Resolution 1024 x 768 1024 x 768 1024 x 768 1024 x 768 1024 x 768
Color 16.2 M 16.7 M 16.7 M 16.2 M 16.7 M
Luminance(cd/m2) 2000 1600 1000 1000 800
Contrast Ratio 700:1 700:1 1700:1 700:1 700:1
Viewing Angle (H/V°) 160/160 160/160 170/170 160/160 160/160
