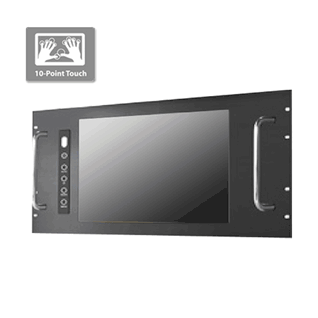

IP65 Rack Mount 10.4" LCD monitor, 800 x 600, LED 1000 nits, VGA input, WT(-30°C~70°C) 10 points Projective Capacitive Touch (1-2mm) USB Controller (Model: ERPM1040HBWT-PCT10)
IP65 Rack Mount 10.4" LCD monitor, 800 x 600, LED 1000 nits, VGA input, WT(-30°C~70°C) 10 points Projective Capacitive Touch (1-2mm) USB Controller (Model: ERPM1040HBWT-PCT10)
Main Feature
- Modularize mechanical design provides flexible product configuration and easy maintenance
- Optional build-in touch screen for interactive application
- Available with auto-brightness sensor offers application in day and night
- VGA connector with optional AV.SV.AV-Looping
- Complete custom design/solution for OEM customers
- IP65 front side sealed for water-dust proof
ERPM1040HBWT-PCT10
- Specifications
- Download
- Contact Sales
Panel |
Cell Type / Glass Surface |
TFT LCD / Black Anti-Glare, low reflection coating |
Aspect Ratio / Size |
4 : 3 / 10.4" viewable diagonal area |
Active Area / Pixel Pitch |
211.2(H) x 158.4(V) mm / 0.264(H) x 0.264(V) mm |
Native Resolution / Colors |
800(H) x 600(V) / 262 K |
Brightness / Contrast |
1000 cd/m2 (typ) / 600 : 1 |
Response Time |
< 35 ms |
Viewing Angle (typical) |
H. 160o (- 80o ~ + 80o) , V. 120o(- 60o ~ + 60o) |
Light Source |
LED backlight, Long life, 35,000 hrs (typ) |
Input Sources |
PC System |
Signal |
Analog RGB (0.7/1.0 Vp-p, 75 ohms) |
Sync |
Separate Sync, Composite Sync, Sync On Green |
Frequency |
Fh : 30 - 82Khz , Fv : 50 -75Hz |
Audio System |
2W speaker x 2 |
Input Terminals |
1 x VGA (15 Pin Female D-Sub) , 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug |
Convenient Features |
Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B) |
OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing) |
Power |
12V DC in |
Power Consumption |
Operation / Power Saving |
10 watt , < 2 watt (Support DPMS) |
Operating Condition |
Temperature / Humidity |
-30oC ~ 70oC (-22oF ~ 158oF) , 10% ~ 90% (no condensation) |
Storage Condition |
Temperature / Humidity |
-30oC ~ 80oC (-22oF ~ 176oF) , 10% ~ 90% (no condensation) |
Certification |
|
FCC , CE |
Dimensions |
Physical |
Please refer to Drawing |
Carton |
W x H x D = TBD |
Weight |
N.W. / G.W. |
3.5 Kgs / 4.5 Kgs |
Container Loaded |
20ft / 40ft / 40ft HQ |
TBD (Sets , By pallet) |
|
