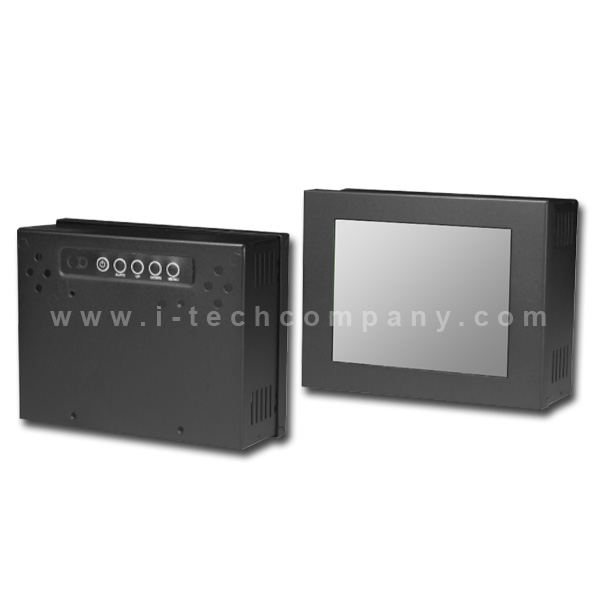

IP66 Front Military Grade Rugged Chassis Mount, 5.7" LCD monitor, 640x480, LED-400 nits, WT(-30°C~80°C), VGA HDMI DVI, AC-IN w/ Built-in Power, Comply MIL-STD-810G Vibration and shock. (Model: EMCM0570WT)

IP66 Front Military Grade Rugged Chassis Mount, 5.7" LCD monitor, 640x480, LED-400 nits, WT(-30°C~80°C), VGA HDMI DVI, AC-IN w/ Built-in Power, Comply MIL-STD-810G Vibration and shock. (Model: EMCM0570WT)

IP66 Front Military Grade Rugged Chassis Mount, 5.7" LCD monitor, 640x480, LED-400 nits, WT(-30°C~80°C), VGA HDMI DVI, AC-IN w/ Built-in Power, Comply MIL-STD-810G Vibration and shock. (Model: EMCM0570WT)

Main Feature

  • Modular mechanism design provides flexible product configuration and easy maintenance.
  • Optional to built-in touch screen for interactive application.
  • Available with auto-brightness sensor offers application in day and night.
  • VGA connector with optional AV,SV,AV-Looping
  • Complete custom design/solution for OEM customers
  • Optional: MIL connector / M12 connector / Plastic IP66 water resistance connector
Inquiry/Quote Request
EMCM0570WT
  • Overview
  • Specifications
  • Download
  • Contact Sales

OPTION MIL

  • Environmental: MIL-STD-810, DO-160
  • EMI/EMC: MIL-STD-461/462
  • Panel construction & lighting: MIL-P-7788
  • Power: MIL-STD-704, MIL-STD-1275
  • Shock - MIL S 901D
  • Vibration - MIL STD 167
Panel         Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspect Ratio / Size 4 : 3 / 5.7" viewable diagonal area
Active Area / Pixel Pitch 115.2(H) x 86.4(V) mm / 0.18(H) x 0.18(V) mm
Native Resolution / Colors 640(H) x 480(V) / 262 K
Brightness / Contrast 400 cd/m2 (typ) / 800 : 1
Response Time < 25 ms
Viewing Angle (typical) H. 160o (- 80o ~ + 80o) , V. 140o(- 70o ~ + 70o)
Light Source LED backlight, Long life, 35,000 hrs (typ)
Input Sources     PC System Signal Analog RGB (0.7/1.0 Vp-p, 75 ohms)
  Sync Separate Sync, Composite Sync, Sync On Green
  Frequency Fh : 30 - 82Khz , Fv : 50 -75Hz
Audio System 2W speaker x 2
Input Terminals 1 x VGA (15 Pin Female D-Sub) , 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug
Convenient Features   Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
Power 12V DC in
Power Consumption Operation / Power Saving 8.25 watt , < 1 watt (Support DPMS)
Operating Condition Temperature / Humidity -30oC ~ 80oC (-22oF ~ 176oF) , 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity -30oC ~ 80oC (-22oF ~ 176oF) , 10% ~ 90% (no condensation)
Certification   FCC , CE
Dimensions   Physical Please refer to Drawing
Carton W x H x D = TBD
Weight N.W. / G.W. 2.0 Kgs / 3.0 Kgs
Container Loaded 20ft / 40ft / 40ft HQ

TBD (Sets , By pallet)



Options Touch Video / TV Enhanced Panel Others
Resistive touch SV + AV Panel with LED backlight Digital Signage(Stand alone)
Capacitive touch SV + AV + AV Looping High brightness panel Networking Digital Signage
SAW touch SV + AV + TV Wide Temperature Motion Sensor
Infrared touch   Sunlight Readable Light Sensor
Protected glass     Auto-Dimming
