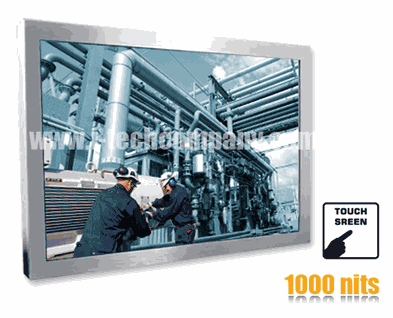

Rugged Completely Sealed IP66 Stainless Steel Chassis Mount 27"LCD monitor, 1920 x 1080, 1000 nits, Intel® Atom D2550 Processor, Projective Capacitive Touch (1-2mm) USB Controller (Model: SCHW2700HB-SIP-PC-PCT)

Rugged Completely Sealed IP66/NEMA4X Stainless Steel Chassis/Surface Mount Water/Dust proof 27" High Brightness Panel PC LCD monitor LED backlight, 1920 x 1080, 1000 nits, with 2mm AR glass and DVI input with Intel® Atom D2550 Processor and NM10 onboard, Projective Capacitive Touch (1-2mm) USB Controller (Model: SCHW2700HB-SIP-PC-PCT)

Rugged Completely Sealed IP66/NEMA4X Stainless Steel Chassis/Surface Mount Water/Dust proof 27" High Brightness Panel PC LCD monitor LED backlight, 1920 x 1080, 1000 nits, with 2mm AR glass and DVI input with Intel® Atom D2550 Processor and NM10 onboard, Projective Capacitive Touch (1-2mm) USB Controller (Model: SCHW2700HB-SIP-PC-PCT)

SCHW2700HB-SIP-PC-PCT
  • Overview
  • Download

Features:

• 27" Bright Active Matrix TFT Display, 1000 Nits (cd/m²)
• 1920 x 1080 High Resolution
• Built-in Intel Atom D2550 Dual Core 1.86Ghz CPU, Fanless Design, 32GB Wide temp SSD and 4GB Memory (DVI x 1 + RS232 x 1 + USB x 2 + POWER x 1 + LAN x 1)
• NEMA 4X (IP66) 304 Stainless Steel Gasket Sealed Enclosure
• DVI-D only for external video input
• Included all water proof connectors and 6ft long water proof cables.
• LED backlight Energy Efficient, Low Power Consumption
• High Environmental Performance and Reliability
• Anti-Reflective Protective Glass
• Wide Operational Temperature Range, 0°C to +50°C (32°F to +122°F)
• RoHS Compliant
• VESA mount compliant.




Options:

• Optional Custom fitting for purging the monitor's enclosure
• Optional for 9-36V DC input
• Optional 5 Wired Resistive touch/ IR/ PCap Touch Screen (USB Default/ RS232 per request controller)
• Optional High Brightness 1000nits For Semi outdoor application
• Optional for Auto Dimming Sensor
• Optional for IR Remote Control with Front Sensor.
• Optional Heater for lower temperatures -30C (-22F)
• Optional Integrated VGA/ DVI Extender
-Transmission length up to 1,000ft over CAT5e cable for VGA input
- Transmission length up to 300ft over CAT5e cable for DVI input





Rugged Completely Sealed IP66/NEMA4X Stainless Steel Chassis/Surface Mount LCD Monitor


Features Highlights:





  • Optional DC 9-36V input


Specifications:

LCD Display
Size / Panel Type 27” TFT LCD Panel
Resolution 1920 x 1080
Brightness (cd/m²) 1000 cd/m²
Contrast Ratio 3000 : 1
Response Time 12 ms
Backlight LED Backlight Unit
Colors 16.7M colors
Viewing Angles 178°/178°
Surface Hardness 7H
Touch Screen (Optional)
Touch Screen Type 10 Point Projected Capacitive Touch
Surface Hardness 7H
Environment
Operating Temperature 0°C~+50ºC
Storage Temperature -20°C~+60°C
Humidity 5%~95% RH(Non-Condensing)
Water-Proof Rating IP66/NEMA4, 6 Side Water-Proof
System
CPU / Memory Intel Atom D2550 Dual Core 1.86Ghz / 4GB DDR3
OSD Menu, Auto, On/Off, Up, Down
I/O Interface DVI x 1 + RS232 x 1 + USB x 2 + POWER x 1 + LAN x 1
Power Input 12~30V DC
Power Consumption 35W~42W (MAX. for USB HDD)
Certification FCC/CE/RoHS/UL/cUL Compliance
Mounting VESA 75 x 75mm; 100 x 100mm
Dimension/Weight 640.4mm (W) x 401.3mm (H) x 53.8mm (D)


Accessories

Water proof DVI cable 6ft long x 1
Water proof LAN cable 6ft long x 1
Water proof Power cable 6ft long x 1
RS232 Connector 6ft long x 1
USB Connector 6ft long x 2
