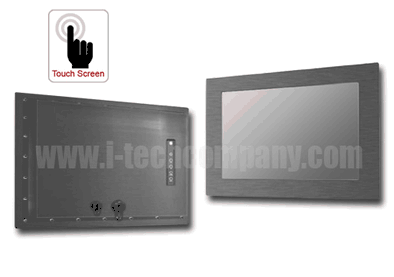

IP66 Panel Mount (OSD rear) 15.4" Wide LCD monitor, 1280 x 800, LED 200 nits, VGA input, w/o-Speaker, w/ Ext. Adapter, IP66 cables with Projective Capacitive Touch (1-2mm) USB Controller (Model: EPM6-W1540-PCT)

Overview
Download

EPM6 Series: Industrial Panel Mount Aluminum Housing LCD Monitor (Optional Integrated Projective Capacitive Touch screen/Full IP66/NEMA4x and more...)

Features Highlights:

1. Water Proof Solution, Full IP NEMA4X Rating front and back
2. Aluminum Housing Flush Mount Design
3. AR Glass Protective Glass at front
4. Optional High Brightness and Touch screen

IP66 Water and Dust proof connection for a higher protection
All Connectors are facing backward

Features:

Modular mechanism design provides flexible product configuration and easy maintenance.

Optional to built-in touch screen for interactive application.

Available with auto-brightness sensor offers application in day and night.

IP66 Compliant

Able to protect against powerful water jets

Complete custom design/solution for OEM customers

Specifications:

Panel	Cell Type / Glass Surface	TFT LCD / Black Anti-Glare, low reflection coating
	Aspect Ratio / Size	Wide / 15.4" viewable diagonal area
	Active Area / Pixel Pitch	331.2(H) x 207.0(V) mm / 0.2588(H) x 0.2588(V) mm
	Native Resolution / Colors	1280(H) x 800(V) / 262 K
	Brightness / Contrast	200 cd/m2 (typ) / 400 : 1
	Response Time	≦ 15 ms
	Viewing Angle (typical)	H. 90o (- 45o ~ + 45o) , V. 50o(- 30o ~ + 20o)
	Light Source	LED backlight, Long life, 35,000 hrs (typ)
Input Sources	PC System	Signal	Analog RGB (0.7/1.0 Vp-p, 75 ohms)
		Sync	Separate Sync, Composite Sync, Sync On Green
		Frequency	Fh : 30 - 82Khz , Fv : 50 -75Hz
	Audio System	N/A
Input Terminals	1 x VGA (15 Pin Female D-Sub) , 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug
Convenient Features	Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B)
	OSD Multi-Languages , Wall Mount Ready (VESA 75 x 75 mm)
Power	Internal power supply with universal / Auto-Sensing, AC 90 to 260V, 50 / 60 Hz
Power Consumption	Operation / Power Saving	28 watt , < 1 watt (Support DPMS)
Operating Condition	Temperature / Humidity	0oC ~ 50oC (32oF ~ 122oF) , 10% ~ 90% (no condensation)
Storage Condition	Temperature / Humidity	- 20oC ~ 60oC (- 4oF ~ 140oF) , 10% ~ 90% (no condensation)
Certification		FCC , CE
Dimensions	Physical	W x H x D = 450 x 320 x 73 (mm)
	Carton	W x H x D = TBD
Weight	N.W. / G.W.	4.5 Kgs / 5.5 Kgs
Container Loaded	20ft / 40ft / 40ft HQ	TBD (Sets , By pallet)

Options	Touch	Video / TV	Enhanced Panel	Others
	Resistive touch	SV + AV	Panel with LED backlight	Digital Signage(Stand alone)
	Capacitive touch	SV + AV + AV Looping	High brightness panel	Networking Digital Signage
	SAW touch	SV + AV + TV	Wide Temperature	Motion Sensor
	Infrared touch		Sunlight Readable	Light Sensor
	Protected glass			Auto-Dimming

LCD Options

LED Backlight

Introducing LED backlight options for monitors for energy efficiency and a brighter screen.

VIDEO Input

For Video inputs options:

DVI
DVI+HDMI
SVideo+AV
SVideo+AV+DVI
AV+Looping
DVI+AV+Looping
HD-SDI

Optical Bonding

Optical Bonding provides the best reduction of ambient light washout of any commercially available enhancement technology.
Optical Bonding has a lower cost than most other competing technologies.
Optical Bonding offers superior ruggedization, enhancing the display durability under vibration, shock and other environmental extremes.

RS-232 Remote Control

Remote Control Protocol: Command Code to set system

9-36V DC Input

iTech offers a selection of DC input from 9V to 36V.

Light Sensor and Motion Sensor

iTech LCD offers Light and Motion Sensor

Privacy Filter

Front Glass Options:

- Anti Reflective AR Glass 3mm
- Anti Reflective AR Glass 6mm Vandal-Resistance
- Anti Reflective AR Glass 8mm Vandal-Resistance
- Anti Glare AG Glass 3mm
