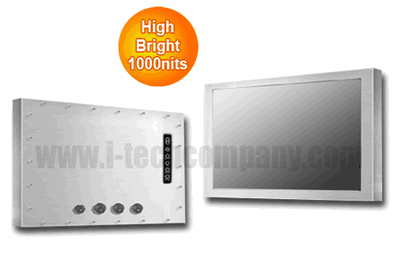

Full IP66/NEMA4X Stainless Steel Chassis Mount 22" LCD monitor, 1680 x 1050, LED 1000 nits, VGA input (Model: ECH6-W2200HB2)

Overview
Download

ECH6 Series: Rugged Completely Sealed IP66/NEMA4X Stainless Steel Chassis/Surface Mount Dust and Waterproof LCD Monitor

Features Highlights:

1. Water Proof Solution, Full IP NEMA4X Rating front and back
2. Stainless Steel Housing Chassis Design
3. AR Glass Protective Glass at front
4. Optional High Brightness and Touch screen

IP66 Water and Dust proof connection for a higher protection
All Connectors are facing backward

Features:

Modular mechanism design provides flexible product configuration and easy maintenance.

Optional to built-in touch screen for interactive application.

Available with auto-brightness sensor offers application in day and night.

Stainless Steel Enclosure

IP66 Compliant

Able to protect against powerful water jets

Complete custom design/solution for OEM customers

Specifications:

Panel	Cell Type / Glass Surface	TFT LCD / Black Anti-Glare, low refection coating
	Aspect Ratio / Size	Wide / 22" viewable diagonal area
	Active Area / Pixel Pitch	473.8(H) x 296.1(V) mm / 0.282(H) x 0.282(V) mm
	Native Resolution / Colors	1680(H) x 1050(V) / 16.7M
	Brightness / Contrast	1000 cd/m2 (typ) / 1000 : 1
	Response Time	≤ 5 ms
	Viewing Angle (typical)	H.170o (- 85o ~ + 85o) , V. 160o(- 80o ~ + 80o)
	Light Source	LED backlight, Long life, 35,000 hrs (typ)
Input Sources	PC System	Signal	Analog RGB (0.7/1.0 Vp-p, 75 ohms)
		Sync	Separate Sync, Composite Sync, Sync On Green
		Frequency	Fh : 30 - 82Khz , Fv : 50 -75Hz
	Audio System	2W speaker x 2
Input Terminals	1 x VGA (15 Pin Female D-Sub) , 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug
Convenient Features	Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B)
	OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
Power	External AC-to-12VDC power adapter with universal / Auto-Sensing, AC 90 to 260V, 50 / 60 Hz
Power Consumption	Operation / Power Saving	24.7 watt , < 1 watt (Support DPMS)
Operating Condition	Temperature / Humidity	0oC ~ 50oC (32oF ~ 122oF) , 10% ~ 90% (no condensation)
Storage Condition	Temperature / Humidity	- 20oC ~ 60oC (- 4oF ~ 140oF) , 10% ~ 90% (no condensation)
Certification		FCC , CE
Dimensions	Physical	Please refer to Drawing
	Carton	W x H x D = TBD
Weight	N.W. / G.W.	9 Kgs / 10.5 Kgs
Container Loaded	20ft / 40ft / 40ft HQ	TBD (Sets , By pallet)

Options	Touch	Video / TV	Enhanced Panel	Others
	Resistive touch	SV + AV	Panel with LED backlight	Digital Signage(Stand alone)
	Capacitive touch	SV + AV + AV Looping	High brightness panel	Networking Digital Signage
	SAW touch	SV + AV + TV	Wide Temperature	Motion Sensor
	Infrared touch		Sunlight Readable	Light Sensor
	Protected glass			Auto-Dimming

LCD Options

LED Backlight

Introducing LED backlight options for monitors for energy efficiency and a brighter screen.

The benefits of LED-backlit LCDs include:

Longer operating life
Low power consumption
Environmental friendliness (Mercury [Hg] free)
Greater resistance to mechanical shock (no glass tubes)
Quicker illumination to stable brightness
Wide dimming ratio (to <1%)
Reduction of electronic noise (low DC drive voltage)

TouchScreen

Our LCD has a wide selection option to choose which touchscreen.technology suits for you.

	Four-Wire Resistive	Five-Wire Resistive	Pen Touch	Capacitive	Surface Wave(Saw)	Infrared Touch (Ir)
PRODUCT SIZE	1.7" - 24"	10.4" - 24"	15" - 19"	12" - 24"	10.4" - 30"	10.4" - 42"
TOUCH LIFE	1 - 2 million touches	30 - 35million touches	100 million touches	100 million touches	50 million touches	Long-term reliability
SCRATCH RESISTANCE	Hard Coated	Hard Coated	Hard Coated (SiO²)	Hard Coated (SiO²)	Glass Overlay Moh's hardness rating of 7	Glass Overlay Moh's hardness rating of 7
CONTAMINANT RESISTANCE	Resists moisture, dirt, vinegar, ammonia based food products and cleansers	Resists moisture, dirt, vinegar, ammonia based food products and cleansers	Resists moisture, dirt, vinegar, ammonia based food products and cleansers	Resists moisture, dirt, vinegar, ammonia based food products and cleansers	Resists moisture, dirt, vinegar, ammonia based food products and cleansers	Resists moisture, dirt, vinegar, ammonia based food products and cleansers
INPUT METHOD	Finger, Gloved Hand, Stylus	Finger, Gloved Hand, Stylus	Stylus Pen	Finger	Finger, Gloved Hand, Soft pliable stylus	Finger, Gloved Hand, Stylus
CONTROLLER	USB, RS232	USB, RS232	USB, RS232	USB, RS232	USB, RS232	USB, RS232

VIDEO Input

For Video inputs options:

DVI
DVI+HDMI
SVideo+AV
SVideo+AV+DVI
AV+Looping
DVI+AV+Looping
HD-SDI

Optical Bonding

Optical Bonding provides the best reduction of ambient light washout of any commercially available enhancement technology.
Optical Bonding has a lower cost than most other competing technologies.
Optical Bonding offers superior ruggedization, enhancing the display durability under vibration, shock and other environmental extremes.

RS-232 Remote Control

RS-232 Option for LCD/LED monitors.

9-36V DC Input

iTech offers a selection of DC input from 9V to 36V.

Light Sensor and Motion Sensor

iTech LCD offers Light and Motion Sensor
