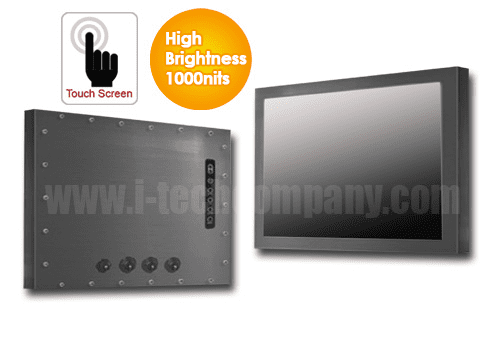

8.4" IP67 Chassis LCD 800x600, LED-1000nits, VGA+DVI, Wide Temp (-30~80°C), IP67 Cables, DC 9-36V Input (Model: ECH7-0840HB2WT-D)

IP67 Chassis 8.4" LCD, 800x600, LED-1000nits, VGA + DVI , Wide Temp (-30~80°C), w/o-Speaker, w/ Ext. Adapter, IP67 cables, SECC Metal w/ Powder coating) Integrated DC 9-36V Input (Built-in)

IP67 Chassis 8.4" LCD, 800x600, LED-1000nits, VGA + DVI , Wide Temp (-30~80°C), w/o-Speaker, w/ Ext. Adapter, IP67 cables, SECC Metal w/ Powder coating) Integrated DC 9-36V Input (Built-in)

Main Feature

    • Modular mechanism design provides flexible product configuration and easy maintenance.
    • Optional to built-in touch screen for interactive application.
    • Available with auto-brightness sensor offers application in day and night.
    • SECC + Powder coating
    • Complete custom design/solution for OEM customers
    • IP67 Compliant
    • Protected against temporary immersion (up to 1 meter for 30 minutes)
    • MIL-STD Compliant Connector
Inquiry/Quote Request
ECH7-0840HB2WT-D
  • Overview
  • Specifications
  • Download
  • Contact Sales
ECH7 Series: Rugged Completely Sealed IP67 SECC Metal w/ Powder coating Chassis/Surface Mount Dust and Waterproof LCD Monitor




Features Highlights:

  • 1. Water Proof Solution, Full IP NEMA6 Rating front and back
  • 2. Aluminum Housing Chassis Design
  • 3. AR Glass Protective Glass at front
  • 4. Optional High Brightness and Touch screen


  • IP67 Water and Dust proof connection for a higher protection
  • All Connectors are facing backward

LCD Options
  LED Backlight

Introducing LED backlight options for monitors for energy efficiency and a brighter screen.

  VIDEO Input

For Video inputs options:
  • DVI
  • DVI+HDMI
  • SVideo+AV
  • SVideo+AV+DVI
  • AV+Looping
  • DVI+AV+Looping
  • HD-SDI



  Optical Bonding

  • Optical Bonding provides the best reduction of ambient light washout of any commercially available enhancement technology.
  • Optical Bonding has a lower cost than most other competing technologies.
  • Optical Bonding offers superior ruggedization, enhancing the display durability under vibration, shock and other environmental extremes.



  RS-232 Remote Control

Remote Control Protocol: Command Code to set system




  9-36V DC Input

iTech offers a selection of DC input from 9V to 36V.



  Light Sensor and Motion Sensor

iTech LCD offers Light and Motion Sensor

Privacy Filter
Front Glass Options:
- Anti Reflective AR Glass 3mm
- Anti Reflective AR Glass 6mm Vandal-Resistance
- Anti Reflective AR Glass 8mm Vandal-Resistance
- Anti Glare AG Glass 3mm
Panel         Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low refection coating
Aspect Ratio / Size 4 : 3 / 8.4" viewable diagonal area
Active Area / Pixel Pitch 170.4(H) x 127.8(V) mm / 0.213(H) x 0.213(V) mm
Native Resolution / Colors 800(H) x 600(V) / 262 K
Brightness / Contrast 1000 cd/m2 (typ) / 600 : 1
Response Time ≤ 30 ms
Viewing Angle (typical) H. 160° (- 80° ~ + 80°) , V. 140°(- 70° ~ + 70°)
Light Source LED backlight, Long life, 35,000 hrs (typ)
Input Sources     PC System Signal Analog RGB (0.7/1.0 Vp-p, 75 ohms)
  Sync Separate Sync, Composite Sync, Sync On Green
  Frequency Fh : 30 - 82Khz , Fv : 50 -75Hz
Audio System 2W speaker x 2
Input Terminals VGA + DVI input
Convenient Features   Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
Power DC 9-36V Input (Built-in)
Power Consumption Operation / Power Saving 8.68 watt , < 2 watt (Support DPMS)
Operating Condition Temperature / Humidity -30°C ~ 80°C (-22°F ~ 176°F) , 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity -30°C ~ 80°C (-22°F ~ 176°F) , 10% ~ 90% (no condensation)
Certification   FCC , CE
Dimensions   Physical Please refer to Drawing
Carton W x H x D = TBD
Weight N.W. / G.W. 2.5 Kgs / 3.5 Kgs
Container Loaded 20ft / 40ft / 40ft HQ

TBD (Sets , By pallet)



Options Touch Video / TV Enhanced Panel Others
Resistive touch SV + AV Panel with LED backlight Digital Signage(Stand alone)
Capacitive touch SV + AV + AV Looping High brightness panel Networking Digital Signage
SAW touch SV + AV + TV Wide Temperature Motion Sensor
Infrared touch   Sunlight Readable Light Sensor
Protected glass     Auto-Dimming
