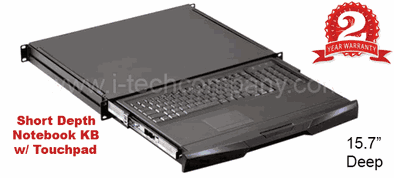

1U Rackmount Keyboard w/Touchpad Mouse 15.7" Chassis Deep Only Model: NK2e

1U Rackmount Keyboard w/Touchpad Mouse 15.7" Chassis Deep Only Model: NK2e

1U Rackmount Keyboard w/Touchpad Mouse 15.7" Chassis Deep Only Model: NK2e

Overview
Specifications
Download

Product discontinues NK2e version is EOL in Sept 19 2021, new version is NK2e-V1

Benefits:

1U keyboard drawer
104-key keyboard with either touchpad or trackball
Short depth design of 400mm
Enhanced aesthetics with molded front panel and two point lock
2-year standard warranty ( upgradable up to 5 years )

Options:

MAC or SUN Micro keyboard options available

Keyboard Selection

	Supporting layouts

Keyboard Options

Console Port
KB / MS	Combo ( USB or PS2 )
KB / MS 6ft cable : KC-2	Drawer end : DB-15 (USB KB / MS) Server end : USB type A

Physical
Dimensions ( W x D x H )	Product	442 x 400 x 44 mm 17.4 x 15.7 x 1.73 inch
	Packing	582 x 500 x 100 mm 22.9 x 19.7 x 3.9 inch
Weight	Net	8.6 kg / 18.9 lb
	Gross	10.1 kg / 22.2 lb

Mounting Distance
Keyboard drawer	410 ~ 640 mm 16.1 ~ 25.2 inch

Environment
Operating temp.	-20 to 65°C degree
Storage temp.	-20 to 60°C degree
Operating humidity	20~90%, non-condensing
Storage humidity	5 ~90%, non-condensing
Operating altitude	16,000 ft
Non-operating altitude	40,000 ft
Shock	10G acceleration ( 11ms duration )
Vibration	10~300Hz 0.5G RMS random vibration

Compliance
EMC	FCC & CE certified
Safety	CE / LVD certified
Environment	RoHS2 & REACH compliant

	Data Sheet
	User Manual
