NVP700-16e
  • Overview
  • Specifications
  • Download
Part no. NVP700-16e

LCD Drawer & KVM Benefits:
  • 1U 17" or 19" LCD console drawer
  • 104-key keyboard with a true optical mouse
  • Enhanced aesthetics with molded front handle and two point lock
  • Combo interface either PS/2 or USB for single console drawer

Drawer Features & Options:
  • S-Video + Composite ( BNC ) & Audio input
  • HDMI or DVI-D ( either one )
  • 48V, 24V or 12VDC power
Designd for:

Options:

BNC + S-Video DVI-D DC Power Audio Touchscreen


Monitor

LCD Specifications:

LCD Panel
Manufacturer
Diagonal size
17" TFT
19" TFT
Max. Resolution
1280 x 1024
1280 x 1024
Brightness (cd/m2)
250
250
Backlight
CCFL
CCF
Colors
16.7M
16.7M
Contrast Ratio (typ)
1000 : 1
1000 : 1
Viewing Angle (H/V)
160° x 160°
160° x 160°
Active area (mm)
338 x 270
376 x 301
MTBF (hrs)
50,000
50,000
Signal input
VGA
VGA
Casing Color
Black ( RAL 9005 )
Weight ( Single console )
Net
14.3 kgs
( 31.5 lbs )
15.3 kgs
( 33.7 lbs )
Gross
19.1 kgs
( 42 lbs )
20.1 kgs
( 44.2 lbs )
Environmental
Operating
0 to 50°C Degree
Storage
-5 to 60°C Degree
Relative humidity
5~90%, non-condensing
Shock
10G acceleration ( 11 ms duration )
Vibration
5~500Hz 1G RMS random vibration
Regulatory FCC, CE
Power
Input
Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption
Max. 48 Watt, Standby 5 Watt
Product Dimensions ( Single console )
NVP700
442 x 650 x 44 mm / 17.4 x 18.1 x 1.73 inch
NVP900
442 x 700 x 44 mm / 17.4 x 27.6 x 1.73 inch
Packing Dimensions ( Single console )
NVP700
595 x 860 x 140 mm / 23.4 x 33.9 x 5.5 inch
NVP900
595 x 910 x 140 mm / 23.4 x 35.8 x 5.5 inch

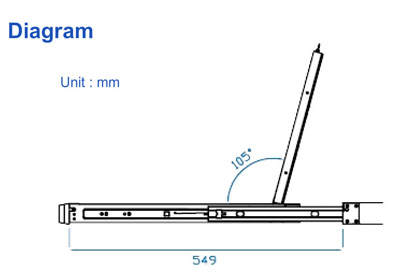

Diagram

Console Cable:
NE-6
6 feet Combo KVM cable ( bundle )
- VGA + USB or PS/2, server end
- DB15 ( VGA, USB KB & MS ), console port

Keyboard Selection:

Supporting layouts

Dimensions (with KVM):
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
NVP700 Series
442 x 650 x 44 mm
17.4 x 25.6 x 1.73 inch
595 x 860 x 140 mm
23.4 x 33.9 x 5.5 inch
14.7 kgs
( 32.3 lbs )
21.1 kgs
( 46.4 lbs )
NVP900 Series
442 x 700 x 44 mm
17.4 x 27.6 x 1.73 inch
595 x 910 x 140 mm
23.4 x 35.8 x 5.5 inch
16.3 kgs
( 35.9 lbs )
21.5 kgs
( 47.3 lbs )

KVM Integration :

(X) Stands for 17" or 19" LCD size
Matrix CAT6 KVM
Local
Remote
8-port
16-port
32-port
1
1
1
-
NVPX00 - MC1116
NVPX00 - MC1132
1
1
2
-
NVPX00 - MC2116
NVPX00 - MC2132
1
1
0
-
NVPX00 - MC0116
NVPX00 - MC0132
1
2
0
-
NVPX00 - MC0216
NVPX00 - MC0232
1
3
0
-
NVPX00 - MC0316
NVPX00 - MC0332

Combo CAT6 KVM
Local
Remote
8-port
16-port
32-port
1
0
1
NVPX00 - CIP8
NVPX00 - CIP16
NVPX00 - CIP32
1
1
0
NVPX00 - CCE8
NVPX00 - CCE16
NVPX00 - CCE32
1
0
0
NVPX00 - C8
NVPX00 - C16
NVPX00 - C32
Cat6 KVM Dongle : IF-DUSB ( VGA-USB ) / IF-DPS2 ( VGA-PS/2 ) / IF-DUSBD ( DVI-USB )

Matrix DB-15 KVM
Local
Remote
8-port
16-port
32-port
1
1
1
NVPX00 - M118
NVPX00 - M1116
-
1
1
2
NVPX00 - M218
NVPX00 - M2116
-
1
1
0
NVPX00 - M018
NVPX00 - M0116
-
1
2
0
NVPX00 - M028
NVPX00 - M0216
-
1
3
0
NVPX00 - M038
NVPX00 - M0316
-

Combo DB-15 KVM
Local
Remote
8-port
16-port
32-port
1
0
1
NVIPX00 - 82
NVIPX00 - 162
-
1
1
0
NVPX00 - CE8
NVPX00 - CE16
-
1
0
0
NVPX00 - S801
NVPX00 - S1601
-
Combo DB-15 KVM Cable : NE-6 / 10 / 15 ( 6, 10 or 15 ft )

DVI-D KVM
Local
Remote
12-port
1
0
0
NVPX00 - D12
DVI-D KVM Cable : NC-6 / 15 ( 6 or 15 ft )


Top
Click here for Specification Order Information
Click here to Compare all models

Specification
Item Description
Form Factor 1U rack mounting on slide-out rails
LCD Manufacturer SAMSUNG
Diagonal Size 17" TFT
Max. Resolution 1280 x 1024
Brightness (cd/m²) 300
Color Support 16.7 M
Contrast Ratio (typ.) 1000:1
Viewing Angle (H/V) 160° x 160°
Display Area (mm) 338 x 270
Tr Response Time (ms) 1.3
LCD Panel MTBF (hrs) 50,000
VGA Signal Input Analog RGB, 0.7Vp-p
Sync. Type Separate H/V, Composite, SOG
Resolution 720 x 400, 70 Hz
640 x 480, 60/ 70/ 72/ 75 Hz
800 x 600, 60/ 70/ 72/ 75 Hz
1024 x 768, 60/ 70/ 75 Hz
1152 x 864, 60/ 70/ 75 Hz
1280 x 720, 60/ 70/ 75 Hz
1280 x 1024, 60/ 70/ 72/ 75 Hz
Plug & Play DDC EDID 1.3
Console Port (Combo) DB-15 connector for VGA / keyboard / mouse (Combo interface)
Power Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption Max. 48 Watt, Standby 5 Watt
Compatibility Multi-platform - Mix PCs, SUNs, IBMs, HPs & DELLs
Regulation Approval FCC, CE
Options
KVM Integration Matrix & combo KVM with IP console and 2 console selection
Keyboard & mouse Full size keyboard built-in touch-pad / trackball Desk top size keyboard with touchpad / trackball
Graphic Input DVI-D, BNC & S-Video input
DC Power DC power input with 12V, 24V, 48V selection
Touchscreen Resistive & capacitive
Environmental
Operation 0° to 50°C Degree
Storage -5° to 60°C Degree
Relative Humidity 5~90%, non-condensing
Shock 10G acceleration (11ms duration)
Vibration 5~500Hz 1G RMS random vibration



PS/2 Single Console KVM Switch

Back to Top
Channel Port 8
16
PC Port Connector
(All Female Type)		 PS/2 Keyboard Mini Din 6 pin
PS/2 Mouse Mini Din 6 pin
VGA HDDB 15pin
Cascade Port Connector
(All Female Type)		 PS/2 Keyboard Mini Din 6 pin
PS/2 Mouse Mini Din 6 pin
VGA HDDB 15pin
Channel Port Connector
(All Female Type)		 HDDB 15 pin
Channel Port Connection
(Male to Male)		 HDDB 15 pin 3-in-1 Cable
PC selection On Screen Display Manual, Hot Key, Push Button
LED 1 Bank LED
4 / 8 / 16 Online Port LED (Green)
4 / 8 / 16 Selected Port LED (Red)
On Screen Display Control Yes
Scan Intervals 5~99 Sec.
Keyboard Emulation PS/2
Mouse Emulation PS/2
VGA Resolution 1920X1440
Bandwidth 200MHz
Cascade MAX Level 8 levels
MAX. PC Connection 116(4ports) / 120(8ports) / 128(16ports)
Housing Metal
Power Adapter DC 12V 1A
Operation Temperature 0~40 ℃
Storage Temperature -20 ~ 60 ℃
Humidity 0~80%, Non-Condensing

Ordering Information
KVM Support
15" LCD series
17" LCD series
1-port
NVP500e NVP700e
1-port
NVP500Ue NVP700Ue

Console
8-port
NVP500e-801 NVP700e-801
16-port
NVP500e-1601 NVP700e-1601
8-port
 NVP500e-S801 NVP700e-S801
16-port
 NVP500e-S1601 NVP700e-S1601

2 Consoles
Over CAT5
8-port
 NV500-82e NV700-82e
16-port
 NV500-162e NV700-162e
8-port
 NV500-82Ue NV700-82Ue
16-port
 NV500-162Ue NV700-162Ue

2 Consoles
Over IP
8-port
 NVIP500-82e NVIP700-82e
16-port
 NVIP500-162e NVIP700-162e
