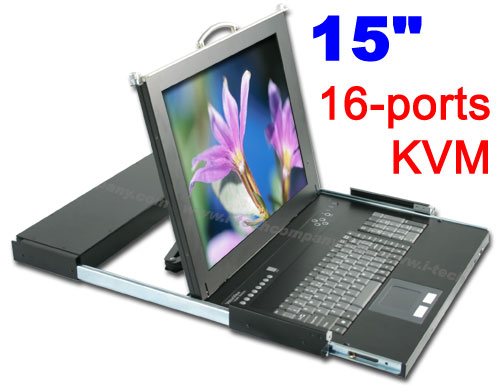

JKP11516e: 1U Rackmount 15" LCD Monitor with 16-port KVM (Installing slides made easy)

JKP11516e: 1U Rackmount 15" LCD Monitor with 16-port KVM (Installing slides made easy)

JKP11516e: 1U Rackmount 15" LCD Monitor with 16-port KVM (Installing slides made easy)

Overview
Specifications

Installation Diagram :

Features:

	Integrated 16 port KVM switch, 15" LCD flat panel, full keyboard and touchpad in a 1U rack draw
	Simple 3 steps rack mount installation-requires only one person to setup
	Control 16 servers directly from one LCD console or 256 servers (Daisy chain)
	Allow entire console slide into 1U (19") system rack-easily racked at any user-height
	Frees up valuable server room real estate-up to 85% less space than a standard keyboard/mouse & monitor installation
	Consolidates hardware and display¡Vsaving you time
	Intelligently manages k/m booting
	Autoscan for monitoring selected servers
	RGB analog LCD display-up to 1280 x 1024 with 250cd/m(sq) brightness
	Detachable console for easy repair or replacement
	Supports Windows® 9x/ NT/ 2000/ ME/ XP, NetWare5.0, Linux®, Free BSD

Package Content:

	1 User's manual
	1 YPS2 Cable
	1 Power Cord
	1 Power Adapter

Specifications:

Computer Connection	16
Computer Port
Keyboard / Mouse/ VGA	VGA: HDDB 15 Female, Keyboard: 6 pin mini DIN Female, Mouse: 6 pin mini DIN Female
Console Ports
Monitor	15" TFT LCD Display
Keyboard	106 key PS/2 keyboard with touch pad
Mouse	PS/2 6 pin mini DIN Female
VGA Resolution	1024 x 768
Dimension (W x D x H)	19 x 24 x 1.75 in 448 x 560.52 x 44.25 mm
Weight	12kg
Power Supply	AC 100 - 240V 50-60 Hz
Operating Temperature	32~104°F (0~40°C)
Storage Temperature	-4~140°F (-20~60°C)
Humidity	0~80% RH, non-condensing
