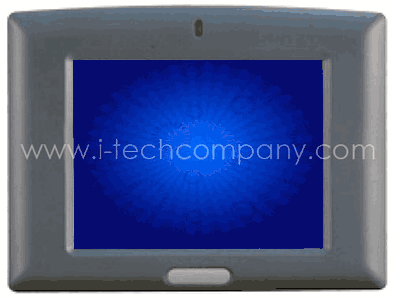

5.7" VGA Mini Fanless Touch Panel PC AMD Geode LX- 800 500 MHz Processor (Model: AFL-057A-LX)

Features
	• 5.7" VGA TFT LED backlight LCD with resistive touch screen • Compact design with plastic housing • Fanless cooling system • System memory up to 1 GB SDRAM • Built-in 802.11b/g Wireless LAN • Built-in Bluetooth module • Built-in two 1.5 W speakers • One compact flash slot • IP 64 compliant front panel

Specifications

LCD Size	5.7"
Max Resolution	640 * 480
Brightness (cd/㎡)	400
Contrast Ratio	300:1
LCD Color	262K
Pixel Pitch (mm)	0.06(H) x 0.18(V)
Viewing Angle (H-V)	140/100
Backlight MTBF	50000 hrs
SBC Model	AFLMB-LX2-800
CPU	AMD Geode? LX 800 (500MHz)
Chipset	AMD Geode? LX 800 + AMD Geode? CS5536
RAM	Supports one 1GB (maximum) 333MHz or 400MHz DDR SO-DIMM
I/O Ports and Switches	1 x RS-232 COM port (RJ-45) 1 x RS-232/422/485 COM port (RJ-45) 1 x RJ-45 for 10/100Mbps 2 x USB 2.0 1 x Power Switch 1 x Reset Button 1 x VGA port 1 x AT/ATX Switch
SSD	CF Type II
Watchdog Timer	Software programmable supports 1~255 sec. System reset
Audio	AMP 1.5W + 1.5W
Expansion	1 x Wireless LAN Module (USB Interface) 1 x bluetooth module ((USB Interface))
HDD Drive Bay	N/A
Optional GPRS Module (support GSM 850, EGSM900, DCS 1800 & PCS, 1900)	N/A
Construction Material	ABS + PC Plastic front frame Aluminum die casting body
LED Function	1 x Power ON/OFF LED on front panel
Mounting	Panel, Wall, Stand and Arm (VESA 75mm x 75mm)
Front Panel Color	Gray 7539U
Dimension (WxHxD) (mm)	180 x 135 x 55
Operation Temperature	0°C~50°C
Storage Temperature (℃)	-20°C~60°C
EMC	CE, FCC, CCC
Net Weight	0.8 Kg
IP Level(front panel)	IP 64
Safety	UL, CB
Touch Screen	Resistive Type 4-Wire (touch controller IC is on board)
Power Adapter	P/N:63000-FSP0361AD101C-RS Power: 36W Input: 90VAC~264VAC @50/60Hz Output:12VDC
Power Requirement	12VDC
Power Consumption	15W

Ordering Information

Part No.	Description
AFL-057A-LX/WT-R/256MB	5.7", 400cd/m² VGA fanless panel PC with AMD Geode™ LX 800 CPU, 256MB DDR RAM, 802.11 b/g wireless module, Bluetooth module andouch screen, RoHS
AFL-057A-LX/WT-R/512MB	5.7", 400cd/m² VGA fanless panel PC with AMD Geode™ LX 800 CPU, 512MB DDR RAM, 802.11 b/g wireless module, Bluetooth module and touch screen, RoHS

Packing List

4 * Screws ,M3;ø5mm (P/N:44013-030041-RS)	1 * Power Adapter ,90~264V;12V;36W (P/N:63000-FSP0361AD101C-RS)
1 * Power Cable ,1750MM,European (P/N:32000-000002-RS)	1 * User’s Manual ,CD ROM (P/N:7B000-000087-RS)
1 * Touch Pen (P/N:XTR104-0002-RS)
