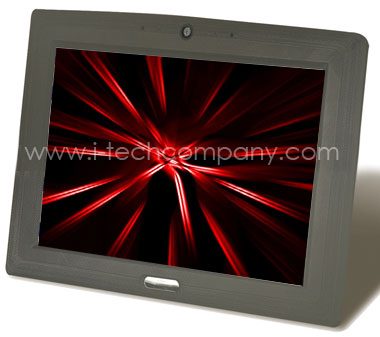

8" SVGA AFOLUX PPC with Intel® Atom™ N270 1.6G Processor (Model: AFL-08B-N270)

8" SVGA AFOLUX PPC with Intel® Atom™ N270 1.6G Processor (Model: AFL-08B-N270)

8" SVGA AFOLUX PPC with Intel® Atom™ N270 1.6G Processor (Model: AFL-08B-N270)

Inquiry/Quote Request
AFL-08B-N270
  • Overview
  • Download
Features
  • 8" LED backlight LCD panel with resistive touch screen
• Built-in 300K pixel camera with low light function
• Built-in digital microphone
• Selectable AT/ATX power mode through the switch on the chassis inside
• Fanless cooling system
• System memory up to 2 GB SDRAM
• Built-in 802.11b/g Wireless LAN
• Built-in Bluetooth module
• Built-in two 1.5 W speakers
• One compact flash slot
• IP 64 compliant front panel

Specifications

LCD Size 8"
Max Resolution 800 x 600
Brightness (cd/㎡) 300
Contrast Ratio 400: 1
LCD Color 262K
Pixel Pitch (mm) 0.0675 (H) x 0.2025 (V)
Viewing Angle (H-V) 130/120
Backlight MTBF 30000 hrs (LED backlight)
SBC Model AFLMB-945GSE-N270-R10
CPU Intel® Atom process N270 1.6GHz CPU
Chipset Intel® 945GSE + ICH7M
RAM Supports one 400MHz or 533MHz DDRII SO-DIMM(2GB Max.)
I/O Ports and Switches 1 x RS-232 COM Port
1 x RS-232/422/485 COM port
2 x RJ-45 for Giga LAN
2 x USB 2.0
1 x Power Switch
1 x Reset Button
1 x External SATA
1 x Audio Port
1 x Power Jack
SSD CF TypeII
Watchdog Timer Software programmable supports 1~255 sec. System reset
Audio AMP 1.5W + 1.5W (internal speaker)
Expansion 1 x Wireless Lan 802.11 b/g Module(internal PCIe mini card interface)
1 x Bluetooth Function(internal USB interface, Bluetooth V2.0)
Construction Front Panel ABS + PC Plastic front frame
LED Function 1 x Power ON/OFF LED on Front Panel
Mounting Panel, Wall, Rack, Stand and Arm,VESA 75mm x 75mm
Front Panel Color Gray 7539U
Dimension (WxHxD) (mm) 234 x 184 x 42
Operation Temperature -10°C ~50°C
Storage Temperature (℃) -20°C ~60°C
Net Weight 0.8 Kg
IP Level(front panel) IP64
Safety CE / FCC / CB / CCC
Touch Screen Resistive Type 4-Wire (Touch controller IC is on board)
Power Adapter P/N: 63000-FSP0361AD101C-RS
36W Power Adapter
Input: 90VAC~264VAC, 50/60Hz
Output: 12VDC
Power Requirement 12VDC
Power Consumption 25W
Camera 300K pixel with Digital Microphone

Ordering Information

Part No. Description
AFL-08B-N270/WTR/R/1GB-R10 8" 300 cd/m², SVGA fanless panel PC with Intel® Atom™ N270 1.6GHz,802.11b/g wireless module, bluetooth module, touch screen, 300K pixel Camera with Digital Microphone, 1GB DDR2 533MHz, RoHS

Packing List

4 * Screws Pack (P/N:44013-030041-RS) 1 * Power Adpater (P/N:63000-FSP0361AD101C-RS)
1 * Power Cord (P/N:32000-000002-RS) 1 * Utilities CD (P/N:7B000-000087-RS)
1 * Touch Pen (P/N:XTR104-0002-RS)
