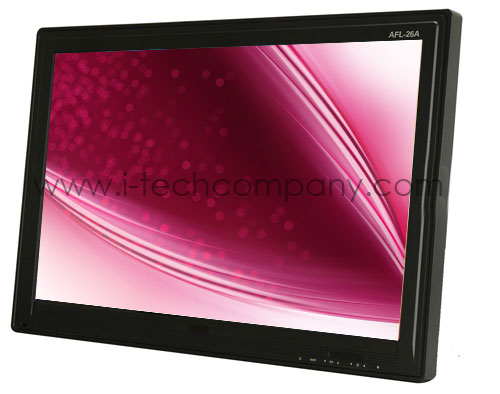

26" 350cd/m² WUXGA panel PC with AMD Athlon 64 X2 Dual-Core Processor 5050e CPU (Model: AFL-26A-AM2)

Overview
Download

Features

* WiFi 802.11b/g/n connection (26” with invisible antenna)
* Built-in two speakers
* Built-in Bluetooth technology rids systems of cables and allows wireless
* connection to peripheral devices like head phones, printers, barcode readers or game controllers
* The Ambient Light Sensor helps conserve energy
* VESA-mountable for flexibility in mounting and deployment
* Comprehensive set of USB and full legacy I/O ports for peripherals and accessories
* Support for Windows Windows XP Embedded (Optional)

Specifications

LCD Size	26"
Max Resolution	1920 x 1200
Brightness (cd/㎡)	350
Contrast Ratio	1500:1
LCD Color	16.7M
Pixel Pitch (mm)	0.2865(H) x 0.2865(V)
Viewing Angle (H-V)	176/176
Backlight MTBF	50,000
SBC Model	AFLMB-690EAM2
CPU	AMD Athlon 64 X2 Dual-Core Processor 5050e CPU
Chipset	AMD 690E
RAM	Supports one 2GB (Maximum) 400MHz, 533MHz, 667MHz or 800MHz DDRII SO-DIMM
I/O Ports and Switches	1 x RS-232 2 x USB 2.0 1 x RS-232/422/485 1 x Power Switch 1 x Reset Button 2 x LAN Ports 1 x Audio Jack
SSD	CF Type II
Watchdog Timer	Software programmable supports 1~255 sec. System reset
Audio	AMP 6W + 6W
Expansion	1 x Wireless 802.11 b/g/n Lan Module (Mini PCIe Interface) 1 x Bluetooth Module (USB Interface)
HDD Drive Bay	1 x 2.5" SATA HDD bay
Construction Material	ABS + PC Plastic front frame
LED Function	1 x Power ON/OFF LED on Front Panel
Mounting	Wall, Stand and Arm VESA 200mm x 100mm
Front Panel Color	Black C
Dimension (WxHxD) (mm)	623 x 425 x 100
Operation Temperature	0oC ~40oC With HDD 0oC ~45oC With CF Card or SATA interface 2.5" SSD HDD
Storage Temperature (℃)	-20oC ~60oC
Net Weight	12 Kg
IP Level(front panel)	IP64
Touch Screen	Surface Accoustic Wave Type (optional)
Smart OSD	1. OSD Keypad below the Front Panel 2. Remote Control for OSD Function
Power Requirement	100VAC~240VAC, 50/60Hz
Power Consumption	187W
HSDPA Mobile Solution (Optional)	1 x HSDPA Mobile Module (USB Interface)

Ordering Information

Part No.	Description
AFL-26A-AM2/WT-S/1GB-R11	26" 350cd/m² WUXGA panel PC with AMD socket AM2 Athlon 64 X2 Dual-Core 5050e 2.6GHz CPU,1GB DDR2 RAM,802.11 b/g/n wireless module,SAW touch screen,Bluetooth,RoHS
AFL-26A-AM2/W/1GB-R11	26" 350cd/m² WUXGA panel PC with AMD socket AM2 Athlon 64 X2 Dual-Core 5050e 2.6GHz CPU,1GB DDR2 RAM,802.11 b/g/n wireless module,Bluetooth,RoHS

Packing List

1 * Power Cord	1 * Remote Controller with Battery
1 * User's Manual

Option

Quick Mounting Technology

• Install Anywhere

The AFOLUX PPC/Monitor series with VESA standard mounting holes design, can be mounted virtually anywhere and
in any forms including wall mounting, stand and arm options, giving you the flexibility to place the system in the best
location.
