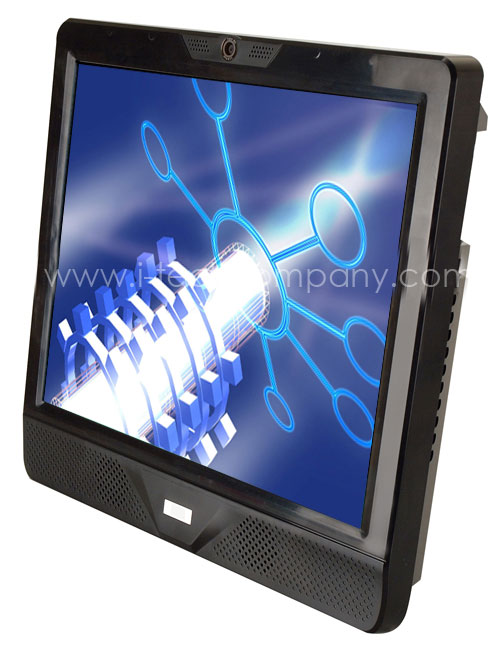

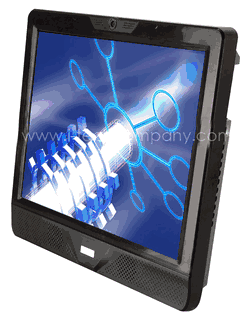

17 inch Core2 Duo Industrial KIOSK Panel PC (Model: AFL-317A)

Overview
Download

Features

• Sophisticated high reflection surface
Smooth and easy cleaning surface easily fits any kind of KIOSK enclosure
• All-in-one highly integrated design
Multiple functions and connectors built in the one unit system fits all self service
solutions and not only decreases maintenance time but also saves the space
considerably
• Versatile mounting solutions and back IO design allows installed in minutes
Faster installation into device such as KIOSK and ATM
• IP 64 front panel compliance
System operation in a dusty or wet rigorous environment

Specifications

LCD Size	17”
Max Resolution	1280 x 1024
Brightness (cd/㎡)	300
Contrast Ratio	800:1
LCD Color	16.7M
Pixel Pitch (mm)	0.264(H) x 0.264(V)
Viewing Angle (H-V)	160º / 160º
Backlight MTBF	50,000 hrs
SBC Model	AFLMB-9454
CPU	IntelR Dual Core Desktop Processor(E2160) 1.8GHz or others
Chipset	Intel® 945G
I/O Ports and Switches	1 x 12V/24V DC Input Jack 1 x PS/2 3 x RS-232 COM port 1 x RS-232/422/485 COM port 1 x RJ-12, 12V/24V Cash Drawer Port 1 x RJ-45 for GbE LAN 8 x USB 2.0 1 x Power Switch 1 x Reset Button
SSD	CF Type II
Watchdog Timer	Software Programmable supports 1~255 sec. System reset
Audio	AMP 1.5W+AMP 1.5W (Built-in Stereo Speakers)
Expansion	1 x PCIe mini card 1 x Mini PCI Interface (Wireless LAN 802.11 a/b/g Module ) 1 x Bluetooth module (USB interface, Bluetooth V2.0)
HDD Drive Bay	1 x 3.5” SATA HDD bay or 1 x 2.5” SATA HDD bay
Construction Material	ABS + PC Plastic front frame
Mounting	Panel, Wall, Stand and Arm (VESA 100mm x 100mm)
Front Panel Color	Black or White
Dimension (WxHxD) (mm)	400 x 380 x 107
Operation Temperature	0°C~45°C
Storage Temperature (℃)	-20°C~80°C
EMC	CE, FCC, CCC
Net Weight	13.4 kg
IP Level(front panel)	IP 64
Safety	UL, CB
Touch Screen	Resistive Type 5-Wire (touch controller IC is on board) or Capacitive type touch screen without CF slot
Power Adapter	ACE-D825AH: 252W Input: 90VAC~264VAC @ 50/60Hz Output:12VDC at 15A, 24VDC at 3A
Power Consumption	127 W
ODD Drive Bay	1 x slim type ODD bay

Ordering Information

Part No.	Description
AFL-317AB-945-E2160/WT-R/1GB-R10	17" 300cd/m2 SXGA panel PC w/ Dual-Core E2160 1.8GHz CPU,1GB DDR2 RAM, 802.11 a/b/g wireless module,touch screen, 300K pixel Camera with microphone, Bluetooth,black color
AFL-317AW-945-E2160/WT-R/1GB-R10	17" 300cd/m² SXGA panel PC w/ Dual-Core E2160 1.8GHz CPU,1GB DDR2 RAM, 802.11 a/b/g wireless module,touch screen, 300K pixel Camera with microphone, Bluetooth,white col

Packing List

1 * Power Cable	1 * Utility CD
1 * Screw Kit	1 * Touch Pen
1 * 252 W PSU
