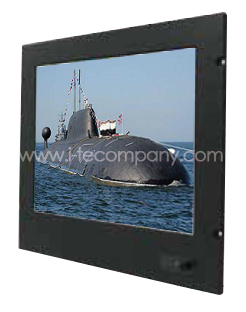

Transflective Sunlight Reable 19" LCD Intel Dual Core Atom N2600 1.6Ghz Platform Marine Panel PC (Model: WPM-MAR-PC-1900A2).

Transflective Sunlight Reable 19" LCD Intel Dual Core Atom N2600 1.6Ghz Platform Marine Panel PC (Model: WPM-MAR-PC-1900A2).

Transflective Sunlight Reable 19" LCD Intel Dual Core Atom N2600 1.6Ghz Platform Marine Panel PC (Model: WPM-MAR-PC-1900A2).

WPM-MAR-PC-1900A2
  • Overview
  • Download

Features

  • Intel® Dual Core Atom N2600 Platform, Fanless Design
  • Dimming knob control backlight brightness from nearly 0% to 100%
  • Transflective film technology enhance visibility
  • Panel (flush) mount IP66 aluminum housing with powder coating design (IP54 rear)
  • 9 to 36V DC power input acceptable
  • High quality touchscreen / AR protection glass for option
  • Ease of use front panel OSD control
  • Enhanced shock and vibration resistance


Specifications

TFT Characteristics
Size 19"
Resolution 1280x1024
Pixel Pitch (RGB) 0.294(H) x 0.294(V)
Contrast Ratio 1000:1
Brightness 350(typ.)
Viewing Angles 85:85(H) ; 80:80(V)
Active Display Area 376.32(H) x 301.06(V)
Max Colors 16.7M,6 bit
System Specifications
Processor Intel® Dual Core Atom N2600 1.6GHz
BIOS AMI 4Mbit Flash
System Chipset Intel NM10 express chipset
Memory Slot 1 x SODIMM DDR3-800 max.4GB (Default 2 GB)
SATA 1 x SATA2
Ethernet Dual Broadcom BCM57780 GbE controller
VGA 1x VGA Connector
Audio Realtek ALC886 HD Audio Codec
USB Ports 2 x USB2.0
Serial Ports 1 x RS232/422/485
Hard Drive 32GB SSD
Expansion slot 4 x RS232 or 4 x Isolate RS422/485(optional)
Power Specifications
Power Supply Options 9 to 36 V DC power supply with terminal block.
Power Consumption 100 W typical, normal operation
Mechanical and Environment
Operating Temperature -15 to 55 deg.C
Operating Humidity 5% to 95% (non condensing)
Anti-Vibration 5Hz~500Hz / 1Grms /3 Axis
Anti Shock 15G, 11ms duration
I/O Connectors
Ethernet LAN 2 x RJ 45-10/100/1000 Mbps
COM 1 x RS232/422/485
USB 2 x USB Type-A Receptacle
RGB Out 1 x VGA 15P DSUB (female)
Power Input 1 x DC Terminal block
Available Options
Mechanical Options Panel (Flush) mount with IP66 (SAW touch for IP54)
Touch Screen Options SAW, 5 Wire Resistive
AR Safety Glass Option 3mm Anti-reflective protection glass
VESA Mounting Yes
Bracket mount Yes(Bracket Stand for option)
Transflective Yes
Certification and Approvals
Certification IEC60945、DNV、IACS-E10、CE, FCC
Outdoor Readability
Brightness gain (nit) 350

*Due to Panel material's deviation, different panel supplier will set different specific variance range to optical characteristics. The factors of time used, Lamp current, Ambient temperature will influence the optical measurements.
