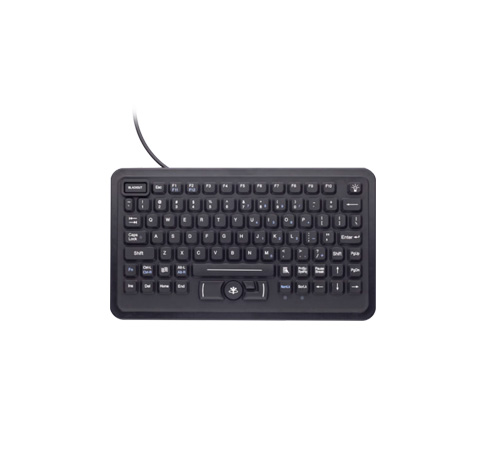

Panel Mount Keyboard with Emergency Key MIL-STD-461G standards and NEMA 4X (Model: Ymil-PM900)

Panel Mount Keyboard with Emergency Key MIL-STD-461G standards and NEMA 4X, Certifications: NEMA 4X, CE UL60950, FCC Part 15 Class B, MIL-STD-461-E

Panel Mount Keyboard with Emergency Key MIL-STD-461G standards and NEMA 4X, Certifications: NEMA 4X, CE UL60950, FCC Part 15 Class B, MIL-STD-461-E

Inquiry/Quote Request
Ymil-PM900
  • Overview
  • Specifications
  • Download
Crafted to adhere to MIL-STD-461G standards, the Ymil-PM900 proves optimal for rugged environments where electromagnetic interference poses significant challenges. Moreover, it incorporates an emergency key which, upon activation, triggers a Shift+F1 signal and illuminates for a duration of 30 seconds. With the integration of the Force Sensing Resistor, this model presents an enhanced pointing device characterized by heightened sensitivity and extended durability. Its fully sealed and rugged construction, when appropriately sealed, aligns with NEMA 4X specifications, guaranteeing resilience against environmental elements and inadvertent spills.


Features:
  • 12 function keys
  • Full 86-key functionality
  • Crafted to adhere to MIL-STD-461G specifications
  • Built-in backlighting for enhanced visibility
  • Features an integrated Force Sensing Resistor pointing device
  • Includes a one-touch emergency key for quick response
Certifications NEMA 4X, CE UL60950, FCC Part 15 Class B, MIL-STD-461-E
Shock 3x11 ms pulses of 50g on each of 3 axis
CABLE LENGTH: 4 feet (1.2 meters) DESIGN: "Y" PS/2 Cable (providing separate keyboard and mouse connections)
Key Switch MATERIAL: Industrial Silicone Rubber LIFE: Greater than 10 Million Cycles TRAVEL: 0.055 in. (1.4mm)
ACTUATION FORCE: 7.05 oz. +/- 1.06 oz. (200g +/- 30g) FEEDBACK: Tactile with Mechanical Snap
Vibration POWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours
Power PS2: KEYBOARD: 160mA@5V (from Keyboard port) POINTER: 55mA@5V (from Mouse port) USB: 215mA@5V (from CPU port)
FLAMMABILITY PRINTED CIRCUIT BOARD: 94 VO SILICONE OVERLAY: 94 HB INTERFACE CABLE: 94 VO
Compatibility PS/2 KEYBOARD/POINTER: All Windows Operating Systems USB KEYBOARD/POINTER: All Windows and Macintosh OS
Temperature Range STORAGE: -40C to +158C (-40F to +70F) OPERATING: -4C to +140C (-20F to +60F)
Weight 1.75 lbs +/- 0.10 lbs (0.79 kg +/- 0.05kg)
Warranty 1 Year Limited Warranty
Humidity 100% Humidity Resistant
Dimensions 11.80" x 6.79" x 1.35" (w-h-d) 299.7mm x 172.5mm x 34.3mm
CUTOUT: 10.40" x 5.40" (w-h) 264.2mm x 137.2
