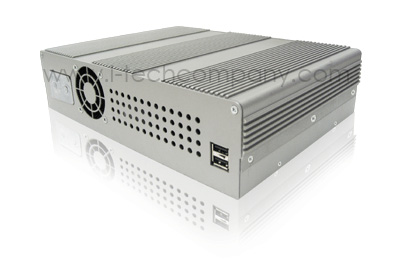

Dual Display PC with Four Serial Ports(2xOptional), Dual Giga LAN,Six USB, Fan or Fanless BOX PC (Model: WMD-200A2)

Dual Display PC with Four Serial Ports(2xOptional), Dual Giga LAN,Six USB, Fan or Fanless BOX PC (Model: WMD-200A2)

Dual Display PC with Four Serial Ports(2xOptional), Dual Giga LAN,Six USB, Fan or Fanless BOX PC (Model: WMD-200A2)

Inquiry/Quote Request
WMD-200A2
  • Overview
  • Download
Features
  • Socket AM2 AMD Athlon 64/Athlon 64 X2 35W/65W CPU
  • AMD M690G + SB600 Chipset
  • Aluminum Profile With Fin, Ultra compact size with Rugged Design
  • Storage devices, One 2.5-inch SATA HDD
  • Multiple I/Os,Four Serial Ports(2xOptional)and Six USB Ports
  • Dual View Function, VGA and DVI output interface


System Specification
Processor AMD Athlon 64 X2 / Athlon 64 35W/65W CPU, up to 2.6 GHz
BIOS Phoenix 8Mbit Flash
System Chipset AMD M690G / SB600 chipset
System Memory 2 x DIMM, Max 4GB DDR2 800
Graphic Interface AMD M690G integrated
Graphic Memory Shared momery, max. 256MB
Ethernet Controller Dual Realtek RTL8111B Gigabit LAN
Serial 3 x RS232(1xOptional), 1 x RS232/422/485(Optional)* ports
USB 6 x USB ports, USB 2.0 compliant
Graphic Specification
Graphic Controller AMD M690G integrated
Graphic Memory Up to 256MB
Graphics Output Connector DVI-D and VGA
Graphic Output Resolution 1920 x 1200 Mode(Per Pixels)
Max. of Computer Monitors 1 / 1 / 2 (Digital/Analog/Total)
Stretched Desktop Mode Support up to 3840 x 1200 (Overall Pixels)
Rotation Mode Support Rotation of all displays 90° or 270°
Clone Mode Support Clone Mode
I/O Connectors
Front Side I/O
  • 2 x USB Type-A Receptacle
  • 1 x Power/HDD LED
  • 1 x Power Reset Button
  • 1 x Power on Button
    		•
    Back Side I/O
  • 2 x RJ-45(10/100/1000 Mbps)
  • 2 x PS/2
  • 1 x VGA 25P DSUB,1 x DVI-out Conn(male)
  • 4 x USB Type-A Receptacle
  • 3xRS232(1xOptional)1xRS232/422/485(Optional)
    		•
    Mechanical
    Dimensions (L x W x H) 264mm x 192mm x 67 mm
    Color S:Silver
    Construction Aluminum housing / Metal
    Power Input +12V DC IN (Lockable, Power Jack)
    Power source range Typical 60 W power consumption
    Note: All Specifications are subject to change without prior notice!
    *If you use SBC on-board RS485, you need to set appropriate state of RTS line before sending/receiving data in your software program.We offer additional board that can perform auto-direction hardware function.
