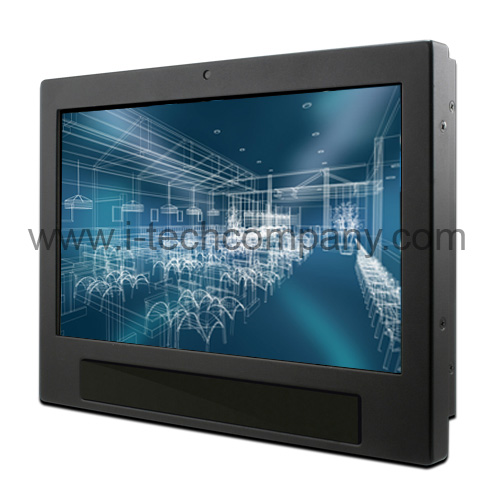

10" Wide WSXGA Resistive Touch Panel PC, Intel Atom D525 1.8G, IP-65 Compliant Front Panel (Model: VDPCW1000AT5)

10" Wide WSXGA Resistive Touch Panel PC, Intel Atom D525 1.8G, IP-65 Compliant Front Panel (Model: VDPCW1000AT5)

10" Wide WSXGA Resistive Touch Panel PC, Intel Atom D525 1.8G, IP-65 Compliant Front Panel (Model: VDPCW1000AT5)

Inquiry/Quote Request
VDPCW1000AT5
  • Overview
  • Download
Product discontinues. Contact us at Info@iTechLCD.com for replacement item.

Features

  • 10.1” WSVGA Digital Signage Panel PC
  • 5-wire Resistive Touch Screen
  • Intel® Atom™ D525 Dual-Core 1.8GHz CPU
  • Gigabit Ethernet, 5.1-CH Audio, 2W AMP
  • CF, 1 COM, 3 USB, Mini PCIe
  • Optional 1.3M Camera, WiFi Module
  • Fanless System & VESA Compliance
  • Wide Voltage +12V ~ +28V Input, ErP Power
  • Full Aluminum Design for 1.24kg Only
  • IP65 Compliant Front Panel
  • CE/ FCC with Class B


Specifications

Panel
LCD Size 10.1”, 17:10
Resolution 1024 x 600
Pixel Pitch 0.21525mm (H) x 0.21525mm (V)
Luminance 250cd/m²
Contrast Ratio 500
Viewing Angle 50 (U), 60 (D), 70 (L), 70 (R)
Response Time 25ms
Backlight LED Backlight
Touch Type 5-wire Resistive
Touch Light Transmission 80%
Touch Interface USB
System
CPU Onboard Intel® Atom™ D525 Dual-Core 1.8GHz CPU
BIOS AMI 8Mbit Flash BIOS
System Chipset Intel® ICH8-M Chipset (2.4W)
I/O Chip Winbond W83627DHG
System Memory Onboard 1 GB Up to 2GB & One 204-pin DDR3 SODIMM Supports Up to 4GB DDR3 800 SDRAM
SSD One CF Socket Supports Type I/II Compact Flash Card
Hard Driver Bay Optional One 2.5” HDD or SSD
WiFi Optional Mini PCIe WiFi 802.11b/g/n
Watchdog Timer Reset: 1 ~ 255min. and 1sec. or 1min./step
H/W Status Monitor Monitoring System Temperature, Voltage, with Auto Throttling Control
Expansion 2 x Mini PCIe
External I/O
Serial Port 1 x RS-232/422/485 (Selected by Jumper)
Ethernet 1 x RJ-45 (Intel® 82574L Gigabit Ethernet, Optional Dual 82574L Gigabit Ethernet)
VGA 1 x DB-15
Audio port 1 x Line-out (Realtek ALC888 Supports 5.1-CH Audio)
USB 3 x USB 2.0 (1 is behind front panel PMMA cover for USB dongle under 26.5 x 76 x 12.3mm)
Speaker 2 x 2W Speaker
Mouse & K/B 1 x PS/2 KB & MS
Mechanical & Environmental
Color Front & Rear Panel Black
Mounting Wall/ Stand/ VESA 75mm x 75mm
System Power Requirement +12 ~ 28V DC Power Input
Power Adapter Input: 100 ~ 250VAC/ 47 ~ 63Hz; Output: 60W Adapter (12V @ 5A Adapter)
Operating Temp -10 ~ 40°C (14 ~ 104°F)
Storage Temp -20 ~ 75°C (-4 ~ 167°F)
Operating Humidity 5% ~ 90% Relative Humidity, Non-condensing
Dimensions 252.8mm x 190mm x 44.4mm
Weight 1.24Kgs/ 1.34Kgs (w/ HDD)
* Product specifications are subject to change without notice.
