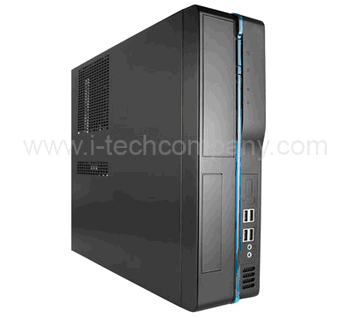

DVM04-i3

The iTechLCD Multi Screen Appliance (DVM04) powers multiple screens for digital signage applications. Featuring the powerful and energy-efficient Intel® Core™ processor, the DVM04 includes the latest graphics technology with up to 4 DVI connectors for high-quality video and optimal display experience.
Combined with the industry-leading iTechLCD Content Manager Software, one DVM04 is capable of driving dynamic content on up to 4 screens, while communicating with the server for continuous updates. These screens can be configured into one large video wall or they can be spread out to serve separate areas. Each screen has the ability to deliver up to 1920 x 1080 (Full HD) resolution on each screen.


Features

  • Drives up to 4 screens; Full HD content supported on each screen
  • Supports up to 3840 x 2160, 4 times the pixel resolution of existing Full HD digital signage
  • Up to 16 different zones of content for each display wall
  • Content flexibility for image, flash and multimedia file formats stretched across multiple screens or played on a single screen
  • Intuitive remote management with iTechLCD Content Manager software; manage up to 16 zones

Specifications

ltem
DVM04
Processor Intel® Core™ i3, 2.93GHz;
upgrade option: Intel® Core™ i5, 3.20GHz or
Quad-Core™ i7, 2.8GHz
Memory (RAM) Minimum configuration: 4GB DDR3; 8GB upgrade (optional)
Memory (Storage) Minimum configuration: 250GB SATA HDD
Graphics High-performance graphics for 4 DVI output
Display Resolution

3840 x 2160 for 2 x 2 digital signage array
(Max. resolution 1920 x 1080 per display)

Display Connectors 4
Operating System Microsoft® Windows® Embedded Standard 7
Software iTechLCD® Content Manager
LAN 1 Gigabit LAN
Network Interface WLAN (Optional via internal PCI-Express slot or external USB)
Power Supply

300W ATX

Fan Yes
Interface I/O port

1 PS/2 (Keyboard or Mouse)
1 COM port
1 IEEE 1394 port
1 LAN(RJ45) port
12 USB 2.0/1.1
8 Channel Audio I/O

Front Controls Power on/off; system reset; 4 USB ports (2.0); 1 Audio out; 1Mic
Front Indicators Power and HDD
Dimensions (H x W x D) 95.3 x 330.2 x 393.7 (mm)/ 3.75 x 13 x 15.5 (in)
Weight 6.58 kg/ 14.51 lbs
Temperature Operation: 0°C – 40°C; Storage: -20°C – 60°C
Humidity 5% ~ 95% non-condensing
*note* Specifications subject to change without notice



Major Option

  • Video capture card with HDMI, component, composite and S-video inputs
    ※The content input with HDCP (High-Bandwidth Digital Content Protection) will not be supported.

*note* Specifications subject to change without notice


Multi Screen Appliance – DVM02/ DVM04/ DVW08/ DVW1600 Comparison

Model DVM02 DVM04 DVW08 DVW1600
System
Processor Intel® Core™ i3, 2.93GHz;
upgrade option: Intel® Core™ i5, 3.20GHz
Intel® Core™ i3, 2.93GHz;
upgrade option: Intel® Core™ i5, 3.20GHz or Quad-Core™ i7, 2.8GHz
Intel® Quad-Core™ i7, 2.8GHz
Graphic Card N/A ATI FirePro Multiview™
RAM 4GB DDR3; 8GB upgrade (optional)
Storage 250GB HDD
Operating System Microsoft® Windows® Embedded Standard 7
Display Resolution 2160 x 1920 for 1 x 2 digital signage array (max. resolution 1920 x 1080 per display) 3840 x 2160 for 2 x 2 digital signage array (Max. resolution 1920 x 1080 per display) Support up to dual 3840 x 2160 digital signage array (Max. resolution 1920 x 1080 per display) 7680 x 4320 for 4 x 4 digital signage array (Max. resolution 1920 x 1080 per display)
Video Resolution Full-HD/ Dual Full-HD Full-HD/ QFHD Full-HD/ Dual QFHD Full-HD/ Super High Vision
Wireless Connection 10/ 100/ 1000Mb BaseT LAN;
Wi-Fi 802.11 a/b/g (optional)
Dual 10/ 100/ 1000Mb BaseT LAN;
Wi-Fi 802.11 a/b/g (optional)
Software Compatibility
Compatible with WCM 3.2 or above
I/O Ports
Video Out High-performance graphics for 1 DVI-I and 1 HDMI outputs High-performance graphics for 4 DVI outputs High-performance graphics for 8 DVI outputs High-performance graphics for 4, 8, 12 or 16 DVI outputs (Quad DVI per card)
Audio Jack 3.5mm phone jack x 8 3.5mm phone jack x 8 3.5mm phone jack x 6 3.5mm phone jack x 6
digital outputs x 2
USB 8 12 10 10
Serial Port N/A RS232 x 1 N/A N/A
Ethernet RJ45 connector for Ethernet x 1 RJ45 connector for Ethernet x 2
IEEE 1394 port 1 1 1 1
Optional ports WLAN (Optional via internal PCI-Express slot or external USB)
Power
AC/DC Adapter 200W ATX 300W ATX 400W ATX 350W ATX
Mechanical and Environmental
Dimensions
(H x W x D)
4.09 x 10.4 x 13.3 (in)/
104 x 265 x 338 (mm)
3.75 x 13 x 15.5 (in)/
95.3 x 330.2 x 393.7 (mm)
3.5 x 16.8 x 15.4 (in)/
88 x 427 x 391 (mm)
3.5 x 19 x 17 (in)/
88.2 x 482.6 x 431 (mm)
Base Weight 8.7 lbs/ 3.94 kg 14.51 lbs/ 6580 g 19.4 lbs/ 8800 g 22.16 lbs/ 10050 g
Enclosure Aluminum + steel
Temperature Operation: 0°C – 40°C; Storage: -20°C – 60°C
Operating Humidity 5% – 95% non-condensing

* Specifications subject to change without notice
