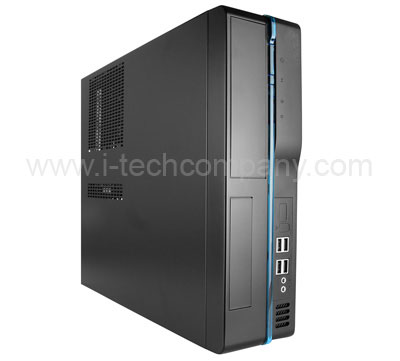

High-performance graphics for 4 DVI outputs, Intel® Core i5, 1920 x 1080 per display. (Model: DVM04-i5)

Overview
Download

The iTechLCD Multi Screen Appliance (DVM04) powers multiple screens for digital signage applications. Featuring the powerful and energy-efficient Intel® Core™ processor, the DVM04 includes the latest graphics technology with up to 4 DVI connectors for high-quality video and optimal display experience.
Combined with the industry-leading iTechLCD Content Manager Software, one DVM04 is capable of driving dynamic content on up to 4 screens, while communicating with the server for continuous updates. These screens can be configured into one large video wall or they can be spread out to serve separate areas. Each screen has the ability to deliver up to 1920 x 1080 (Full HD) resolution on each screen.

Features

Drives up to 4 screens; Full HD content supported on each screen
Supports up to 3840 x 2160, 4 times the pixel resolution of existing Full HD digital signage
Up to 16 different zones of content for each display wall
Content flexibility for image, flash and multimedia file formats stretched across multiple screens or played on a single screen
Intuitive remote management with iTechLCD Content Manager software; manage up to 16 zones

Specifications

ltem	DVM04
Processor	Intel® Core™ i3, 2.93GHz; upgrade option: Intel® Core™ i5, 3.20GHz or Quad-Core™ i7, 2.8GHz
Memory (RAM)	Minimum configuration: 4GB DDR3; 8GB upgrade (optional)
Memory (Storage)	Minimum configuration: 250GB SATA HDD
Graphics	High-performance graphics for 4 DVI output
Display Resolution	3840 x 2160 for 2 x 2 digital signage array (Max. resolution 1920 x 1080 per display)
Display Connectors	4
Operating System	Microsoft® Windows® Embedded Standard 7
Software	iTechLCD® Content Manager
LAN	1 Gigabit LAN
Network Interface	WLAN (Optional via internal PCI-Express slot or external USB)
Power Supply	300W ATX
Fan	Yes
Interface I/O port	1 PS/2 (Keyboard or Mouse) 1 COM port 1 IEEE 1394 port 1 LAN(RJ45) port 12 USB 2.0/1.1 8 Channel Audio I/O
Front Controls	Power on/off; system reset; 4 USB ports (2.0); 1 Audio out; 1Mic
Front Indicators	Power and HDD
Dimensions (H x W x D)	95.3 x 330.2 x 393.7 (mm)/ 3.75 x 13 x 15.5 (in)
Weight	6.58 kg/ 14.51 lbs
Temperature	Operation: 0°C – 40°C; Storage: -20°C – 60°C
Humidity	5% ~ 95% non-condensing
note Specifications subject to change without notice

Major Option

Video capture card with HDMI, component, composite and S-video inputs
※The content input with HDCP (High-Bandwidth Digital Content Protection) will not be supported.

*note* Specifications subject to change without notice

Multi Screen Appliance – DVM02/ DVM04/ DVW08/ DVW1600 Comparison

Model	DVM02	DVM04	DVW08	DVW1600
System
Processor	Intel® Core™ i3, 2.93GHz; upgrade option: Intel® Core™ i5, 3.20GHz	Intel® Core™ i3, 2.93GHz; upgrade option: Intel® Core™ i5, 3.20GHz or Quad-Core™ i7, 2.8GHz		Intel® Quad-Core™ i7, 2.8GHz
Graphic Card	N/A	ATI FirePro Multiview™
RAM	4GB DDR3; 8GB upgrade (optional)
Storage	250GB HDD
Operating System	Microsoft® Windows® Embedded Standard 7
Display Resolution	2160 x 1920 for 1 x 2 digital signage array (max. resolution 1920 x 1080 per display)	3840 x 2160 for 2 x 2 digital signage array (Max. resolution 1920 x 1080 per display)	Support up to dual 3840 x 2160 digital signage array (Max. resolution 1920 x 1080 per display)	7680 x 4320 for 4 x 4 digital signage array (Max. resolution 1920 x 1080 per display)
Video Resolution	Full-HD/ Dual Full-HD	Full-HD/ QFHD	Full-HD/ Dual QFHD	Full-HD/ Super High Vision
Wireless Connection	10/ 100/ 1000Mb BaseT LAN; Wi-Fi 802.11 a/b/g (optional)			Dual 10/ 100/ 1000Mb BaseT LAN; Wi-Fi 802.11 a/b/g (optional)
Software Compatibility	Compatible with WCM 3.2 or above
I/O Ports
Video Out	High-performance graphics for 1 DVI-I and 1 HDMI outputs	High-performance graphics for 4 DVI outputs	High-performance graphics for 8 DVI outputs	High-performance graphics for 4, 8, 12 or 16 DVI outputs (Quad DVI per card)
Audio Jack	3.5mm phone jack x 8	3.5mm phone jack x 8	3.5mm phone jack x 6	3.5mm phone jack x 6 digital outputs x 2
USB	8	12	10	10
Serial Port	N/A	RS232 x 1	N/A	N/A
Ethernet	RJ45 connector for Ethernet x 1			RJ45 connector for Ethernet x 2
IEEE 1394 port	1	1	1	1
Optional ports	WLAN (Optional via internal PCI-Express slot or external USB)
Power
AC/DC Adapter	200W ATX	300W ATX	400W ATX	350W ATX
Mechanical and Environmental
Dimensions (H x W x D)	4.09 x 10.4 x 13.3 (in)/ 104 x 265 x 338 (mm)	3.75 x 13 x 15.5 (in)/ 95.3 x 330.2 x 393.7 (mm)	3.5 x 16.8 x 15.4 (in)/ 88 x 427 x 391 (mm)	3.5 x 19 x 17 (in)/ 88.2 x 482.6 x 431 (mm)
Base Weight	8.7 lbs/ 3.94 kg	14.51 lbs/ 6580 g	19.4 lbs/ 8800 g	22.16 lbs/ 10050 g
Enclosure	Aluminum + steel
Temperature	Operation: 0°C – 40°C; Storage: -20°C – 60°C
Operating Humidity	5% – 95% non-condensing

* Specifications subject to change without notice
