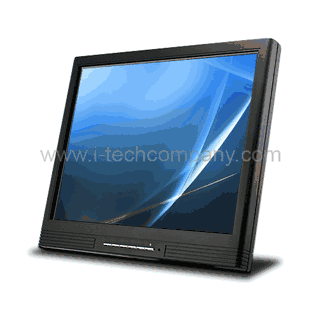

Fanless Multifunctional Plastic 15" Resisitive Touch Panel PC, Intel Atom D525 1.8GHz, IP-65 Compliant Front Panel (Model: VPPC1500AT)

Fanless Multifunctional Plastic 15" Resisitive Touch Panel PC, Intel Atom D525 1.8GHz, IP-65 Compliant Front Panel (Model: VPPC1500AT)

Fanless Multifunctional Plastic 15" Resisitive Touch Panel PC, Intel Atom D525 1.8GHz, IP-65 Compliant Front Panel (Model: VPPC1500AT)

Overview
Download

Features

15” 5-wire Resistive XGA TFT
Intel® Atom™ D525 Dual-Core 1.8GHz CPU
VGA, Audio, 2W Amplifier
Intel® 82574L Gigabit Ethernet
Mini PCIe, 1 CF, 1 COM, 2 USB
Supports 2.5" SATA HDD
Wide Voltage +12V ~ 28V, ErP Power
Fanless Operation, VESA Compliance
Programmable Function Key

Specifications

Display Screen

LCD Size	15”, 4:3
Display Type	XGA TFT
Resolution	1024 x 768
Color	16.7M
Pixel Pitch	0.297mm (H) x 0.297mm (V)
Luminance	300cd/m2
Contrast Ratio	500
Viewing Angle	70 (U), 70 (D), 75 (L), 75 (R)
Response Time	8ms
Backlight	2 x CCFL
Touch Screen	5-wire Resistive
Light transmission	80%
Touch Interface	USB

Computing Platform

CPU	Onboard Intel® Atom™ D525 Dual-Core 1.8GHz CPU
System Chipset	Intel® ICH8-M
System Memory	Onboard 1GB Up to 2GB & One 204-pin SODIMM Support Up to 4GB DDR3 800 SDRAM
SSD	One CF Socket Supports Type I/II Compact Flash Card
Watchdog Timer	Reset: 1 ~ 255min. and 1sec. or 1min./step
H/W Status Monitor	Monitoring System Temperature, Voltage, with Auto Throttling Control
HDD Driver Bay	One 2.5” SATA HDD/ SSD
WiFi	Optional USB or Mini PCIe WiFi module
Expansion Interface	1 x Mini PCIe Slot

Rear Panel I/O

COM	1 x RS-232
LAN	1 x RJ-45 (Intel® 82574L Gigabit Ethernet, Optional Dual 82574L Gigabit Ethernet)
VGA / YPbPr	1 x DB-15
Audio	1 x Line-out (Realtek ALC888 supports 5.1-CH Audio)
USB	2 x USB 2.0
Mouse & K/B	1 x PS/2 KB & MS
Speaker	2 x 2W

Environment & Mechanical

Color	Front & Rear Panel Black (Plastics)
Mounting	Wall/ Stand/ VESA 100mm X 100mm
System Power Requirement	+12 ~ 28V DC Power Input
Power Adapter	Input: 100 ~ 250VAC/ 47 ~ 63Hz; Output: 60W Adapter (12V @ 5A Adapter)
Power Input	100 ~ 250 Vdc/ 47 ~ 63Hz
Power Output	+12Vdc/ 5A (60W)
Operating Temperature	0 ~ 40°C (32 ~ 104°F)
Storage Temperature	-10 ~ 50°C (14 ~ 122°F)
Relative Humidity	0% ~ 90% Relative Humidity, Non-condensing
Dimension (W x D x H)	340mm x 285mm x 53mm
Weight	2.79Kgs

* Product specifications are subject to change without notice.
