42U Server Rack Cabinet Enclosures w/ side panels 42" deep (Model: GR6042C)

42U Server Rack Cabinet Enclosures w/ side panels 42" deep (Model: GR6042C)
  • Standard Package
  • Basic Frame
  • Fan Top
  • Swing Handle Lock
  • Packing Step 1
  • Packing Step 2
  • Packing Step 3
  • Packing Step 4
  • Packing Step 5
  • Packing Step 6
  • Packing Step 7
  • Packing Step 8
  • Packing Step 9
  • Packing Step 10

42U Server Rack Cabinet Enclosures w/ side panels 42" deep (Model: GR6042C)

Inquiry/Quote Request
GR6042C
  • Overview
  • Specifications
  • Download
Product Discontinued. Contact us at Info@iTechLCD.com for Replace items.

GR 6942C Ultra Rack GR Series
FEATURES
42U 42 " Deep Server Rack Enclosure w/ two side panels Black
80"H x 24"W x 42 "D
Perforated Roof Top Features Four 5.5" x 2" cutouts for cable entry
Guaranteed Compatibility w/Dell, HP, SUN & IBM
Heavy duty framework holds 1300lbs
Unit Markings at front & Rear
Includes Caster base and Leveling feet

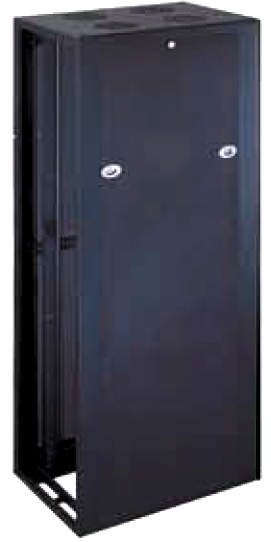

GR6942 Standard Package shown

ultrarack
Compatibility Critical Advance Cooling   Safe Environment
    Compatibility
Description
Universal Storage
The GR Series rack provides an ideal equipment enclosure, environment, designed around universal standards, for the compatible mounting of both OEM manufactured servers, from the leading vendors such as IBM, HP, Dell and Sun , as well as all 19" rack mountable solutions.
Manufacturer Series
AppleTM XserveTM
DELLTM PowerEdgeTM
DELLTM PowerVaultTM
HPTM ProLiantTM
IBMTM xSeriesTM
SUNTM Sun Fire TM
SUNTM Sun Fire Blade TM
SUN TM
Sun Fire TM Server
(V120 shown)
IBM TM
xSeries TM
(x305 shown)
DELL TM
PowerEdge TM
(2600 shown)
    Critical Advance Cooling
Description
GR Series provides advance storage flexibility while ensuring that versatile cooling requirements are fully catered to meet these emerging thermal challenges.
GR Series achieves significant cooling efficiency through a number of outstanding design and engineering features. The expanded steel design of all enclosure doors give 80% perforated area that ensures the ultimate air pattern and flow

Photograph

Fan Top

Perforated Top
Side Panels and Frame

    Safe Environment
Safety
Safety is the Key Concern for enclosures and data center environments. The GR Series provides high and structural stability, provides high end structural stability, tested through sequential loading, ensure it provides a safe working environment. For ease of installation and transport the GR series has heavy duty rated castors and is static load rated to 500 kgs.

Restricting Access:
GR Series offers high secure solutions for access management. These include a key lockable front door, rear door, and side panels as well as top cover. These locks can be keyed identically or with different keys allowing you to manage security levels.

Photographs

Heavy Duty Framework
Overhead Cable Access

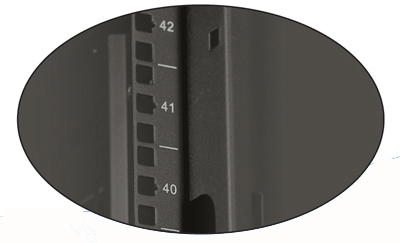

Unit Markings
Specification
Color Black
Product Height 2020 mm / 80"
Product Width 600  mm / 24"
Product Length 1075 mm/ 42 "
Internal Length 1000 mm / 39"
Industry Standards EIA RS310-C
Internal Rack Height 42U
Weight Capacity 1300 lb [590 kg]
External height 80 inches
Internal width 19 inches
External width 24 inches
Internal depth 39 inches
External depth 42 inches
Shipping dimensions 84.5H x 26.5W x 44D inches
Shipping (Package) Weight 225 lb [102.27 kg]
Key Lock Yes
Package Contents
  • Black 42Ux38" GR6942C Server Cabinet with side panels
  • 1 set of keys for side panels
  • Bag of 50 cage nuts, 50 mounting screws
  • Vented ceiling panel
  • "L" Shaped Mounting Rails
  • CastersLevelers
  • Grounding Cables x 5
  • Unit Marking at Front and Rear Mounting angles
    		•

        Package Option
    Photographs

    Package Options
    • Standard Package - Full Set
    • Package A -  Basic Frame : w/o doors and side panels
    • Package B -  Basic Frame + Doors : w/o side panels
    • Package C -  Basic Frame + Side Panel : w/o doors
    Packing Form
    • Individual Packing, Kit of 3 Packing and Assembly Packing available.
    • Kit of three packing bundles with toughened paper pallet ensures excellent stability.
    • Ideal for overseas transportation
    • Better safety and protection can be provided



    Model No. Width Depth Height
      Overall Effective Overall Effective
    mm inch mm inch mm inch mm inch mm inch
    GR-6617 17U 600 24'' 670 26'' 600 24'' 910 36'' 845 33''
    GR-6817 600 24'' 870 34'' 800 31'' 910 36'' 845 33''
    GR-6622 22U 600 24'' 670 26'' 600 24'' 1,132 45'' 1,067 42''
    GR-6822 600 24'' 870 34'' 800 31'' 1,132 45'' 1,067 42''
    GR-6627 27U 600 24'' 670 26'' 600 24'' 1,354 53'' 1,289 51''
    GR-6827 600 24'' 870 34'' 800 31'' 1,354 53'' 1,289 51''
    GR-6637 37U 600 24'' 670 26'' 600 24'' 1,798 71'' 1,733 68''
    GR-6837 600 24'' 870 34'' 800 31'' 1,798 71'' 1,733 68''
    GR-6937 600 24'' 970 38'' 900 35'' 1,798 71'' 1,733 68''
    GR-6642 42U 600 24'' 670 26'' 600 24'' 2,020 80'' 1,955 77''
    GR-6842 600 24'' 870 34'' 800 31'' 2,020 80'' 1,955 77''
    GR-6942 600 24'' 970 42'' 900 39'' 2,020 80'' 1,955 77''
