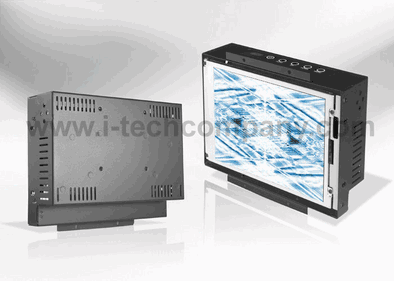

Panel Mount, 8.4" LCD monitor, 800 x 600, 350 nits, LED Backlight (Model: EPM840L-IP)

Panel Mount, 8.4" LCD monitor, 800 x 600, 350 nits, LED Backlight (Model: EPM840L-IP)

Panel Mount, 8.4" LCD monitor, 800 x 600, 350 nits, LED Backlight (Model: EPM840L-IP)

Inquiry/Quote Request
EPM840L-IP
  • Overview
  • Download

Features:
  • Modularize mechanical design provides flexible product configuration and easy maintenance
  • VGA connector with optional AV.SV.AV-Looping Optional
  • Optional build-in touch screen for interactive application
  • Available with auto-brightness sensor offers application in day and night
  • Complete custom design/solution for OEM customer

Specifications:

Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspect Ratio / Size 4:3/ 84" viewable diagonal area
Active Area / Pixel Pitch 170.4(H) x 127.8(V) mm / 0.213(H) x 0.213(V) mm
Native Resolution / Colors 800(H) x 600(V) / 262 K
Brightness / Contrast 350 cd/m2 (typ) / 400 : 1
Response Time ^ 35 ms
Viewing Angle (typical) H. 140° (- 70° ~ + 70°) , V. 120°(- 60° ~ + 60°)
Light Source CCFL , Long life, 50,000 hrs (typ)
Input Sources PC System Signal Analog RGB (0.7/1.0 Vp.p, 75 ohms)
Sync Separate Sync, Composite Sync, Sync On Green
Frequency Fh: 30 - 82Khz , Fv: 50 -75Hz
Audio System 2W Amplifier
Input Terminals 1 x VGA (15 Pin Female D-Sub), 1 x PC Audio (Stereo Headphone Jack), 1 x DC Power Plug
Convenient Features Auto Calibration , Back Light Adjustment, Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA 75 x 75 mm)
Power External AC-to-12VDC power adapter with universal / Auto-Sensing, AC 90 to 260V, 50 / 60 Hz
Power Consumption Operation / Power Saving 16 watt, < 2 watt (Support DPMS)
Operating Condition Temperature / Humidity 0°C ~ 50°C (32°F ~ 122°F), 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity - 20°C ~ 60°C (- 4°F ~ 140°F), 10% ~ 90% (no condensation)
Certification   FCC,CE
Dimensions Physical With Flanges(W x H x D): 216.0 x 173.0(Screw center-to-center) x 59.0
Without Flanges(W x H x D): 216.0 x 161.0 x 59.0 (mm)
Carton W x H x D = 325 x 330 x 135 mm
Weight N.W. / G.W. 2.5 Kgs / 3.5 Kgs
Container Loaded 20ft / 40ft / 40ft HQ TBD (Sets , By pallet)

Options Touch Video / TV Enhanced Panel Others
Resistive (With glass) SV + AV Panel with LED backlight Digital Signage(Stand alone)
Capacitive SV + AV + AV Looping High brightness panel Networking Digital Signage
SAW SV + AV + TV Wide Temperature Motion Sensor
Infrarded   Sun Light Readable Light Sensor
      Auto-Dimming
