10.4" Open Frame Touch Screen Monitor USB Controller and Metal Bracket with Flaps (Model:COP1000-TRB)
- Overview
- Download

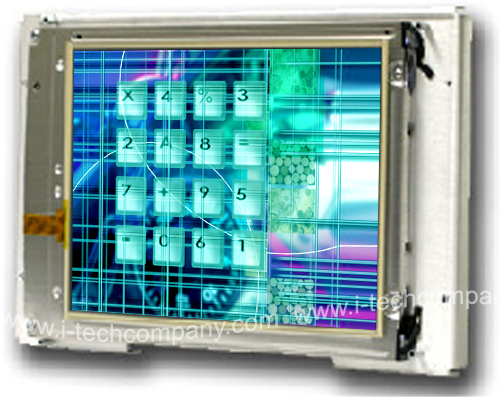

10.4" Open Frame Touch Screen Monitor USB Controller and Metal Bracket with Flaps (Model:COP1000-TRB)
X
Inquiry/Quote Request
Product discontinues. Contact us at Info@iTechLCD.com for replacement item.
(This product is Non-Returnable)
COP1000 is an Industrial open-frame, LCD touch screen monitor utilizing a 10.4" diagonal color TFT LCD as display panel and a resistive touchscreen as input device. Open Frame Touch screen communication to CPU is RS232 or USB. Video input is VGA. Our added value services include integration of other types of Open frame touch lcd screen panel display such as digital resistive, eight-wire analog as well as add-ons such as environmental gaskets, anti-vandalism overlays and EMI/ESD shielding. Please contact our sales department for our custom packaging services. Optional 12VDC power supply with appropriate connectors is available and recommended.
| Open Frame Touch Screen Display Specifications | |
| Display Size | 10.4" [26 mm] |
| Brightness | 300 cd/m² |
| Contrast Ratio | 100 : 1 |
| Dot Format (H x V) | 640 x RGB x 480 |
| Dot Pitch (H x V) | 0.011 x 0.33 mm |
| Active Area (H x V) | 211.2 x 158.4 mm |
| Color | 262 144 |
| Input Signal | VGA |
| Viewing Direction | 6:00 |
| Backlight Type | 2CCFT(E) |
| Outline Dimension (W x H x D) | 265.0 x 195.0 x 11.0 mm |
| Weight | 635 g |
| Power Consumption | 7.4 W |
| Operating Temperature | 0° to +55° C |
| Storage Temperature | -25° to +70° C |
Open Frame Data Sheet
Installation Manual
Click for download driver
 |
Data Sheet |
Installation Manual
| Windows | Mac | Linux | ||||||||||||||
|
|
|
