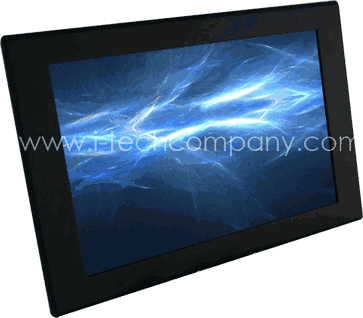

24" Panel Mount Widescreen LCD Monitor VGA, Optional AV inputs, Touch Screen in Panel Mount 24" LCD display (Model: WPMW2400S1)

24" Panel Mount Widescreen LCD Monitor VGA, Optional AV inputs, Touch Screen in Panel Mount 24" LCD display (Model: WPMW2400S1)
  • Front View
  • ISO Front View
  • Rear View
  • OSD
  • Fan
  • Accessories

24" Panel Mount Widescreen LCD Monitor VGA, Optional AV inputs, Touch Screen in Panel Mount 24" LCD display (Model: WPMW2400S1)

WPMW2400S1
  • Overview
  • Download
Product discontinues. Contact us at Info@iTechLCD.com for replacement item.
Specification
Model Name WPMW2400S1

Screen Size 24"(16:9)

Active Display Area (mm) 518.4 (H) x 324.0 (V)

Pixel Pitch (mm) 0.270 (H) x 0.270 (V)

Display Resolution (pixel) 1920x1200

Contrast Ratio 1000:1 (typ.)

Display Color 16.7M (8bits/color)

Brightness (CD/m^2) 500 (typ.)

Viewing Angles (CR >=10) -89~89 (H); -89~89 (V)

Synchronization Range_Horizontal / Vertical 31.5~80.0KHz / 60~75Hz

Recommended Resolution 1920x1200 @60Hz

Signal Connector 15 pin D-sub

Power Source AC 100~240 V,Universal,±10%

Power Consumption 150 W typical, normal operation

Power Management VESA DPMS Compliant

Plug & Play VESA DDC 1/2B

Video Input (optional) S-Video,Composite

DVI Input (optional) YES

Support Video Signal Type NTSC/PAL

Optional Touch Screen SAW

Remark: WPMW2400S1 = VGA input only
              WPMW2400S1AV= VGA + Video input
*Due to Panel material's deviation, different panel supplier will set different specific variance range to optical characteristics. The factors of time used, Lamp current, Ambient temperature will influence the optical measurements.
