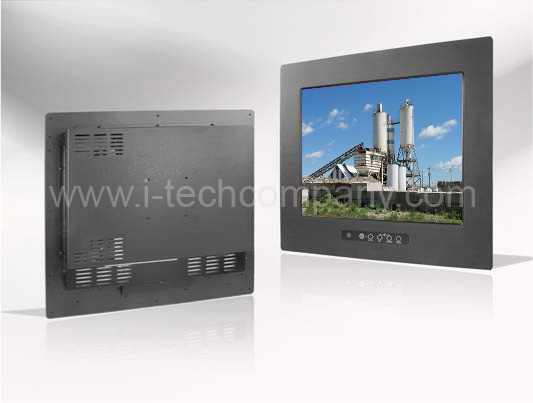

Panel Mount (Metal-5mm), 15" LCD monitor, 1024 x 768, 450 nits VGA Input, Front OSD, including rear screw/Clamp/VESA Mount (Model: EPMF1500HB)

Panel Mount (Metal-5mm), 15" LCD monitor, 1024 x 768, 450 nits VGA Input, Front OSD, including rear screw/Clamp/VESA Mount (Model: EPMF1500HB)

Panel Mount (Metal-5mm), 15" LCD monitor, 1024 x 768, 450 nits VGA Input, Front OSD, including rear screw/Clamp/VESA Mount (Model: EPMF1500HB)

Inquiry/Quote Request
EPMF1500HB
  • Overview
  • Download
EPM Series: Industrial Panel Mount Metal Housing LCD Monitor (Optional Integrated Touchscreen/Front IP65/NEMA4x/Front Stainless steel bezel and more..)


Features Highlights:
  • 1. Metal 5mm Panel Mount for easy installation with stud mount and Clamps mount (Optional for Front AR Glass or Vandal Resistant glass)
  • 2. Optional for Resistive/ Capacitive/ SAW/ IR/ Projective Capacitive Touch screen
  • 3. Auto Video Signal ON / OFF Auto Always Power On
  • 4. Optional Stainless steel Bezel 3mm thick.
  • 5. Optional Integrated IP65 Front Panel Mount with water proof sealed Gasket

  • 1. Side OSD buttons can prevent unnecessary setting changes.
  • 2. VESA Mounting Hole Pattern
  • 3. Reliable built-in Power supply for 15" or above (Optional for 9-36V DC input)
  • 4. Standard VGA Input (Optional for DVI. HDMI, AV, BNC, AV looping and SDI)
  • 5. Optional for RS232 Remote Control Protocol: Command Code to set system

Features:
  • Modularize mechanical design provides flexible product configuration and easy maintenance
  • VGA connector with optional AV.SV.AV-Looping
  • Complete custom design/solution for OEM customers
  • Available with auto-brightness sensor offers application in day and night
  • Optional build-in touch screen for interactive application

Specifications:

Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspect Ratio / Size 4:3 / 15" viewable diagonal area
Active Area / Pixel Pitch 304.13(H) x 228.10(V) mm / 0.297(H) x 0.297(V) mm

Native Resolution / Colors

 1024(H) x768(V) / 16.2 Million
Brightness / Contrast 450 cd/m2 (typ) / 500 :1
Response Time ^ 12 ms
Viewing Angle (typical) H. 130° (- 65° ~ + 65°) , V 100°(- 55° ~ + 45°)
Light Source CCFL , Long life, 50,000 hrs (typ)
Input Sources PC System Signal Analog RGB (0.7/1.0 Vp.p, 75 ohms)
Sync Separate Sync, Composite Sync, Sync On Green
Frequency Fh: 30 - 82Khz , Fv: 50 -75Hz
Audio System 2W Speaker x 2
Input Terminals 1 x VGA (15 Pin Female D-Sub), 1 x PC Audio (Stereo Headphone Jack), 1 x AC Inlet
Convenient Features Auto Calibration , Back Light Adjustment, Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA 75 x 75 mm)
Power Internal power supply with universal / Auto-Sensing, AC 90 to 260V, 50 / 60 Hz
Power Consumption Operation / Power Saving 20 watt, < 2 watt (Support DPMS)
Operating Condition Temperature / Humidity 0°C ~ 50°C (32°F ~ 122°F), 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity - 20°C ~ 60°C (- 4°F ~ 140°F), 10% ~ 90% (no condensation)
Certification   FCC,CE
Dimensions Physical WxHxD = 410.0x 355.0 x 64.0 mm
Carton W x H x D = 419 x 380 x 142 mm
Weight N.W. / G.W. 5.0 Kgs / 6.0 Kgs
Container Loaded 20ft / 40ft / 40ft HQ TBD (Sets , By pallet)

Options Touch Video/TV Enhanced Panel Others
Resistive touch SV + AV Panel with LED backlight Digital Signage(Stand alone)
Capacitive touch

SV + AV + AV_Looping

 High brightness panel Networking Digital Signage
SAW touch SV + AV + TV Wide Temperature Motion Sensor
Infrared touch   Sunlight Readable Light Sensor
Protected glass     Auto-Dimming


Diagram:



Clamp Mount (Optional)



LCD Options
  LED Backlight

Introducing LED backlight options for monitors for energy efficiency and a brighter screen.
The benefits of LED-backlit LCDs include:
  • Longer operating life
  • Low power consumption
  • Environmental friendliness (Mercury [Hg] free)
  • Greater resistance to mechanical shock (no glass tubes)
  • Quicker illumination to stable brightness
  • Wide dimming ratio (to <1%)
  • Reduction of electronic noise (low DC drive voltage)

  TouchScreen

Our LCD has a wide selection option to choose which touchscreen.technology suits for you.

Four-Wire
Resistive
Five-Wire Resistive
Pen Touch
Capacitive
Surface Wave(Saw)
Infrared Touch (Ir)
PRODUCT SIZE 1.7" - 24" 10.4" - 24" 15" - 19" 12" - 24" 10.4" - 30" 10.4" - 42"
TOUCH LIFE 1 - 2 million
touches		 30 - 35million
touches		 100 million
touches		 100 million
touches		 50 million
touches		 Long-term reliability
SCRATCH RESISTANCE Hard Coated Hard Coated Hard Coated
(SiO˛)		 Hard Coated
(SiO˛)		 Glass Overlay
Moh's hardness rating of 7		 Glass Overlay
Moh's hardness rating of 7
CONTAMINANT RESISTANCE Resists moisture, dirt, vinegar, ammonia based food products and cleansers Resists moisture, dirt, vinegar, ammonia based food products and cleansers Resists moisture, dirt, vinegar, ammonia based food products and cleansers Resists moisture, dirt, vinegar, ammonia based food products and cleansers Resists moisture, dirt, vinegar, ammonia based food products and cleansers Resists moisture, dirt, vinegar, ammonia based food products and cleansers
INPUT METHOD Finger, Gloved Hand, Stylus Finger, Gloved Hand, Stylus Stylus Pen Finger Finger, Gloved Hand, Soft pliable stylus Finger, Gloved Hand, Stylus
CONTROLLER USB, RS232 USB, RS232 USB, RS232 USB, RS232 USB, RS232 USB, RS232



  VIDEO Input

For Video inputs options:
  • DVI
  • DVI+HDMI
  • SVideo+AV
  • SVideo+AV+DVI
  • AV+Looping
  • DVI+AV+Looping
  • HD-SDI



  Optical Bonding

  • Optical Bonding provides the best reduction of ambient light washout of any commercially available enhancement technology.
  • Optical Bonding has a lower cost than most other competing technologies.
  • Optical Bonding offers superior ruggedization, enhancing the display durability under vibration, shock and other environmental extremes.



  RS-232 Remote Control

RS-232 Option for LCD/LED monitors.




  9-36V DC Input

iTech offers a selection of DC input from 9V to 36V.



  Light Sensor and Motion Sensor

iTech LCD offers Light and Motion Sensor
