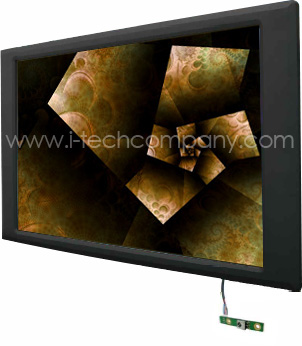

Panel Mount customized 20" LCD TV/PC/Video/Audio (Model: WPMV2000A3)

Panel
Model Name	WPMV2000A3

Type	20.1" color active matrix TFT LCD

Active Display Area(mm)	443.61 (H) x 249.41 (V)

Pixel Pitch(mm)	0.325 (H) x 0.325 (V)

Number of pixels	1366 x 768

Contrast Ratio	600:1 (typ.)

Display Color	16.2M (6bits+FRC)

Brightness	450 (typ.)

Viewing Angles	-80~80 (H); -60~80 (V)

Response Time	8ms

Input Specification
TV	1x F(or IEC) connector for ANTENNA or CATV signal

Video	1x Composite(RCA) 1x S-video(4 pin Mini-DIN)

PC	RGB analog 15 pin D-sub

RGB Frequency	H:31.5~80kHz, V:60~75Hz

Audio	1x 3.5mm stereo phone jack

Digial	DVI-D

Tuner	NTSC or PAL

AUDIO OUT Specification
Speakers	2x2Watt

POWER Specification
Voltage Consumption	AC 100~240V,Universal,±10% 71 W typical, normal operation

CONTROL FUNCTIONS
Basic	Power, Volume +/-, Channel +/-, Source, Menu

TV Mode	MTS, TV/CATV, Auto Scan, Channel Memory, Channel Delete, Last Channel Recall, Timer for sleep(optional)

PC Mode	Brightness, Contrast, Color Temperature, Gamma, Scaling, Auto Adjust, Phase, Clock, Position, Auto color, PIP/POP,Reset

Video Mode	Brightness, Contrast, Scaling, Hue,Saturation, Sharpness, Color Temperature, PIP/POP,Reset

Audio	Volume, Bass, Treble, Balance, Mute

OPERATING CONDITIONS
Temperature Humidity	0-50°C 5-90%(non-condensing)
