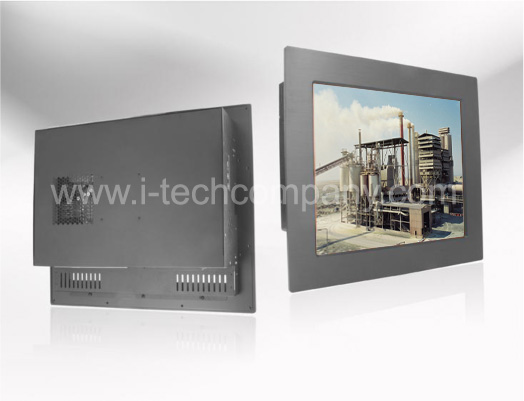

Features

• 15" LCD panel, 1024 x 768, 350 nits
• Intel® Core™ i5 Processor
• Intel® QM57
• 2 x DDR3 SO-DIMM Up to 8GB 800/1066 MHz SDRAM
• 1 x VGA, 1 x DVI, 6 x USB, 2 x COM, 2 x LAN
• 1 x PS2, Mic-in, Line-in, Line-out

Specifications



Panel	Cell Type / Glass Surface	TFT LCD / Black Anti-Glare, low reflection coating
	Aspec Ratio / Size	4 : 3 / 15" viewable diagonal area
	Active Area / Pixel Pitch	304.13(H) x 228.10(V) mm / 0.297(H) x 0.297(V) mm
	Native Resolution / Color	1024(H) x 768(V) / 16.2 Million
	Brignthess / Contrast	350 cd/㎡ (typ) / 1500 : 1
	Response Time	≦ 35 ms
	Viewing Angle (Typical)	H. 170° (- 85° ~ + 85°) , V. 170°(- 85° ~ + 85°)
	Light Source	LED, Long life, 35,000 hrs (typ)
System	CPU	Intel® Core™ i5 Processor; FSB 1066MHz
	BIOS	AMI
	System / Graphic Chipset	Intel® QM57 / HD Graphics Integrated
	System Memory	2 x DDR3 SO-DIMM Up to 8GB 800/1066 MHz SDRAM
	HDD	6 x SATA
	I/O Ports	1 x VGA, 1 x DVI
		6 x USB
		2 x COM
		2 x LAN
		1x(K/B and Mouse)
		Mic-in, Line-in, Line-out
	Expension	1 x Mini PCI-e
Power	Power Input	24V DC-IN (4-Din Connector)
	Power Consumption	60 Watt, <1 Watt
Environmental	Operating Temperature	﹣30℃~80℃ (-22°F~176°F), 10%~90% (non condensation)
	Operating Humidity	0%~95%(non-condensing)

Options	Touch	Enhanced Pane	Other
	Resistive(With Glass)	High Brightness Panel	WiFi	Networking Digital Signage
	Capactive	Panel-LED Backlight	3G	Web Cam
	SAW	Wide Temperature	Bluetooth	Motion Sensor
		Wide Viewing Angle	RFID	Auto LightSensor
		Sunlight Readable		Auto-Dimming
