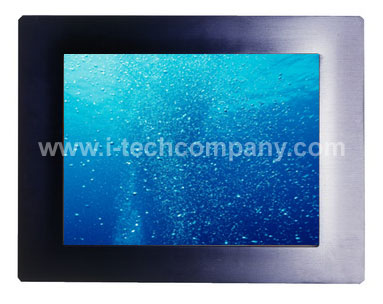

15" Panel PC w/Touch Sbreen, Intel Core duo T2450 2.0Ghz CPU,HS-1750, 945GME MiTX, 180W P/S,1xPCI extension slot (Model: BES1500-CD1)

15" Panel PC w/Touch Sbreen, Intel Core duo T2450 2.0Ghz CPU,HS-1750, 945GME MiTX, 180W P/S,1xPCI extension slot (Model: BES1500-CD1)

15" Panel PC w/Touch Sbreen, Intel Core duo T2450 2.0Ghz CPU,HS-1750, 945GME MiTX, 180W P/S,1xPCI extension slot (Model: BES1500-CD1)

Inquiry/Quote Request
BES1500-CD1
  • Overview
  • Download

Features

• Aluminum front panel design
• 15" TFT color panel display
• Built-in touch screen, 180W ATX P/S
• BES1500-CD1 w/HS-1750, provides Intel® Core™ Duo processor, 4 x COM, 6 x USB2.0,
DVI display, PCI expansion slot
• Onboard graphics, dual GB ethernet, audio controller
• 1 x 2.5" HDD space, 1 x slim CD-ROM space
• 3 x 4cm ball bearing cooling fan
• Option for Wireless LAN module



Display

LCD Size:
15"
Max Resolution:
1024 x 768 pixels
Brightness (cd/m²):
350 nit (Typ.) @ 6.5mA
Contrast Ratio:
550:1
LCD Color:
26.2M (6-bit + FRC for R,G,B)
Pixel Pitch (mm):
0.297 x 0.297
Touch Screen:
15" resistive

Mechanical

Thermal System:
3 x 4cm ball bearing cooling fan
Dimensions (LxHxW):
42.0 x 33.0 x 8.79 cm
Cut Out Size (LxH):
38.4 x 29.4 cm
Operation/Storage Temperature:
0~+45 degrees C/-20~+70 degrees C
EMC:
FCC/CE
Front Panel Protection:
IP65 compliance
Power Supply:
100~240V AC in 180W ATX power supply

System

SBC Model:
HS-1750
CPU:
Intel® Core™ Duo T2050 processor (option)
BIOS:
Award BIOS with 4Mb Flash EEPROM
System Chipset:
Intel® 945GME/ICH7-M
System Memory:
2 x 200-pin SO-DIMM socket up to 4GB DDR2 SDRAM
Display Chipset:
CRT: Intel® 945GME
DVI: Chrontel CH7307
Audio Chipset:
RealTek ALC655 5.1CH audio codec
Ethernet Chipset:
Dual Marvell 88E8053 10/100/1000 Mbps LAN
Provides Wireless LAN module (option)
Drive Bay:
1 x 2.5" HDD space
1 x Slim CD-ROM space
Watchdog Timer:
Reset: 1 sec.~255 min. and 1 sec. or 1 min./step
Expansion:
1 x Standard PCI expansion slot
External I/O:
6 x USB2.0, 4 x COM, 2 x LAN, PS/2 KB, PS/2 MS, VGA, MIC In, Line Out, Line In, DVI
Rear I/O:
