Plastic case, 10.4" LCD monitor, 1024 x 768, 400 nits w/ Resistive touch screen with USB Controller (Model: EP1040A-TR)

Plastic case, 10.4" LCD monitor, 1024 x 768, 400 nits w/ Resistive touch screen with USB Controller (Model: EP1040A-TR)

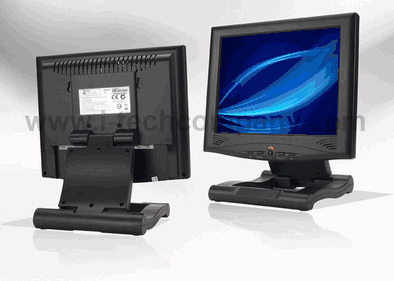

  • Front View
  • Front View
  • Front View
  • Side View
  • Side View
  • Back View
  • Accessories View

Plastic case, 10.4" LCD monitor, 1024 x 768, 400 nits w/ Resistive touch screen with USB Controller (Model: EP1040A-TR)

Inquiry/Quote Request
EP1040A-TR
  • Overview

Features:
  • Foldable stand adds flexibility and comfort to your viewing preferences.
  • The extra-small footprint creates more work space on the desk
  • Built-in sepakerfor multimedia application.
  • Provides sharp and brilliant images of text and graphics.

Specifications:

Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspect Ratio / Size 4:3/ 10.4" viewable diagonal area
Active Area / Pixel Pitch 210.4(H) x 157.8(V) mm / 0.2055(H) x 0.2055(V) mm
Native Resolution / Colors 1024(H) x768(V) / 16.2 M
Brightness / Contrast 400 cd/m2 (typ) / 1200 : 1
Response Time ^ 25 ms
Viewing Angle (typical) H. 176° (- 88° ~ + 88°) , V. 176°(- 88° ~ + 88°)
Light Source CCFL , Long life, 50,000 hrs (typ)
Input Sources PC System Signal Analog RGB (0.7/1.0 Vp.p, 75 ohms)
Sync Separate Sync, Composite Sync, Sync On Green
Frequency Fh: 30 - 82Khz , Fv: 50 -75Hz
Audio System 2W speaker x 2
Input Terminals 1 x VGA (15 Pin Female D-Sub), 1 x PC Audio (Stereo Headphone Jack), 1 x DC Power Plug
Convenient Features Auto Calibration , Back Light Adjustment, Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA 75 x 75 mm)
Power External AC-to-12VDC power adapter with universal / Auto-Sensing, AC 90 to 260V, 50 / 60 Hz
Power Consumption Operation / Power Saving 22 watt, < 2 watt (Support DPMS)
Operating Condition Temperature / Humidity 0°C ~ 50°C (32°F ~ 122°F), 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity - 20°C ~ 60°C (- 4°F ~ 140°F), 10% ~ 90% (no condensation)
Certification   FCC,CE
Dimensions Physical With Base(W x H x D): 264.0 x 262.2 x 187 mm
Without Base(W x H x D): 264.0 x 225.0 x 40.5 mm
Carton W x H x D = 325 x 330 x 135 mm
Weight N.W. / G.W. 3.0 Kgs / 4.0 Kgs
Container Loaded 20ft / 40ft / 40ft HQ TBD (Sets , By pallet)

Options Enhanced Panel Video / TV Others
Panel with LED backlight DVI Digital Signage(Stand alone)
High brightness panel HDMI Motion Sensor
Wide Temperature SV + AV + TV Light Sensor
Sun Light Readable   Auto-Dimming
