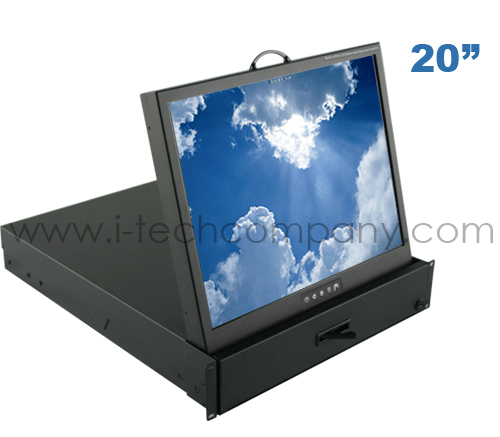

2U Rackmount LCD 20" Monitor Sliding Drawer (Model: NP220)

20" LCD Monitor Rack in 2U Rackmount Drawer Optional Composite, S-Video, DVI, BNC, Speakers & Touch Screen (Model: NP220)
  • Front View
  • ISO Front View
  • Side View
  • ISO Side View
  • Closed
  • Rear View
  • OSD
  • Rail
  • Accessories

20" LCD Monitor Rack in 2U Rackmount Drawer Optional Composite, S-Video, DVI, BNC, Speakers & Touch Screen (Model: NP220)

Inquiry/Quote Request
NP220
  • Overview
Product discontinues. Contact us at Info@iTechLCD.com for Replacement item.
Part No:  NP220, 20" Rack Mountable Pull-out Drawer LCD Panel Optional with Video input and TouchScreen
  • High Resolution 1600 x 1200
  • Bright 280 candle luminance
  • Optional Video and S-video inputs per monitor support NTSC/PAL auto recognition
  • Ultra-compact design fits in EIA standard rack 2U high
  • Key lock for secure transportation
Save rack space with our monitor in a drawer model NP220. A high-resolution 20.1" active matrix TFT display features CRT style viewing angles and is designed to collapse into a 2U high (3.5-inch) space when not in use. This model is often used in remote, ENG and EFP vehicles as a video and audio program monitor and provides large screen viewing of a video feed to a satellite uplink or for use with a laptop editing system. XGA/VGA, Y/C (S-Video) and composite inputs. All connections are accessed from the rear of the drawer enclosure. When the display is closed into the drawer, a keyed lock is provided for secure transport. Power supply and owners manual are included.

Monitor Power Supply
  • Panel
    20.1" LCD panel
  • Display type
    TFT/ LCD active matrix color
  • Resolutions
    1600 x 1200
  • Response time
    Tr=6ms/ Tf=10ms
  • Contrast ratio
    700 : 1 typical
  • Brightness
    280 cd/m2 typical
  • Pixel pitch
    0.255mm (H) x 0.255mm (W)
  • Panel color
    16.7 million display colors
  • Viewing angle
    178o (Horiz.)/ 178o (Vert.)
  • Storage temp.
    -25oC to 60oC
  • Operating temp.
    0oC to 50oC
  • MTBF
    20,000 hours
  • Remote adapter:
    110V - 220V AC input  12V 5A Output
  • Adapter Size:
    4.3"(L) x 2.4"(W) x 1.2"(H) inch, < 10.8(L) x 6.1 (W) x 3(H)cm>
  • Cable length from mains plug to adapter:
     6ft  (182cm)
  • Cable length from adapter to unit:
    6ft (180cm)
  • Safety approval:
    CE
  • Mains plug options available
  • Optional -48V DC input



 * Pricing does not reflect freight costs and applicable taxes and duties
