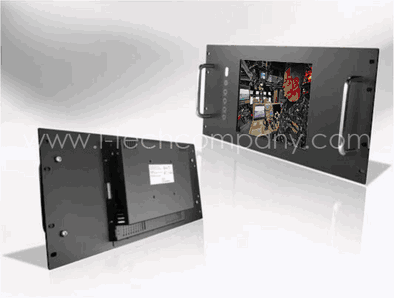

5U Rack Mount, 10.4" LCD monitor, 800x600, LED 350 nits, VGA input w/ Resistive Touch (Model: ERM1040-TR)

5U Rack Mount, 10.4" LCD monitor, 800x600, LED 350 nits, VGA input w/ Resistive touch screen with USB Controller (Model: ERM1040-TR)

5U Rack Mount, 10.4" LCD monitor, 800x600, LED 350 nits, VGA input w/ Resistive touch screen with USB Controller (Model: ERM1040-TR)

Inquiry/Quote Request
ERM1040-TR
  • Overview
  • Download

Features:
  • Modularize mechanical design provides flexible product confguration and easy maintenance
  • Optional build-in touch screen for interactive application
  • Available with auto-brightness sensor offers application in day and night
  • VGA connector with optional AV,SV,AV-Looping
  • Complete custom design/solution for OEM customers

Specifications:
Panel         Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low refection coating
Aspect Ratio / Size 4 : 3 / 10.4" viewable diagonal area
Active Area / Pixel Pitch 211.2(H) x 158.4(V) mm / 0.264(H) x 0.264(V) mm
Native Resolution / Colors 800(H) x 600(V) / 262 K
Brightness / Contrast 350 cd/m2 (typ) / 600 : 1
Response Time ≤ 35 ms
Viewing Angle (typical) H. 140o (- 70o ~ + 70o) , V. 120o(- 60o ~ + 60o)
Light Source LED backlight, Long life, 35,000 hrs (typ)
Input Sources     PC System Signal Analog RGB (0.7/1.0 Vp-p, 75 ohms)
  Sync Separate Sync, Composite Sync, Sync On Green
  Frequency Fh : 30 - 82Khz , Fv : 50 -75Hz
Audio System 2W speaker x 2
Input Terminals 1 x VGA (15 Pin Female D-Sub) , 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug
Convenient Features   Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
Power 12V DC in
Power Consumption Operation / Power Saving 9.375 watt , < 2 watt (Support DPMS)
Operating Condition Temperature / Humidity 0oC ~ 50oC (32oF ~ 122oF) , 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity - 20oC ~ 60oC (- 4oF ~ 140oF) , 10% ~ 90% (no condensation)
Certification   FCC , CE
Dimensions   Physical Please refer to Drawing
Carton W x H x D = TBD
Weight N.W. / G.W. 3.5 Kgs / 4.5 Kgs
Container Loaded 20ft / 40ft / 40ft HQ TBD (Sets , By pallet)

Options Touch Video / TV Enhanced Panel Others
Resistive (With glass) SV + AV Panel with LED backlight Digital Signage(Stand alone)
Capacitive

SV + AV + AV_Looping

High brightness panel Networking Digital Signage
SAW SV + AV + TV Wide Temperature Motion Sensor
    Sun Light Readable Light Sensor
      Auto-Dimming
