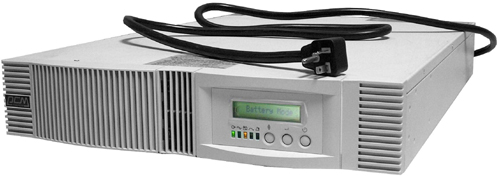

Rackmount Multi Function-Line UPS 3000VA (Model: OVP-3000-APRM)

Rackmount Multi Function-Line UPS 3000VA (Model: OVP-3000-APRM)

Rackmount Multi Function-Line UPS 3000VA (Model: OVP-3000-APRM)

OVP-3000-APRM
  • Overview
AC INPUT
AC Input Capacity on Battery 3000VA
AC Input Voltage 100V or 110V/120V/127V or 208V/220V/230V/240V
AC Input Frequency 50/60 Hz +/-0.5%

AC OUTPUT
AC Output Waveform Sinewave
AC Output Voltage 100V or 110V/120V/127V or 208V/220V/230V/240V +/-2%
AC Output Frequency 50/60 Hz +/-0.5%
AC Output Transfer 0 ms
AC Output Efficiency >95%
AC Output Hamonic distortion <3% of T.H.D. at linear load
AC Output Crest factor ratio 3 : 1

PROTECTION
Protection Spike 1015 Joules
Protection Surge Protection 120V (IEEE C62.41) / 230V (IEEE C61000-4-5 level 3)
Protection Overload Protection 125% for 1 minutes and 150% for 10 seconds
Protection Short Circuit UPS output cut off immediately or input fuse/circuit breaker protection

BATTERY
Battery Type sealed, maintenance-free lead acid batteries
Battery Typical Recharge time to 90% full: 4 hours
Battery Protection cut off without draining any current when battery is low

BACKUP TIME
Battery Backup Time Full Load 6 min
Battery Backup Time Half Load 15 min

PHYSICAL
Physical Weight kgs RM 32.5
Physical Weight lbs RM 71.5
Physical Shipping Weight kgs 35.7
Physical Shipping Weight lbs 78.5
Physical Dimension mm RM 428x635x84
Physical Dimension inch RM 16.9x25.0x3.3
Physical Input Inlet NEMA 5-15 (120V) / IEC 320 (230V)
Physical Receptacles NEMA 5-15 (120V) / IEC 320 (230V)

INDICATOR
Indicator LCD Input/output voltage, frequency, on-line mode, back up mode, battery capacity, load level

ALARM
Alarm Battery Backup Beep every 5 sec
Alarm UPS Fault Continuous beeping sound and LCD display

CONFORMANCE
Conformance Safety UL 1778, CE

INTERFACE
Interface RS-232 Serial Port & USB
Interface Option SNMP card

ENVIRONMENT
Environment Temperature -20 ~ 50C / -4 ~ 122F
Environment Humidity 0 - 95%, non-condensing
Environment Operation Temperature 0 - 40C / 32 - 104F
Environment Operation Elevation 3500 meters max
