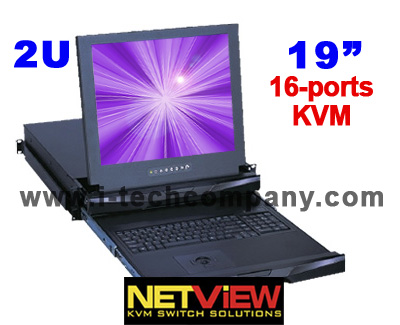

2U Rackmount 19" LCD keyboard w/16-ports KVM (Model: NVP219-1601)

2U Rack Mount LCD 19" Monitor Keyboard Drawer w/ 16-ports, w/ optional Touch Pad (Model: NVP219-1601e/NVP219-1601t) & Trackball (Model: NVP219-1601b/NVP219-1601d)
  • Front View
  • Front View
  • Side View
  • Side View
  • Keyboard

2U Rack Mount LCD 19" Monitor Keyboard Drawer w/ 16-ports, w/ optional Touch Pad (Model: NVP219-1601e/NVP219-1601t) & Trackball (Model: NVP219-1601b/NVP219-1601d)

Inquiry/Quote Request
NVP219-1601
  • Specifications
  • Download
Product discontinues NVP219 is EOL, Replaced by: NVP2419e or NVP2419b.

Product discontinues NVP217 is EOL, Replaced by: NVP2417e or NVP2417b.

Click here for Specification Click here for Specification

Specification
LCD
Panel Samsung 19" LCD Panel
Screen Type TFT
Display Area 386.4(H) x 289.8(V) mm
Contrast Ratio 700 : 1
Viewing Angle 170 ° (H) x 170 ° (V) (Typ.)
Resolution 1280 x 1024
Pixel pitch 0.242(H) x 0.242(W) mm
Response Time Tr=15ms, Tf=10ms (Typ.)
Brightness 250 cd/m2
Panel Color 16.7M
Back Light 4 CCFTs (Cold Cathode Fluorescent tube)
Video
Horizontal Synchronization 64 KHz (Max.)
Vertical Synchronization 60 Hz (Max.)
Input Signal Analog RGB 0.7Vp-p
Power Management
VESA DPMS
Control
OSD Control Brightness, Contrast, Colour, Clock, H.Position, V.Position, Phase, Scaling, Auto config, Input select, Multi window, Clear EEPROM, OSD adjust, Save

External Connection
Power Input 12V/5A DC adapter
Video Input 15-pin D-Sub connector
Dimension
Product dimension 44.2(W) x 8.8(H) x 60(D)cm
Packing dimension 73.5(L) x 57.5(W) x 18(H)cm
Diagram

PS/2 Single Console KVM Switch

Back to Top
Channel Port 8
16
PC Port Connector
(All Female Type)		 PS/2 Keyboard Mini Din 6 pin
PS/2 Mouse Mini Din 6 pin
VGA HDDB 15pin
Cascade Port Connector
(All Female Type)		 PS/2 Keyboard Mini Din 6 pin
PS/2 Mouse Mini Din 6 pin
VGA HDDB 15pin
Channel Port Connector
(All Female Type)		 HDDB 15 pin
Channel Port Connection
(Male to Male)		 HDDB 15 pin 3-in-1 Cable
PC selection On Screen Display Manual, Hot Key, Push Button
LED 1 Bank LED
4 / 8 / 16 Online Port LED (Green)
4 / 8 / 16 Selected Port LED (Red)
On Screen Display Control Yes
Scan Intervals 5~99 Sec.
Keyboard Emulation PS/2
Mouse Emulation PS/2
VGA Resolution 1920X1440
Bandwidth 200MHz
Cascade MAX Level 8 levels
MAX. PC Connection 116(4ports) / 120(8ports) / 128(16ports)
Housing Metal
Power Adapter DC 12V 1A
Operation Temperature 0~40 ℃
Storage Temperature -20 ~ 60 ℃
Humidity 0~80%, Non-Condensing

USB Single Console KVM Switch

Back to Top

8-Port
16-port
PC port
8
16
PC Port interface
HDDB 15 pin
N/A
PC Computer Interface USB port: Type A Female USB port: Type A Female
VGA : HDDB 15pin Female VGA : HDDB 15pin Female
KVM Cable Connection 2-in-one HDDB 15-pin KVM Cable (CB-6/ 10/ 15) 2-in-one HDDB 15-pin KVM Cable (CB-6/ 10/ 15)
PC Selection
On screen display menu, Hot key, Push button
LED
1 Bank LED
1 Bank LED
8 Online LED (Green)
16 Online LED (Green)
8 Selected LED (Green)
16 Selected LED (Green)
On screen display control
Yes
Scan intervals
5-99 seconds
Keyboard and mouse emulation
USB
VGA resolution (Max.)
1920 x 1440
1920 x 1440
CAT.5 cable length (Max.)
N/A
N/A
Bandwidth
200MHz
200MHz
Cascade Level (Max.)
8 Levels
Housing
Metal
Power Adapter
DC 12V 1A
DC 12V 1A
Operation Temperature
0~40 ℃
Humidity
0~80%, Non-Condensing


Ordering Information
Model no. Description
 Net / gross weight
NVP215 2U height, 15" TFT LCD monitor keyboard drawer
 11kg / 18kg
NVP215-801 2U height, 15" TFT LCD monitor keyboard drawer with 8 port KVM switch
 12kg / 20kg
NVP215-1601

 2U height, 15" TFT LCD monitor keyboard drawer with 16 port KVM switch
 13kg / 21kg
NVP217 2U height, 17" TFT LCD monitor
keyboard drawer
12.5kg / 19.5kg
NVP217-801 2U height, 17" TFT LCD monitor
keyboard drawer with 8 port KVM switch
13.5kg / 21.5kg
NVP217-1601

 2U height, 17" TFT LCD monitor
keyboard drawer with 16 port KVM switch
14.5kg / 22.5kg
NVP219 2U height, 19" TFT LCD monitor
keyboard drawer
19kg / 25kg
NVP219-801 2U height, 19" TFT LCD monitor
keyboard drawer with 16 port KVM switch
20kg / 26kg
NVP219-1601 2U height, 19" TFT LCD monitor
keyboard drawer with 16 port KVM switch
21kg / 27kg
