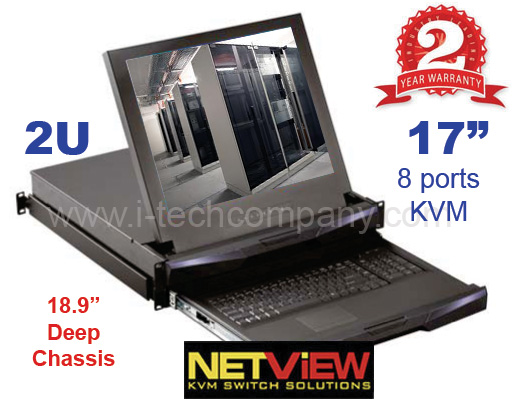

2U Rackmount 17" LCD keyboard w/ 8 port KVM (17" Deep only) (Model: NVP2417-801)

2U, 17" Rackmount TFT LCD monitor forward folding KVM keyboard w/ 8 port KVM-17" Depth only, w/ optional Touch Pad (Model: NVP2417-801e) & Trackball (Model: NVP2417-801b)
  • Front View
  • Front View
  • Side View
  • Side View
  • Keyboard

2U, 17" Rackmount TFT LCD monitor forward folding KVM keyboard w/ 8 port KVM-17" Depth only, w/ optional Touch Pad (Model: NVP2417-801e) & Trackball (Model: NVP2417-801b)

Inquiry/Quote Request
NVP2417-801
  • Overview
  • Specifications
  • Download
Part No.: NVP2417-801b
               NVP2417-801e
Video:

LCD Drawer & KVM Benefits:
  • 2U dual slide 17" or 19" LCD console drawer
  • 104-key keyboard with either touchpad or trackball
  • SUN Micro or MAC keyboard options available
  • Short depth design of 480mm ( 18.9" )
  • New enhanced aesthetics with molded front handle
  • Front USB port for device access ( USB Hub KVM only )
  • 2 post rack mounting available

Drawer Features & Options:
  • S-Video + Composite ( BNC ) or Audio input
  • HDMI or DVI-D ( either one )
  • 17" / 19" Touchscreen : Capacitive, Resistive
  • 48V, 24V or 12VDC power

Designed for:

Options:

BNC + S-Video DVI-D DC Power Audio Touchscreen

BNC + S-Video Audio

DVI-D Touchscreen - USB

DC Power Touchscreen - Serial

**With DC power option, the depth of NVP2415/2417/2419 will be extended from 480mm (18.9") to 530mm (20.9")

Monitor Grade A 17" or 19" industrial TFT LCD panel
LCD Specifications:

LCD Panel
Manufacturer
Diagonal size
17" TFT
19" TFT
Max. Resolution
1280 x 1024
1280 x 1024
Brightness (cd/m2)
250
250
Backlight
CCFL
CCFL
Colors
16.7M
16.7M
Contrast Ratio (typ)
1000 : 1
1000 : 1
Viewing Angle (H/V)
160° x 160°
160° x 160°
Active area (mm)
338 x 270
376 x 301
MTBF (hrs)
50,000
50,000
Signal input
VGA
VGA
Casing Color
Black ( RAL 9005 )
Weight ( Single console )
Net
20.4 kgs
( 44.9 lbs )
20.5 kgs
( 45.1 lbs )
Gross
24.8 kgs
( 54.6 lbs )
24.8 kgs
( 54.6 lbs )
Environmental
Operating
0 to 50°C Degree
Storage
-5 to 60°C Degree
Relative humidity
5~90%, non-condensing
Shock
10G acceleration ( 11 ms duration )
Vibration
5~500Hz 1G RMS random vibration
Regulatory
FCC, CE
Power
Input
Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption
Max. 48 Watt, Standby 5 Watt
Product Dimensions ( Single console )
Product
441.6 x 480 x 88 mm / 17.4 x 18.1 x 3.5 inch
Packing
584 x 616 x 216 mm / 23 x 24.3 x 8.5 inch


Console Cable:
NE-6
6 feet Combo KVM cable ( bundle )
- VGA + USB or PS/2, server end
- DB15 ( VGA, USB KB & MS ), console port


Keyboard Selection:

Supporting layouts



Dimensions:
Dimensions ( with KVM )
Product
441.6 x 480 x 88 mm / 17.4 x 18.9 x 3.5 inch
Packing
584 x 616 x 216 mm / 23 x 24.3 x 8.5 inch
Weight ( Net / Gross )
NVP2417
21.1 kgs ( 46.4 lbs ) / 27 kgs ( 59.4 lbs )
NVP2419
21.5 kgs ( 47.3 lbs ) / 27.4 kgs ( 60.3 lbs )
Casing Color
Black ( RAL 9005 )

KVM Integration:
(X) Stands for 17" or 19" LCD size
Matrix CAT6 KVM
Local
Remote
8-port
16-port
32-port
1
1
1
-
NVP241X - MC1116
NVP241X - MC1132
1
1
2
-
NVP241X - MC2116
NVP241X - MC2132
1
1
0
-
NVP241X - MC0116
NVP241X - MC0132
1
2
0
-
NVP241X - MC0216
NVP241X - MC0232
1
3
0
-
NVP241X - MC0316
NVP241X - MC0332

Combo CAT6 KVM
Local
Remote
8-port
16-port
32-port
1
0
1
NVP241X - CIP8
NVP241X - CIP16
NVP241X - CIP32
1
1
0
NVP241X - CCE8
NVP241X - CCE16
NVP241X - CCE32
1
0
0
NVP241X - C8
NVP241X - C16
NVP241X - C32
Cat6 KVM Dongle : IF-DUSB ( VGA-USB ) / IF-DPS2 ( VGA-PS/2 ) / IF-DUSBD ( DVI-USB )

Matrix DB-15 KVM
Local
Remote
8-port
16-port
32-port
1
1
1
NVP241X - M118
NVP241X - M1116
-
1
1
2
NVP241X - M218
NVP241X - M2116
-
1
1
0
NVP241X - M018
NVP241X - M0116
-
1
2
0
NVP241X - M028
NVP241X - M0216
-
1
3
0
NVP241X - M038
NVP241X - M0316
-

Combo DB-15 KVM
Local
Remote
8-port
16-port
32-port
1
0
1
NVP241XIP - 8
NVP241XIP - 16
-
1
1
0
NVP241X - CE8
NVP241X - CE16
-
1
0
0
NVP241X - S801
NVP241X - S1601
-
Combo DB-15 KVM Cable : NE-6 / 10 / 15 ( 6, 10 or 15 ft )

DVI-D KVM
Local
Remote
12-port
1
0
0
NVP241X - D12
DVI-D KVM Cable : NC-6 / 15 ( 6 or 15 ft )



Top
Click here for Specification Order Information
Click here to Compare all models

Specification
LCD
Panel Samsung 17" LCD Panel
Screen Type TFT
Display Area 337.92(H) x 270.34(V) mm
Contrast Ratio 500 : 1
Viewing Angle 140 ° (H) x 120 ° (V) (Typ.)
Resolution 1280 x 1024
Pixel pitch 0.264(H) x 0.264(W) mm
Response Time Tr=5ms, Tf=20ms (Typ.)
Brightness 300 cd/m2
Panel Color 16.2M
Back Light 4 CCFTs (Cold Cathode Fluorescent tube)
Video
Horizontal Synchronization 64 - 80 KHz (Typ.)
Vertical Synchronization 60 - 75 Hz (Typ.)
Input Signal Analog RGB 0.7Vp-p
Power Management
VESA DPMS
Control
OSD Control Brightness, Contrast, Colour, Clock, H.Position, V.Position, Phase, Scaling, Auto config, Input select, Multi window, Clear EEPROM, OSD adjust, Save

External Connection
Power Input 12V/5A DC adapter
Video Input 15-pin D-Sub connector
Dimension
Product dimension 48.2(W) x 8.8(H) x 44(D)cm
Packing dimension 59.5(L) x 57(W) x 22(H)cm
Diagram

PS/2 Single Console KVM Switch

Back to Top
Channel Port 8
16
PC Port Connector
(All Female Type)		 PS/2 Keyboard Mini Din 6 pin
PS/2 Mouse Mini Din 6 pin
VGA HDDB 15pin
Cascade Port Connector
(All Female Type)		 PS/2 Keyboard Mini Din 6 pin
PS/2 Mouse Mini Din 6 pin
VGA HDDB 15pin
Channel Port Connector
(All Female Type)		 HDDB 15 pin
Channel Port Connection
(Male to Male)		 HDDB 15 pin 3-in-1 Cable
PC selection On Screen Display Manual, Hot Key, Push Button
LED 1 Bank LED
4 / 8 / 16 Online Port LED (Green)
4 / 8 / 16 Selected Port LED (Red)
On Screen Display Control Yes
Scan Intervals 5~99 Sec.
Keyboard Emulation PS/2
Mouse Emulation PS/2
VGA Resolution 1920X1440
Bandwidth 200MHz
Cascade MAX Level 8 levels
MAX. PC Connection 116(4ports) / 120(8ports) / 128(16ports)
Housing Metal
Power Adapter DC 12V 1A
Operation Temperature 0~40 ℃
Storage Temperature -20 ~ 60 ℃
Humidity 0~80%, Non-Condensing

Ordering Information
KVM Support
15" LCD series
17" LCD series
19" LCD series
1-port
NVP2415 NVP2417 NVP2419
1-port
NVP2415U NVP2417U NVP2419U

Console
8-port
NVP2415-801 NVP2417-801 NVP2419-801
16-port
NVP2415-1601 NVP2417-1601 NVP2419-1601
8-port
 NVP2415-S801 NVP2417-S801 NVP2419-S801
16-port
 NVP2415-S1601 NVP2417-S1601 NVP2419-S1601

2 Consoles
Over CAT5
8-port
 NV2415-82 NV2417-82 NV2419-82
16-port
 NV2415-162 NV2417-162 NV2419-162
8-port
 NV2415-82U NV2417-82U NV2419-82U
16-port
 NV2415-162U NV2417-162U NV2419-162U

2 Consoles
Over IP
8-port
 NVIP2415-82 NVIP2417-82 NVIP2419-82
16-port
 NVIP2415-162 NVIP2417-162 NVIP2419-162
